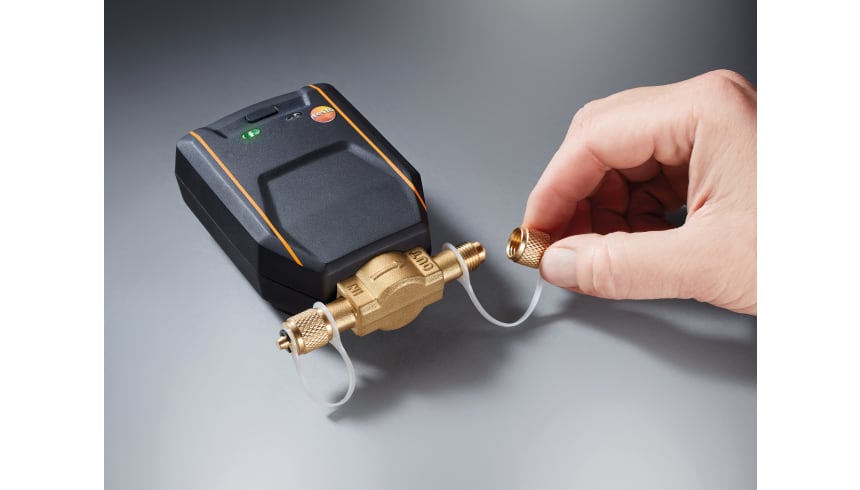

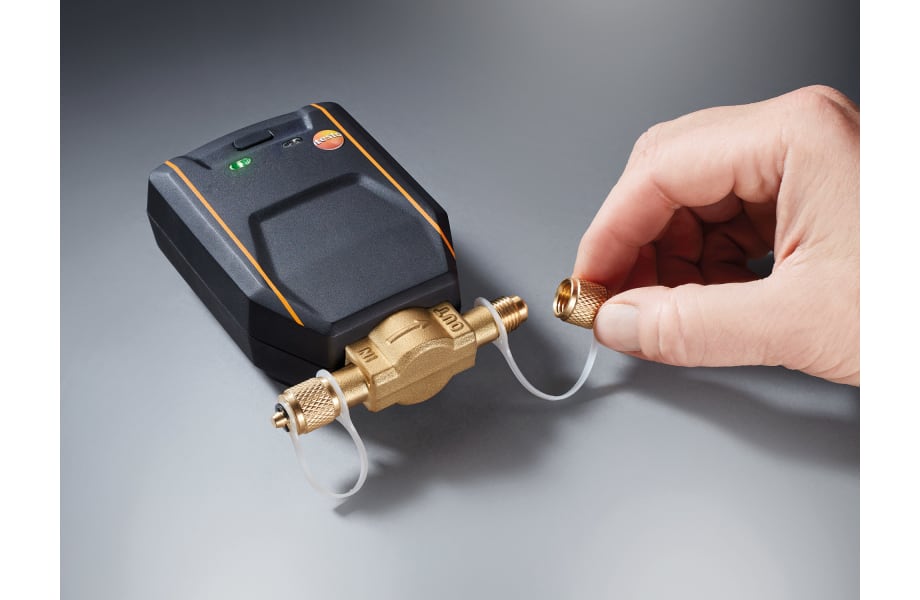

Refrigerant valve with Bluetooth - for digital refrigerant scale testo 560i

0560 5600
  • Automatic and precise refrigerant charging according to target superheat, subcooling and weight in combination with the digital refrigerant scale testo 560i (available separately or as a kit)
  • Wireless connection and operation with Testo manifolds and testo Smart App via Bluetooth®.
  • All measured values for the charging process at a glance in the manifold and App – with storage of the measured data in the App
  • Robust, handy and compact

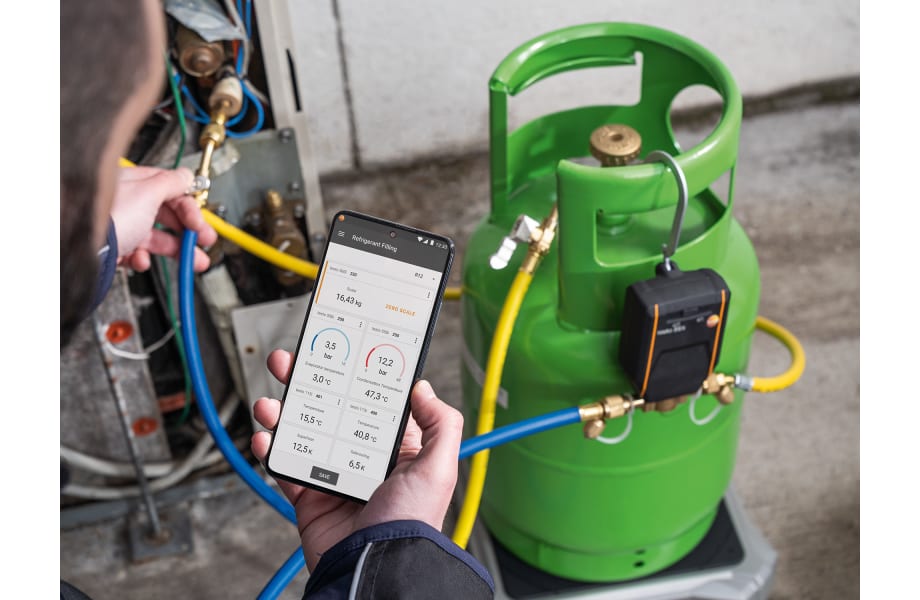

  • Charge refrigeration systems and heat pumps faster and more precisely: automatically with the testo 560i wireless refrigerant scale, the intelligent refrigerant valve, a digital manifold from Testo and the testo Smart App. So opt for the practical kit consisting of refrigerant valve and refrigerant scale testo 560i right away - and benefit from time savings and maximum precision.

    Fully automatic and precise charging of refrigeration systems and heat pumps: The intelligent refrigerant valve makes it possible - together with the separately available testo 560i refrigerant scale, a Testo manifold, Testo Smart Probes and the testo Smart App.

    • Intelligent Bluetooth valve for digital refrigerant scale testo 560i (available separately or as a kit) for automatic and precise refrigerant charging of refrigeration systems/heat pumps.
    • Easy operation via Testo manifold or testo Smart App with automatic charging programs according to target value superheat, subcooling or refrigerant weight.
    • Flexible in confined environments: Valve and scale automatically connect via Bluetooth to the manifold and App on your smartphone/tablet.
    • All measured values for the charging process at a glance in the manifold and App with storage of the measured data in the App.
    • Compatible with testo 560i, manifolds testo 557s/550s/550i as well as testo 557 /550, Smart Probes testo 115i/549 i/605i and testo Smart App for Android and iOS.

    Advantages of the refrigerant valve

    • Especially robust thanks to IP54
    • High Bluetooth range of up to 150 m together with a Testo manifold (alone up to 50 m).
    • Long battery life of over 60 hours and replaceable 9 V block battery.
    • Very practical due to sturdy hook.

    • Refrigerant valve with Bluetooth for digital refrigerant scale testo 560i
    • 1 x 9V (6LR61) battery
    • Instruction manual

    General technical data

    Operating humidity
    0 to 80 %RH
    Weight
    570 g (incl. batteries)
    Dimensions
    95 x 119 x 47 mm (LxWxH)
    Operating temperature
    -10 to +50 °C
    Protection class
    IP54
    Product colour
    black/orange; silver
    Maximum working pressure
    35 bar
    Battery type
    9 V (6LR61)
    Battery life
    >60 hrs + 3000 valve operations
    Interface
    Bluetooth® 4.2
    Radio range
    50 m
    Storage temperature
    -10 to +50 °C
