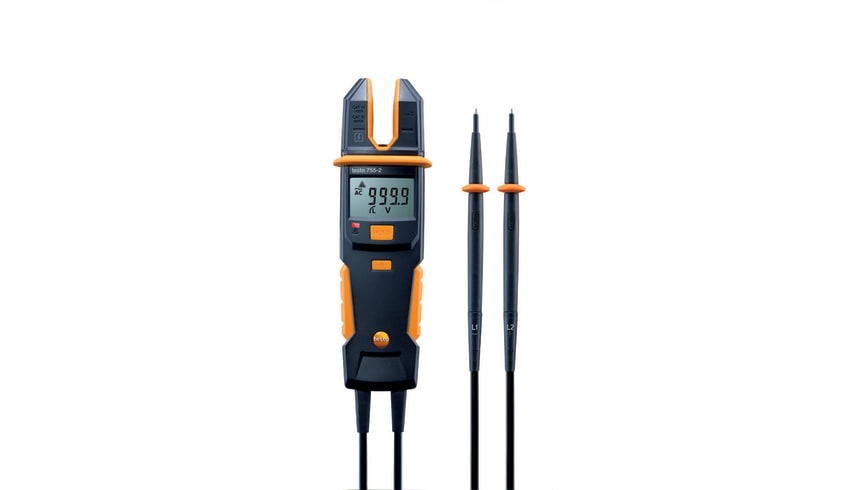

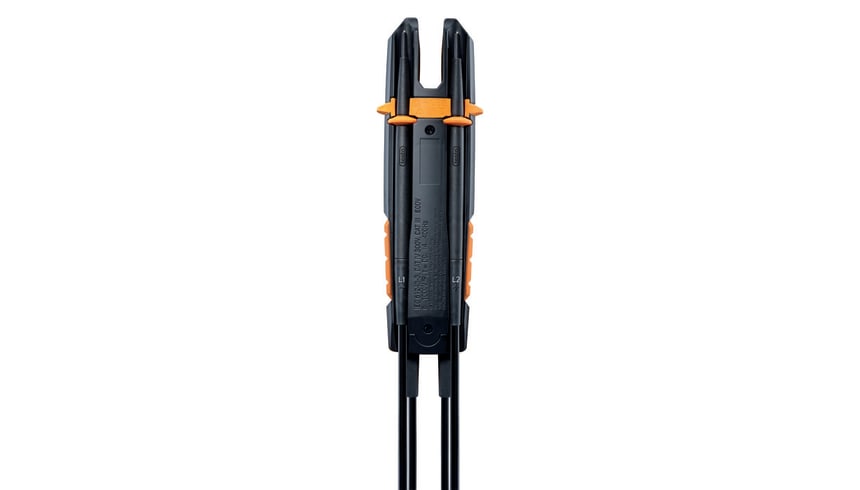

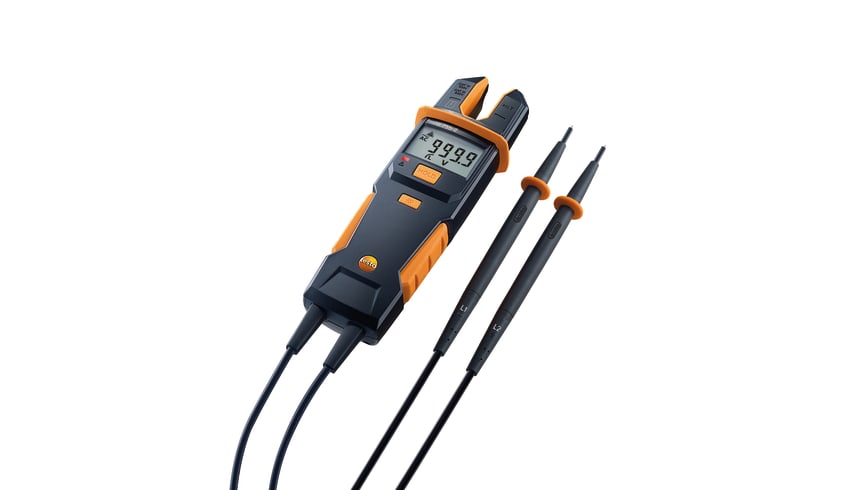

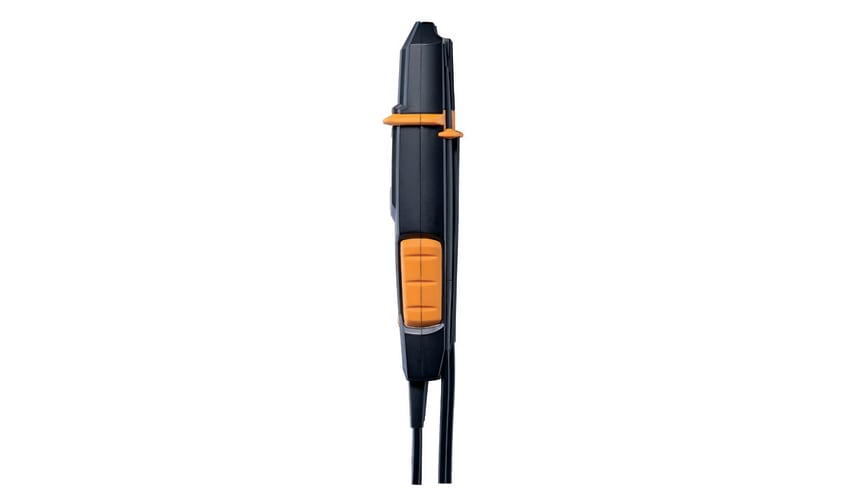

All-in-one voltage tester and current measuring instrument: the innovative testo 755-2. A multitasker for almost all daily electrical measuring tasks. With automatic measurement parameter detection, exchangeable measuring tips and an extended voltage range up to 1,000 V.
Simple, reliable operation with automatic selection of measurement parameters
DIN EN 61243-3:2014 and DIN EN 61010‑1:2011 certified
Single pole voltage testing to determine quickly whether conductors are live
Voltage range up to 1,000 V
AED 699.00
With the testo 755-2, you are equipped for the most important tasks of the working day. The current/voltage tester is suitable for determining voltage or de-energization, checks voltage level and continuity and measures flow of current along with current consumption. It is a simple task to change faulty measuring tips – without needing to replace the instrument. And the automatic measurement parameter detection and integrated torch make operation and measurement particularly easy and reliable.
Compared to the testo 755-1, the testo 755-2 has an increased voltage range of up to 1,000 V and enables rotating magnetic field measurement along with single pole voltage testing to determine quickly whether conductors are live.
DC voltage
DC voltage
Measuring range
6 to 1000 V
Resolution
0.1 V
Accuracy
50 to 1000.0 V: ± (1.5 % of mv + 3 Digits)
6 to 49.9 V: ± (1.5 % of mv + 5 Digits)
AC voltage
AC voltage
Measuring range
6 to 1000 V
Resolution
0.1 V
Accuracy
50 to 1000.0 V: ± (1.5 % of mv + 3 Digits)
6 to 49.9 V: ± (1.5 % of mv + 5 Digits)
AC current
AC current
Measuring range
0.1 to 200 A
Resolution
0.1 A
Accuracy
± (3 % of mv + 3 Digits)

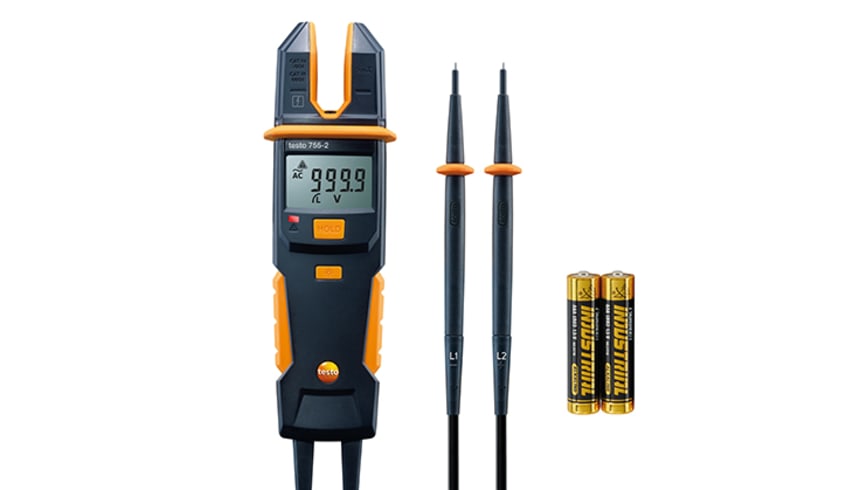

testo 755-2 current/voltage tester, including batteries, measuring tips, measuring tip caps, calibration protocol and instruction manual.
Ideal for voltage testing and current measurement
Automatic measurement parameter detection, voltage range up to 1000 V, automatic switch-on, exchangeable measuring tips, integrated torch for measuring point illumination

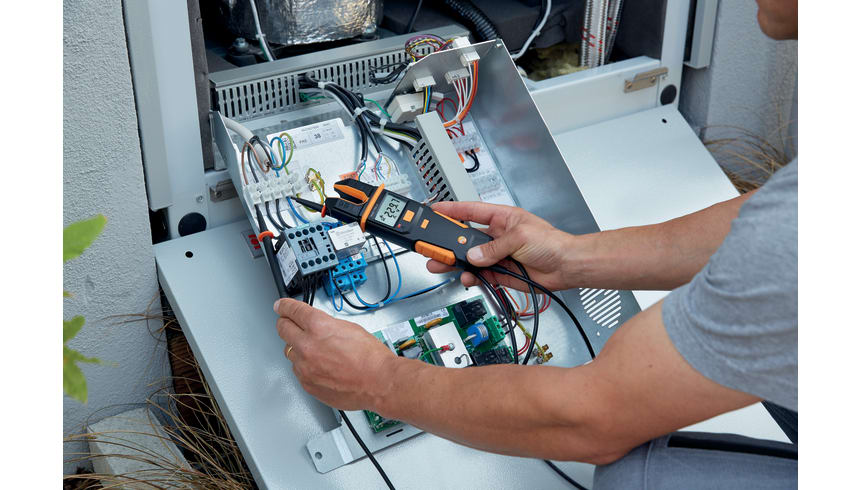

Overview of applications

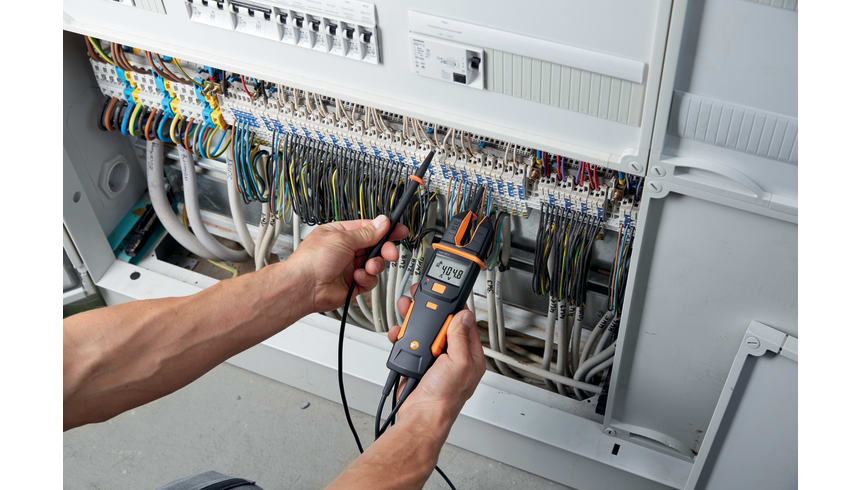

Test electrical circuits or systems for voltage or de-energization (according to DIN EN 61243-3:2010)
Current consumption measurement
Checking the rotating magnetic field
Single pole voltage testing to determine whether conductors are live
