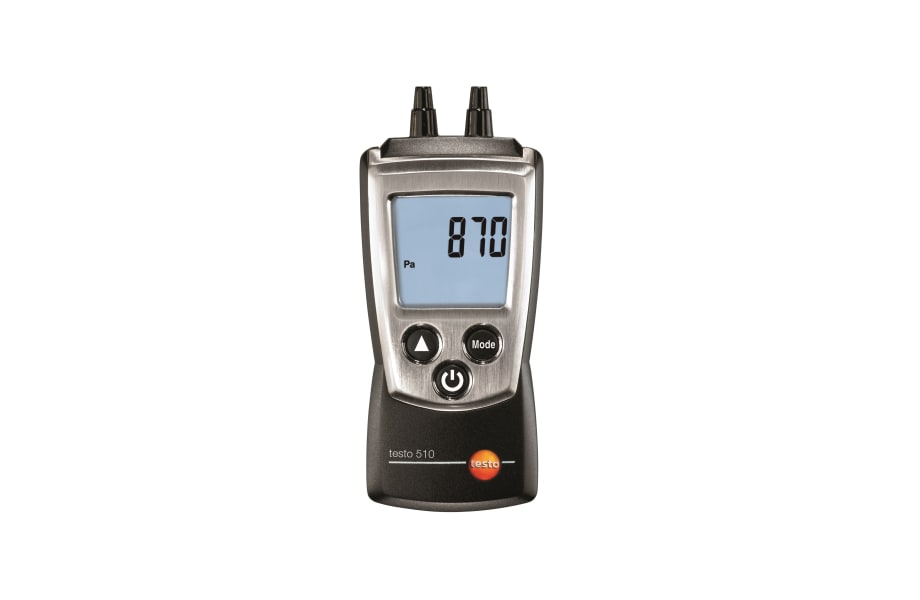

testo 510 - Differential pressure meter

Order-Nr.  0560 0510

  • testo 510
Where to buy
+61 3 - 41000435
Inquiry

  • Differential pressure from 0 to 100 hPa

  • 10 Measurement unitsto choose from (hPa, mbar, mmHg, psi, m/s, fpm)

  • Air flow measurements

  • Temperature and air density compensation

The Testo 510 differential pressure meter allows you to carry out pressure difference measurements in air condtioning systems or air flow measurements in ventilation ducts using a pitot tube. The trusty and reliable meter has been tried and tested in the field and is ideal for installation and maintenance work in and around ventilation and air conditioning.

Details

Product Description

The Testo 510 differential pressure meter ensures that you as an air conditioning technician are best equipped to measure pressure differences from 0 to 100 hPa. You can select from one of ten units of measurement:

| psi | fpm | inH2O | inHg | hPa | Pa | mbar | mmH2O | mmHg | m/s |

The optional pitot static tube allows you to measure the air flow in ventilation ducts from 10 to 100 m/s.

The Testo 510 – practical and accurate. And packed with special features

  • Accurate: temperature and air density compensated pressure difference measurements for accurate and reliable results
  • Easy to use: compact design; only three keys for easy use
  • Intelligent: magnets on the rear side of the meter that stick to almost any metal object leaving your hands free for other tasks; backlit display for use in all lighting conditions
  • Safe: belt bag and slip-on protective cap that ensure that your meter is stored safely; hand strap to prevent your meter from being accidentally dropped

Delivery Scope

testo 510 differential pressure meter, protective cap, protocol certificate, belt bag, batteries.

Technical Data

General technical data

Dimensions

119 x 46 x 25 mm

Operating temperature

0 to +50 °C

Protection class

IP40

Seceltable units

hPa, mbar, Pa, mmH2O, inH₂O, inHg, mmHg, psi, m/s, fpm

Maximal static pressure

1.5 bar

Measuring rate

0.5 s

Battery type

2 AAA micro batteries

Battery life

50 h (average, without display illumination)

Storage temperature

-40 to +70 °C

Weight

90 g (with batteries and protective cap)
Differential Pressure - Piezoresistive

Measuring range

0 to 100 hPa

Accuracy

±0.03 hPa (0 to 0.30 hPa)

±0.05 hPa (0.31 to 1.00 hPa)

±(0.1 hPa + 1.5 % of mv) (1.01 to 100 hPa)

Resolution

0.01 hPa

Overload

500 mbar

Accessories

Accessories

Cross-Seller Calibration certificate
ISO pressure calibration certificate; with 5 measuring points distributed over the measuring range; accuracy > 0.6 % of f.v.

Order Number: 0520 0005

Cross-Seller Calibration certificate
ISO calibration certificate for pressure; calibration at 3 measuring points, distributed over the measuring range of the measuring instrument/probe – accuracy > 0.6 % of f.v.

Order Number: 0520 0095

Cross-Seller Connection hose
Connection hose, silicone, 2 m long, max. load 700 hPa (mbar)

Order Number: 0554 0448

$56.00
incl. GST  $61.60

Certificates

Cross-Seller No picture available
ISO calibration certificate/pressure

Order Number: 0520 0125

Applications

Differential pressure measurement on filters

Air conditioning systems are equipped with filters which prevent dirt from the outside air entering the indoor air. These filters are to be inspected regularly to make sure they are still fully functional. To do this, the pressure is measured in front of and behind the filter. The result is the differential pressure. If it is too high, the filter is contaminated and needs changing.

The testo 510 measures differential pressures in a range of 0 - 100 hPa. The differential pressure measurement is temperature-compensated for exact readings. The readings can be displayed in pascal over the entire measuring range. Magnets on the rear of the instrument allow hands-free work.

testo 510: Differential pressure measurement on filters

Measurement in ventilation ducts

Observance of air flows in the ventilation duct is of utmost importance for the function of the ventilation and air conditioning system. If the air flows are smaller than intended, the removal of room loads (heating, cooling and substance loads) may not be ensured in certain circumstances.

Therefore, the most accurate recording of air flows as possible is particularly important.

In conjunction with a pitot tube, testo 510 measures the air velocity in the range of 10 to 100 m/s. Magnets on the rear of the instrument allow hands-free work.

testo 510: Measurement in ventilation ducts
