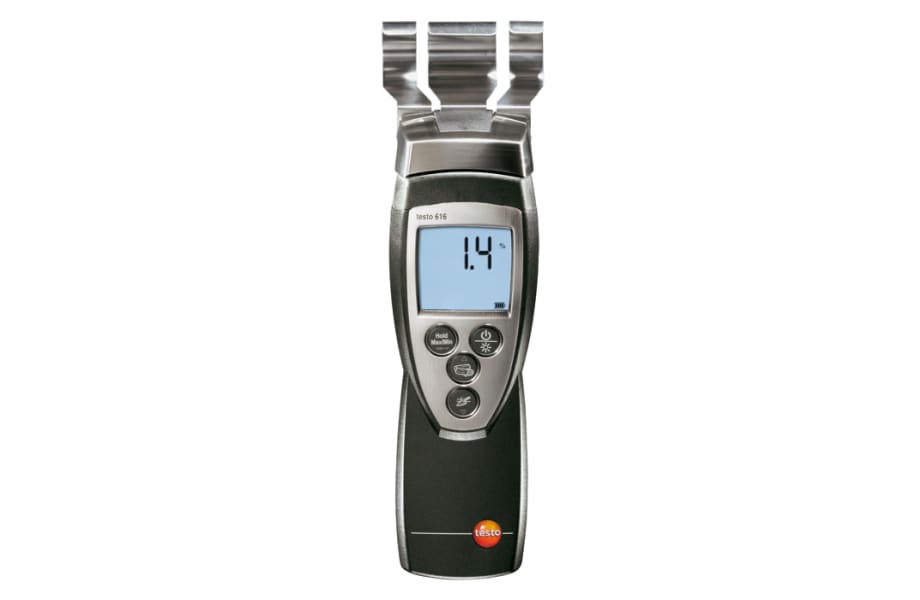

testo 616 - Moisture meter for wood and building materials

0560 6160
  • Measures the moisture content of wood and building materials quickly and reliably
  • Non-destructive, precise measurements up to a material depth of 5 cm
  • 10 characteristic curves for different types of building material and wood
  • Backlit display, hold function, min/max memory, ergonomic design
  • The testo 616 professional moisture meter provides you with a precise and non-destructive means of measuring the moisture content of wood and other building materials.

    The testo 616 professional moisture meter provides you with a precise and non-destructive means of measuring the moisture content of wood and building materials and of monitoring the drying process after water damage. Simply select the characteristic curve and place the meter’s measuring claw against the surface of the material you would like to measure. The meter shows you the moisture content as a weight percentage compared to the dry weight. Press the relevant key to save the reading to your meter.

    Although the measuring claw only comes into contact with the surface, wall or flooring that is being measured, it is able to determine the moisture content of the wood or other material down to a depth of 5 cm.

    Ideal areas of use for the testo 616 moisture meter

    The testo 616 moisture meter is a professional measuring device that can be used in areas as diverse as water damage restoration or carpentry or joinery.

    • Moisture damage detection: the non-destructive method for finding moisture in walls and floors
    • Monitoring drying processes: from carrying out moisture inspections to meeting building schedules to controlled drying after water damage – the non-destructive method for determining the moisture content in wood and building materials
    • Moisture in wood: for checking the moisture content of wood that has been stored prior to processing

    testo 616 moisture meter with 10 characteristic curves

    • Soft wood
    • Hard wood
    • Pressboard
    • Anhydrite screed
    • Cement screed
    • Lime sand brick
    • Gas concrete
    • Concrete
    • High insulation bricks
    • Brickwork

    testo 616 moisture meter for wood and building materials, calibration protocol, batteries.

    General technical data

    Dimensions
    70 x 58 x 234 mm
    Operating temperature
    +5 to +40 °C
    Product-/housing material
    ABS / TPE / Metal
    Protection class
    IP30
    Battery type
    9V block battery, 6F22
    Battery life
    60 h
    Display update
    0.5 s
    Unit
    Water content in percent by weight based on dry mass (%)
    Measurement depth
    up to 5 cm
    Measuring rate
    0.5 s
    Storage temperature
    -20 to +70 °C
    Weight
    260 g

    Humidity - Capacitive

    Measuring range
    < 50 % (wood)
    < 20 % (building materials)
    Resolution
    0.1

    Accessories


    Determining moisture in wood

    Moisture content is a decisive factor in the further processing and use of timber products. If wood is installed with the wrong moisture content this may result in mechanical deformations (contracting and swelling) at the site where the material is subsequently used, and therefore damage to pieces of furniture or entire supporting structures in buildings. Therefore, before being made into furniture or supporting material by a joiner/carpenter, the suitability of the wood has to be assessed by measuring the moisture content.

    The testo 616 enables the quick and non-destructive examination of the material moisture characteristics in timber. Characteristic curves are available for measuring wood moisture in soft and hard woods, and chipboard. These characteristic curves were developed in cooperation with the LPI institute.

    The measurement results are calculated up to a depth of 5 cm and can be recorded at the touch of a button. The readings are displayed in percent by weight in comparison to the dry mass of the material.

    testo 616

    Monitoring drying processes

    Whether freshly laid screed, or monitored drying of moisture damage, timely determination of the required moisture level will save time and therefore money.

    Screeds are laid in the in interior works stage, generally after plastering. The flooring and painting and decorating then follow. The drying behaviour is therefore a significant factor in the works schedule, primarily because the laying of flooring depends on this.

    The moisture measurement establishes readiness for flooring; liability for the flooring is thus transferred to the respective trade installing the flooring. An important part of this work is therefore documentation and assurance in the testing for readiness for flooring.

    What is the extent of moisture damage? This question has to be answered in order to decide which instruments are to be used to speed up the drying process.

    The testo 616 can be used to quickly and non-destructively examine the material moisture in building materials. It also makes work easier when drying processes for floors, walls and surfaces have to be observed.

    Diagnosing building moisture

    Moisture may penetrate walls, floors and ceilings due to pipes bursting or water ingress. Some of this moisture damage may not be detected immediately. Rising or ingressing water, faulty rain and waste water drains, or even blocked drains and inadequate seepage capacity may be the cause.

    Depending on where it is getting out or in, the moisture can spread in different ways; enormous damage may be done if discovered too late. Therefore, measurement of the material moisture in the affected places is necessary to be able to identify the source of the damage.

    The testo 616 can be used to quickly and non-destructively examine the material moisture in building materials. The measuring clamp is laid on the surface; the value can be read immediately. The measurement results are calculated up to a depth of 5 cm and can be recorded at the touch of a button. The readings are displayed in percent by weight in comparison to the dry mass of the material.

    For easy, quick handling, characteristics are already stored in testo 616 for the following construction materials: anhydrite screed, cement screed, lime sand brick, aerated concrete, concrete, vertically perforated brick and solid brick; these aid detection of wet places in the construction materials.
