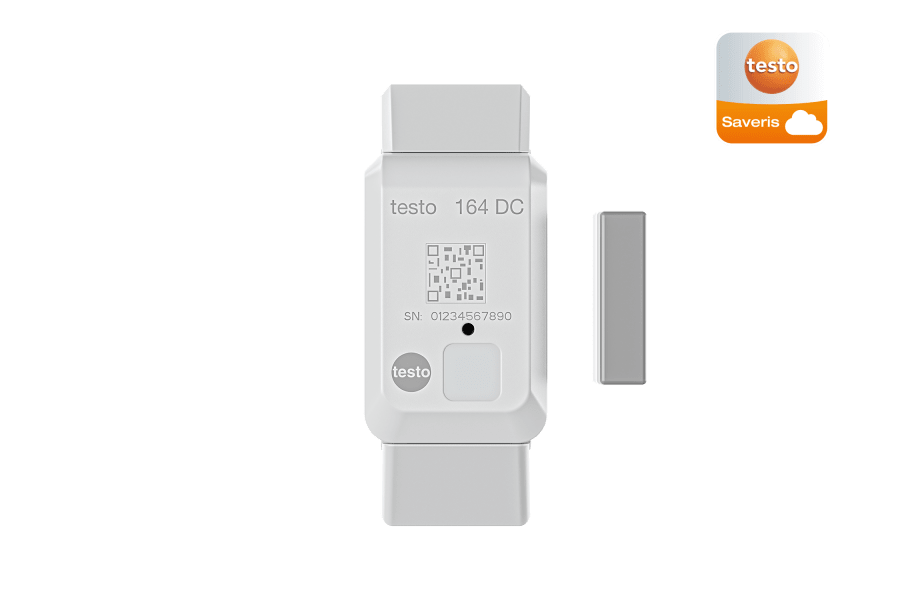

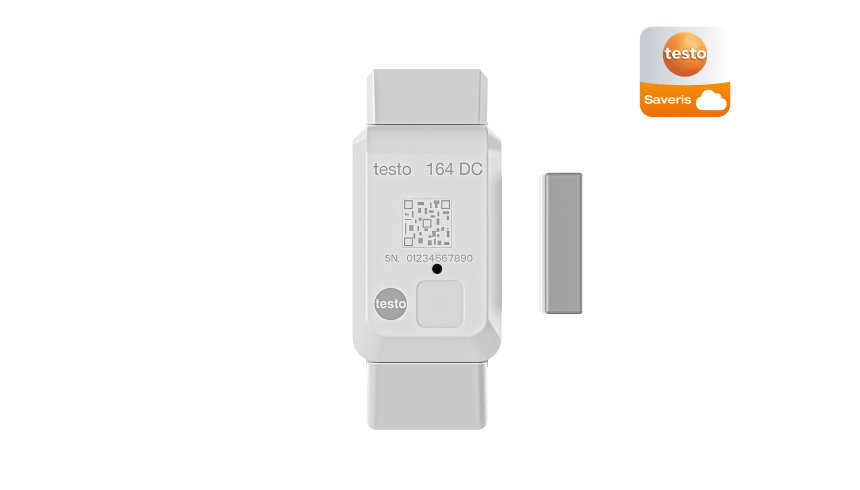

testo 164 DC - Mini online door contact data logger


testo 164 DC is an easy-to-use mini online data logger for monitoring doors (opening and closing). The testo 164 online data loggers are part of the testo 160 online data logger system consisting of the hardware components (testo 160, testo 162, testo 164) as well as the testo Saveris Cloud and testo Smart App. The testo Saveris Cloud is the central data platform. Measured values can be viewed and analyzed there.

The Testo Data Monitoring license is required to use the system.

  • Limit value violation alarms by push notification, e-mail or (optionally) SMS
  • Automated door contact monitoring
  • Connection to the testo Smart App:
    Simple commissioning, push alarms and dashboard
  • Automatic measurement value documentation in testo Saveris (Cloud)
  • Data transmission to Gateway via proprietary wireless connection
  • Small size & unobtrusive design

The testo 164 mini online data loggers are part of the testo 160 online data logger system. They record measurement values (temperature and humidity) and send them directly to the testo 164 Gateway via a proprietary wireless connection.

If limit values are exceeded, the testo Smart App alerts you directly via push notification of limit value violations. Alternatively, you can be notified by email or SMS.

You can access all measurement data and analysis functions anytime and anywhere with your internet-enabled smartphone, tablet, or PC.

Perfectly networked: With the mini online data logger testo 164 DC and the testo Saveris Cloud

The testo Saveris Cloud is the central operating element of the testo 160 online data logger system. You can use the testo 164 DC to store your measurement data in the testo Saveris Cloud via an existing WLAN. Here you can configure your online data loggers, set limit value alarms and analyze your measurement data. A valid license must be purchased to operate the online data loggers in the testo Saveris Cloud (Data Monitoring License).

Installation of the system is simple and can be carried out via the testo Smart App.

General technical data

Weight
17 g
Dimensions
62.6 x 38 x 17.5 mm
Operating temperature
-30 to +85 °C
Protection class
IP67
Measuring rate
1 min - 24 h
Door contact
yes
Communication rate
1 min - 24 h
Connection
Power supply
Battery (non-replaceable)
Interface
Sub 1 GHz; IEEE 802.15.4
Memory
300 measurement values / channel
Battery life
8 years (15 min measurement cycle, +25°C)
Storage temperature
-30 to +85 °C
  • Mini online data logger testo 164 DC
  • Wall bracket
  • Short instructions
  • Test protocol
  • White packaging
  • not available
  • not available
