Testing system set

Testing system set

0563 0314

Testing system set

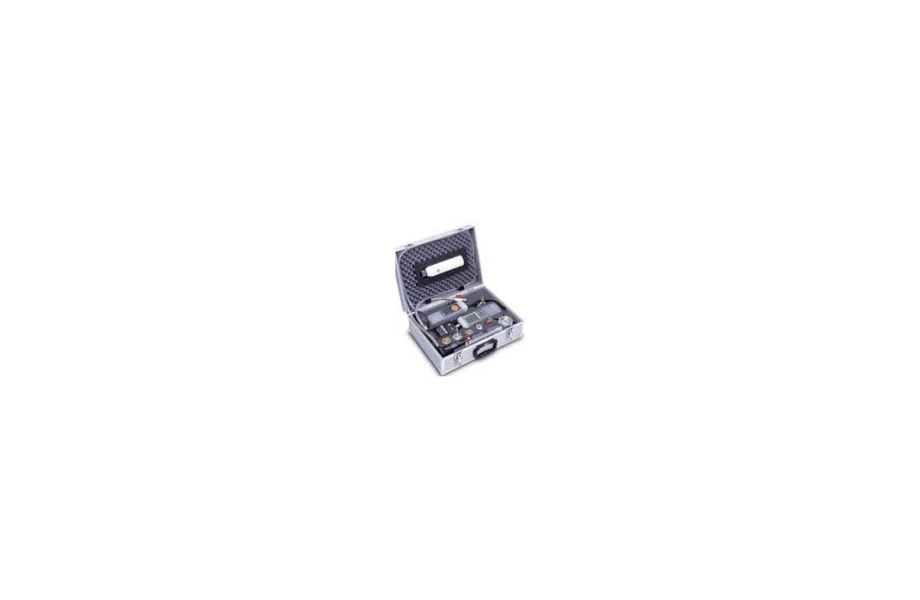

testing system set:
testo 312-3 pressure meter
testo 312 TopSafe
fast printer
testo 316-1 gas leak detector
316-1 TopSafe
pressure drop test set 200mbar
testing pump
single-pipe counter cap
two valve T-fitting
single valve barrier
connection hose LW6
conical test plugs 1/2, 3/4
high pressure stage stops 3/8, 3/4, 1/2, 1
leak detection spray
system case

Quick and efficient. You can test the stability and pressure drop in gas and water pipes quickly, conveniently and efficiently using the electronic testo 312 pressure gauge. The results are printed out on the Testo printer.

General technical data

General technical data	Dimensions 215 x 68 x 47 mm
	Operating temperature 5 {#0} to +45 {٪S2}
	Product-/housing material ABS
	Miscellaneous Measurement range can be switched from ±40 hPa to ±200 hPa Adjustment step: 0.01 hPa or 5 hPa
	Alarm function audible; Optical
	Alarm untere Grenze -0.04 hPa
	Alarm upper threshold 100 hPa
	Battery type 9V block battery
	Display type LCD
	Display size 2 lines
	Storage temperature -20 to +60 {٪S2}
	Weight 300 g

Pressure measurement

Pressure measurement	Measuring range -300 to +300 hPa 3000 to +3000 hPa
	Accuracy ±4 % of mv (+2000 to +6000 ) ±4 hPa (0 to +400 hPa) ±1.5 % of mv >50 hPa ±0.5 hPa (0 to +50 hPa) ±2 % of mv (+400 to +2000 )
	Resolution 1 hPa (-6000 to +6000 hPa) 0 hPa (-300 to +300 hPa)
	Overload rel. (low pressure) 8000
	Overload rel. (high pressure) 8000 hPa
