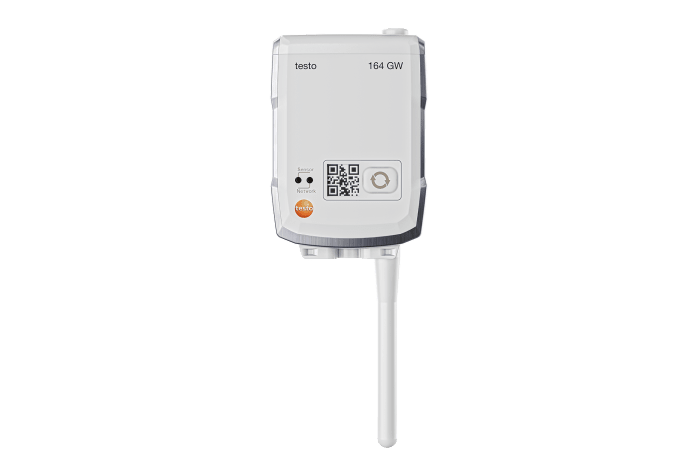

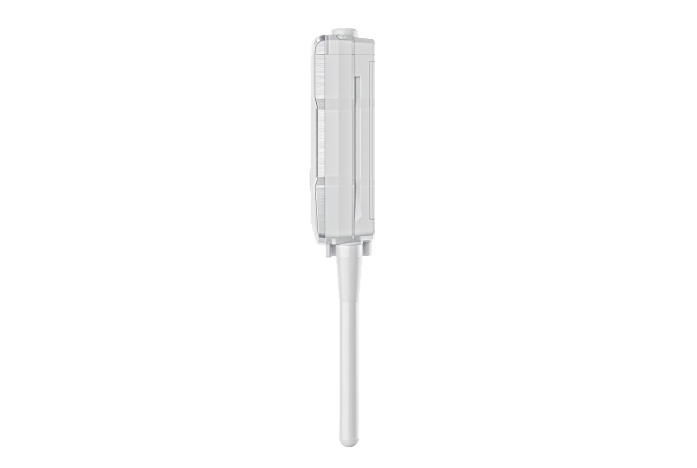

testo 164 GW - Gateway for mini online data loggers with wireless LAN

0572 1648
  • Limit value violation alarms by push notification, e-mail or (optionally) SMS
  • Secure and automated data transfer between testo 164 mini online data logger and testo Cloud
  • Connection to the testo Smart App:
    Simple commissioning, push alarms and dashboard
  • Automatic measurement value documentation in testo Saveris (Cloud)
  • Data transfer by wireless LAN
  • The testo 164 Gateway is the component required to transfer the measurement values from the testo 164 mini online data loggers to the cloud. The testo 164 Gateways are part of the testo 160 online data logger system consisting of the hardware components (testo 160, testo 162, testo 164) as well as the testo Saveris Cloud and testo Smart App. The testo Saveris Cloud is the central data platform. Measured values can be viewed and analyzed there.

    The Testo Data Monitoring license is required to use the system.

    • not available
    • not available
    The gateway receives the measurement data from the testo 164 mini wireless data loggers via the proprietary wireless connection. The measurement values are transmitted to the testo Cloud by wireless LAN.
    If limit values are exceeded, the testo Smart App alerts you directly via push notification of limit value violations. Alternatively, you can be notified by email or SMS.
    You can access all measurement data and analysis functions anytime and anywhere with your internet-enabled smartphone, tablet, or PC.

    • testo 164 Gateway WLAN
    • Wall bracket
    • Mains unit
    • Short instructions
    • White packaging

    General technical data

    Weight
    220 g (with batteries)
    Dimensions
    69 x 105 x 29 mm
    Operating temperature
    0 to +50 °C
    Protection class
    IP65
    Measuring rate
    1 min - 24 h
    Communication rate
    1 min - 24 h
    Connection
    Power supply
    External power supply 4xAA backup battery
    Interface
    Sub 1 GHz; IEEE 802.15.4
    Battery life
    Shutdown after 10 minutes
    Storage temperature
    -30 to +60 °C

    Accessories
