  2. Combustion air temperature probe, immersion depth 190 mm
0600 9799

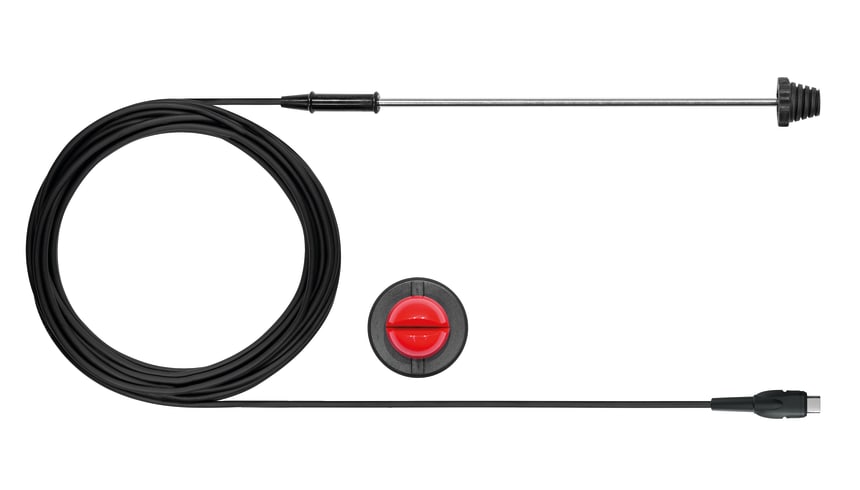

Combustion air temperature probe

The probe is used for the specific measurement of combustion air temperature within the context of flue gas or particulate matter measurements.
  • Flexible positioning (immersion depth 190 mm, cable length 2.2 m)
  • Cone for attachment included
  • Measuring range: -50 to +125 °C
The combustion air temperature probe can be positioned flexibly, because it features a 190 mm long probe shaft and a 2.2 m cable. A cone for attachment is included.

Temperature

Measuring range
-50 to +125 °C
Accuracy
±0.2 °C (-25 to +80 °C)
±0.4 °C (Remaining Range)
Reaction time
t₉₀ < 60 s

General technical data

Length probe shaft
190 mm
Cable length
2.2 m
Diameter probe shaft tip
21.2 mm
Diameter probe shaft
4.15 mm
Product colour
Black
Weight
60 g

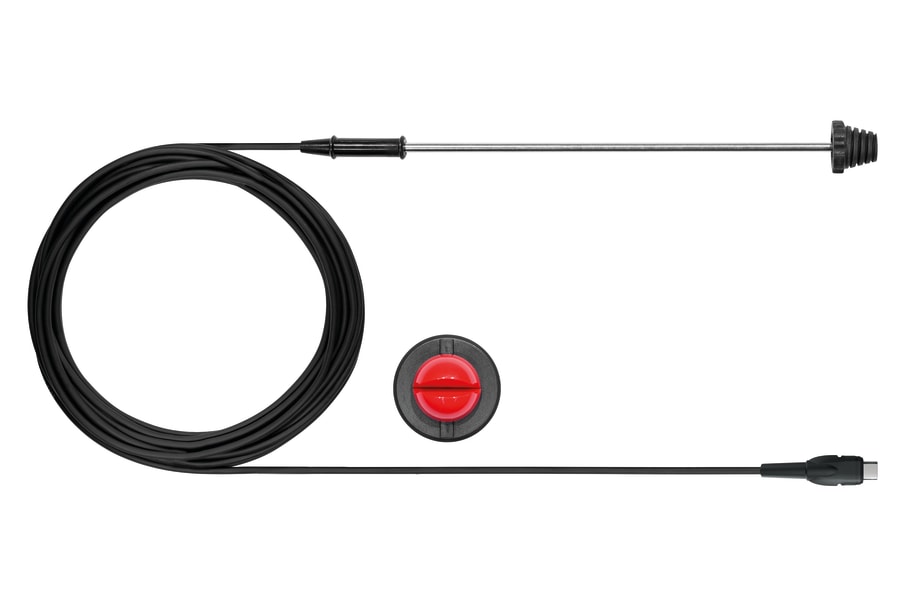

Combustion air temperature probe with 190 mm probe shaft including cone for attachment.

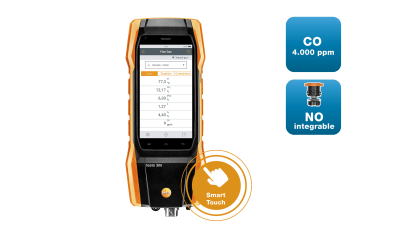

testo 300

: 0633 3004 72

testo 300 Longlife - Flue gas analyzer (O2, CO up to 4,000 ppm, NO - can be retrofitted)

testo 300

: 0633 3004 83

testo 300 Longlife - Flue gas analyzer (O2, CO H2-compensated up to 30,000 ppm, NO - can be retrofitted)

testo 300

: 0633 3004 88

testo 300 Longlife - Flue gas analyzer (O2, CO H2-compensated up to 30,000 ppm, NO - can be retrofitted)

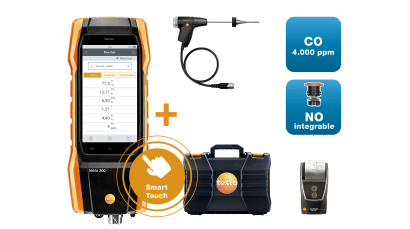

testo 300 kit

: 0564 3004 71

testo 300 Longlife kit 1 with printer - Flue gas analyzer (O2, CO up to 4,000 ppm, NO - can be retrofitted)

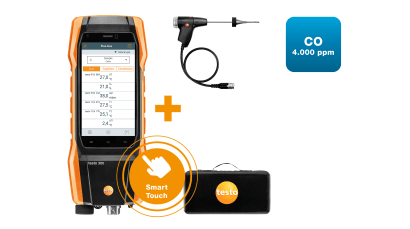

testo 300 NEXT LEVEL kit 1

: 0564 3002 70

testo 300 NEXT LEVEL kit 1 - Flue gas analyzer (O2, CO up to 4,000 ppm)

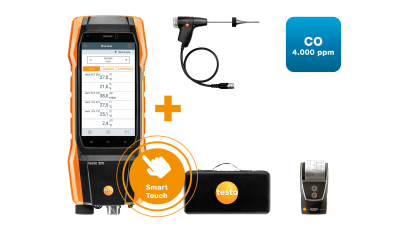

testo 300 NEXT LEVEL kit 2 with printer

: 0564 3002 71

testo 300 NEXT LEVEL kit 2 with printer - Flue gas analyzer (O2, CO up to 4,000 ppm)
