Modular flue gas probe with pre-filter, Ø 14 mm, 700 mm, Tmax 1000°C

Modular flue gas probe with pre-filter, Ø 14 mm, 700 mm, Tmax 1000°C

0600 8767

Modular flue gas probe with pre-filter, Ø 14 mm, 700 mm, Tmax 1000°C

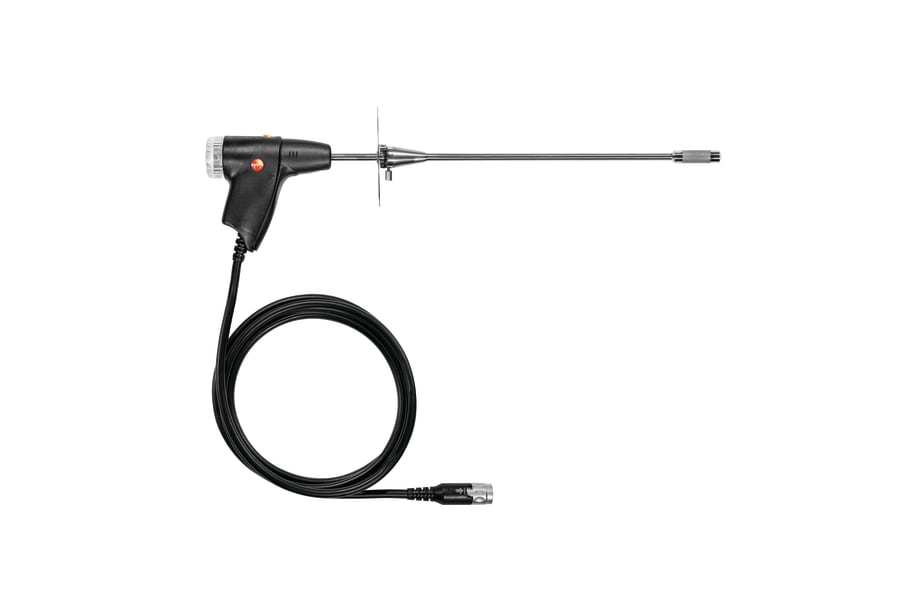

The modular flue gas probe with preliminary filter Ø 14 mm, 700 mm long probe shaft, thermocouple up to 1000 °C and quick-change click system (for quick probe shaft replacement).

Easy probe shaft replacement via quick-change click system
Preliminary filter offers protection from dusty flue gases
Flue gas path and temperature channel can be connected to the instrument via a bayonet lock
Integrated thermocouple probe for temperature measurements up to 1000 °C

The modular flue gas probe contains a preliminary filter with a diameter of 14 mm, which protects the measuring instrument and its sensors from dusty flue gases. The probe also features a quick-change click system on the handle, enabling easy replacement of the probe shaft. The thermocouple NiCr-Ni, which is integrated in the probe shaft, enables temperature measurement up to 1000 °C. Flue gas path and temperature channel can be conveniently connected to the measuring instrument via a practical bayonet lock.

General technical data

General technical data	Weight 726 g
	Length probe shaft 700 mm
	Product-/housing material Metal housing
	Cable length 2.2 m
	Diameter probe shaft tip 14 mm
	Diameter probe shaft 8 mm
	Product colour Black; silver
	Temperature maximum 1,000 °C

Modular flue gas probe 700 mm with preliminary filter Ø 14 mm, including cone for attachment, thermocouple NiCr-Ni (TI) Tmax 1000 °C and NO₂/SO₂ special hose 2.2 m.
