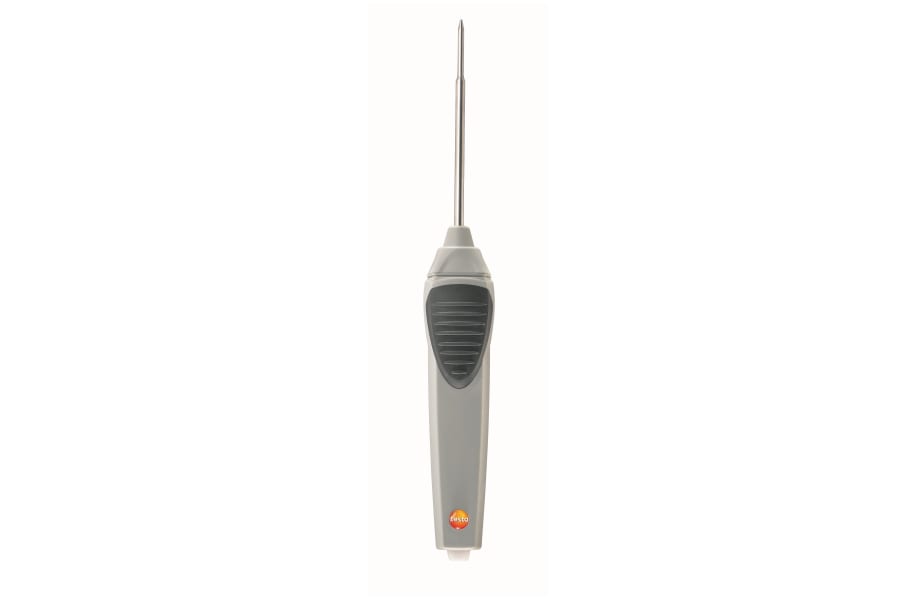

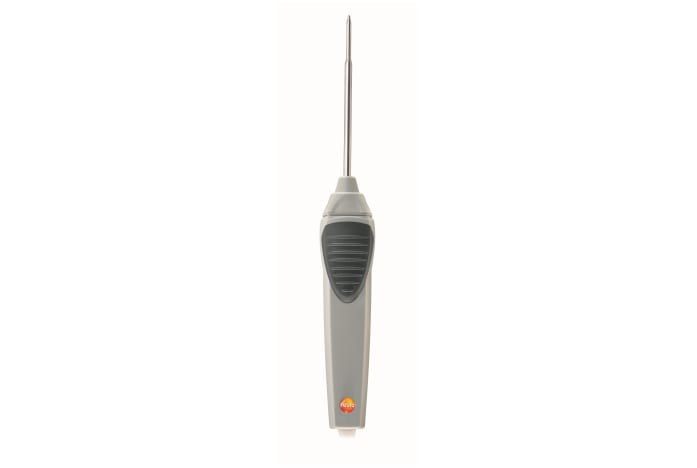

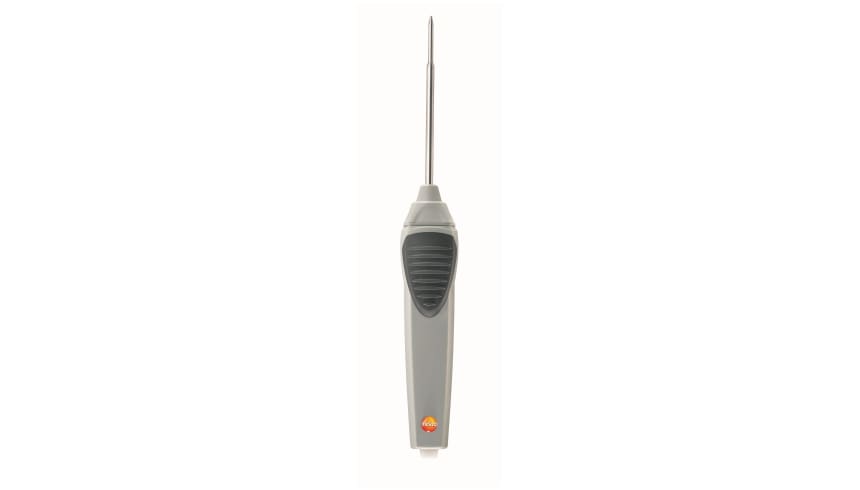

Radio immersion/penetration probe, NTC, approval for the cou...

0613 1001
Radio immersion/penetration probe, NTC, approval for the countries: DE, FR, UK, BE, NL, ES, IT, SE, AT, DK, FI, HU, CZ, PL, GR, CH, PT, SI, MT, CY, SK, LU, EE, LT, IE, LV, NO

General technical data

Length probe shaft tip
30 mm
Diameter probe shaft
5 mm
Diameter probe shaft tip
3.4 mm
Length probe shaft
105 mm

Temperature - NTC

Measuring range
-50 to +275 °C
Accuracy
±0.8 °C (-50 to -20.1 °C)
±1.5 °C (Remaining Range)
±0.5 °C (-20 to +80 °C)
±0.8 °C (+80.1 to +200 °C)
Resolution
0.1 °C
Reaction time
(in water) 12 s
