Accurate immersion/penetration probe
0628 0006
Accurate immersion/penetration probe
0628 0006Temperature measurement in liquids, in pastes and in the air
Precise NTC sensor
Measuring range: -35 to +80°C
With the appropriate measuring instrument, the immersion and penetration probe (IP67) enables precise temperature measurement in liquids, in pastes and in the air.

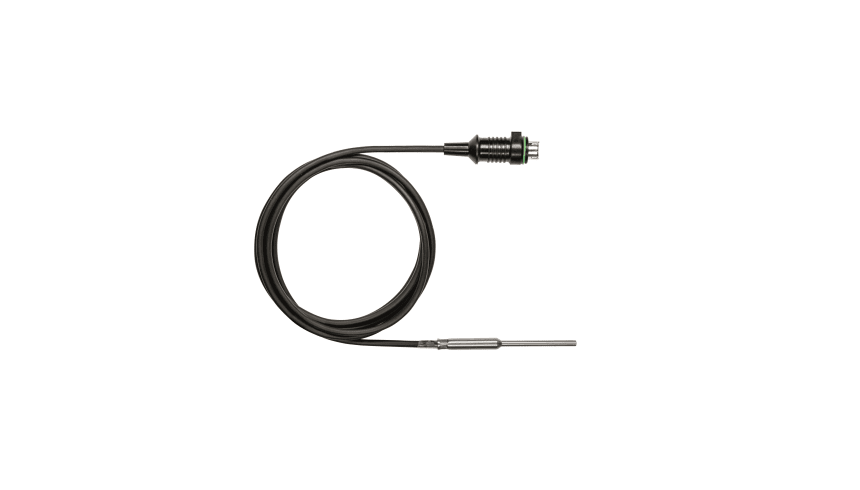

1 x immersion/penetration probe (NTC) with fixed cable (cable length 1.5 m).
Temperature - NTC
| Measuring range | -35 to +80 °C |
|---|---|
| Accuracy | ±0.2 °C (-25 to +75 °C) ±0.4 °C (-35 to -25.1 °C) ±0.4 °C (+75 to +80 °C) |
| Reaction time | 5 s |
General technical data
| Weight | 60 g |
|---|---|
| Dimensions | 1570 mm |
| Diameter probe shaft | 3 mm |
| Diameter probe shaft tip | 3 mm |
| Cable length | 1.5 m |
| Fixed cable | yes |
| Protection class | IP67 |
| Product-/housing material | Thermelt / PUR |
| Length probe shaft | 40 mm |
| Product colour | Black; silver |
