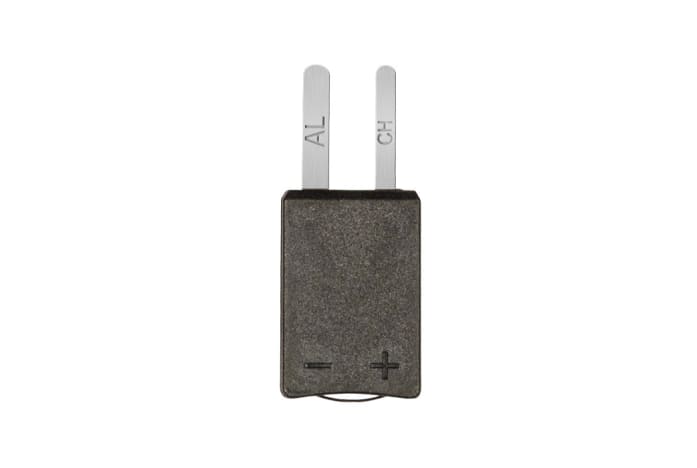

Spare measuring head for pipe wrap probes (TC type K)
0602 0092Spare measuring head for pipe wrap probes (TC type K)
0602 0092Replaceable measuring head with thermocouple strip for temperature probe with clamping bracket 0602 4592
Measuring range: -60 to +130°C, briefly up to +280 °C
Simple pull out the old measuring head with thermocouple strip and replace with new measuring head
Thermocouple type K
The spare measuring head for pipe wrap probes (TC type K) enables easy and fast replacement of your old measuring head, for example in the event of damage.
1 x spare measuring head for pipe wrap probes (TC type K).
Temperature - TC Type K (NiCr-Ni)
| Measuring range | -60 to +130 °C |
|---|---|
| Accuracy | Class 2 ²⁾ |
| Reaction time | 5 s |
| 2) According to standard EN 60584-1, the accuracy of Class 2 refers to -40 to +1200 °C. | |
General technical data
| Dimensions | length: 35 mm |
|---|---|
| Product colour | Black |
| Interface | plug thermocouple |
| Weight | 4 g |
