testo 330-1 LX anniversary set - Flue gas analyzer (O2, CO) in a system case

Order-Nr.  0563 6033 70

  • 5-year warranty without maintenance contract on O2 and CO sensors

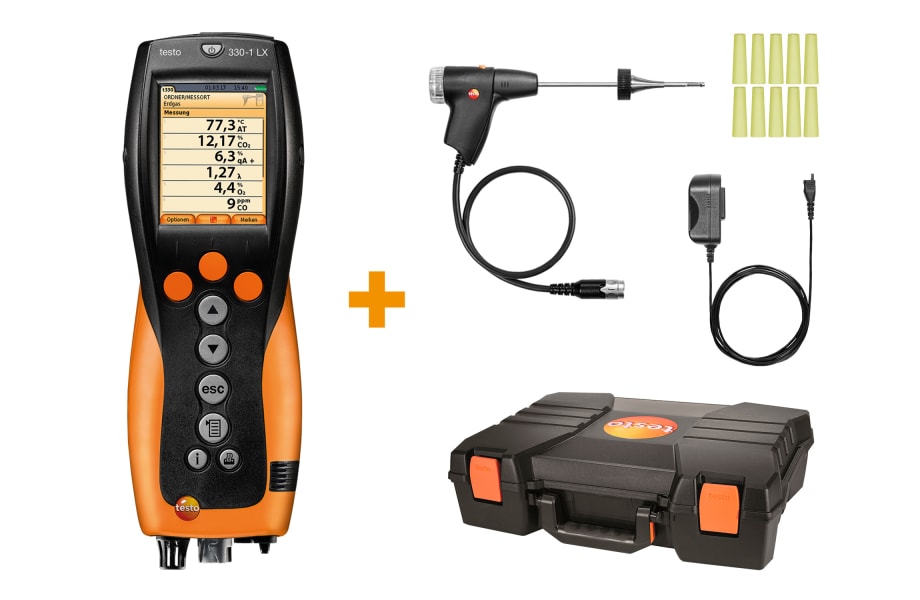

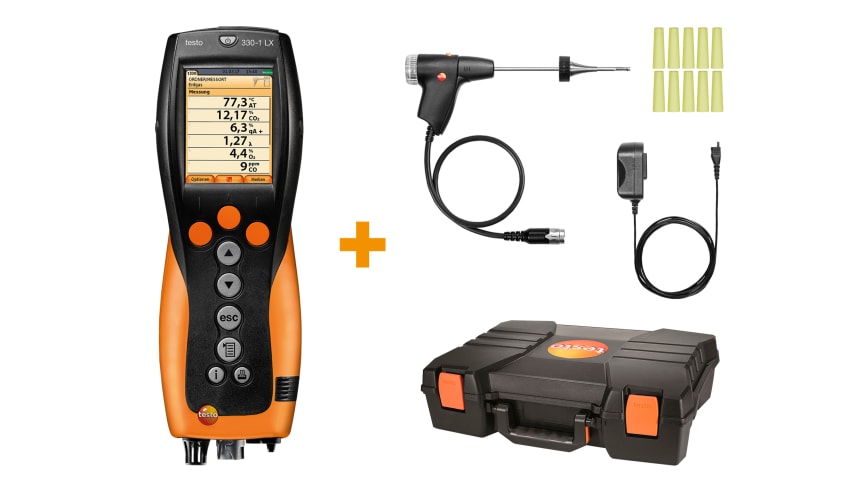

  • Included in the anniversary set: TÜV-tested testo 330-1 LX flue gas analyzer incl. O2 and CO sensor, Bluetooth® interface, mains unit, basic flue gas probe, spare dirt filters and system case

  • TÜV-tested flue gas analyzer according to 1st German Federal Immission Control Ordinance (BImSchV) and EN 50379, Parts 1 to 3

  • Long-life sensors with up to 6 years' service life

This anniversary set means you have the appropriate equipment ready to hand and can get down to work straight away: the set with testo 330-1 LX flue gas analyzer, basic flue gas probe, system case and practical accessories is ideal for customer service and maintenance engineers.

Product Description

The testo 330-1 LX flue gas analyzer makes customer service and maintenance a breeze and therefore more efficient. The high-quality instrument impresses with the successful combination of outstanding sensor technology, longevity and reliability.

testo 330-1 LX anniversary set in detail

testo 330-1 LX flue gas analyzer, tested and certified by the German Technical Safety Standards Authority (TÜV) in accordance with the first German Federal Immission Control Ordinance (BImSchV) and EN 50379, Parts 1 to 3:
  • High-quality long-life measuring cells: sophisticated sensors for O2 and CO are included in the scope of delivery
  • 5-year warranty without a maintenance contract on O2 and CO sensor
  • The sensors have a service life of up to 6 years. This means at least one sensor replacement is saved in the course of a normal operating life
  • Free testo flue gas App for iOS and Android devices (available in the AppStore and Play Store). System requirements: iOS 7.1 or newer, Android 4.3 or newer; mobile terminal device with Bluetooth® 4.0
  • Logger function for easy long-term recording of the measurement profile, large memory for up to 500,000 readings
  • Pressure measurement up to 300 hPa
  • Integrated magnets for easy fixing during the measuring process
  • Condensate trap: easy-to-empty collection vessel in the instrument
  • User-defined fuels
  • IrDa/Bluetooth® interface for data transfer to smartphone/laptop/printer
  • ZIV driver for standard industry software
  • Integrated customer data memory
Basic flue gas probe:
  • On the compact basic flue gas probe with 180 mm long probe shaft, the flue gas path and temperature channel can easily be connected to the measuring instrument by means of a practical bayonet lock
  • The thermocouple NiCr-Ni, which is integrated in the probe shaft, enables temperatures up to 500 °C to be measured


Delivery Scope

  • testo 330-1 LX flue gas analyzer with O2 and CO sensor, Bluetooth® interface, rechargeable battery and calibration protocol (0632 6033 70)
  • Mains unit for connection to the testo 330-1 LX flue gas analyzer (0554 1096)
  • Compact basic flue gas probe, 180 mm, Ø 6 mm, Tmax. 500 °C; 1.5 m hose, including dirt filter and cone for fixing (0600 9740)
  • Replacement dirt filter for compact flue gas probe; 10 pieces (0554 0040)
  • System case for instrument, probes and accessories; height 130 mm (0516 3300)
