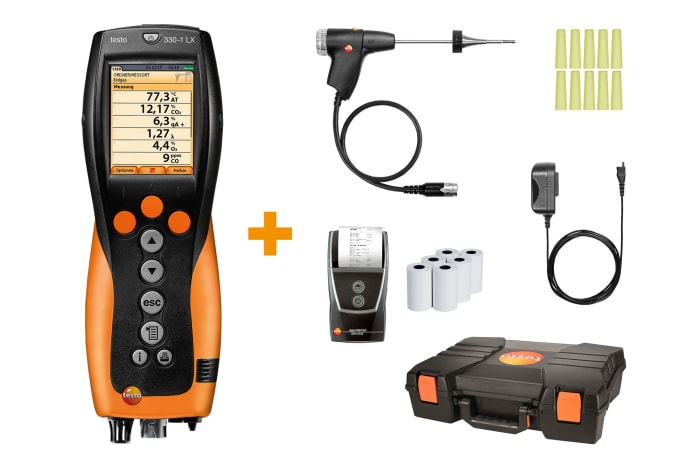

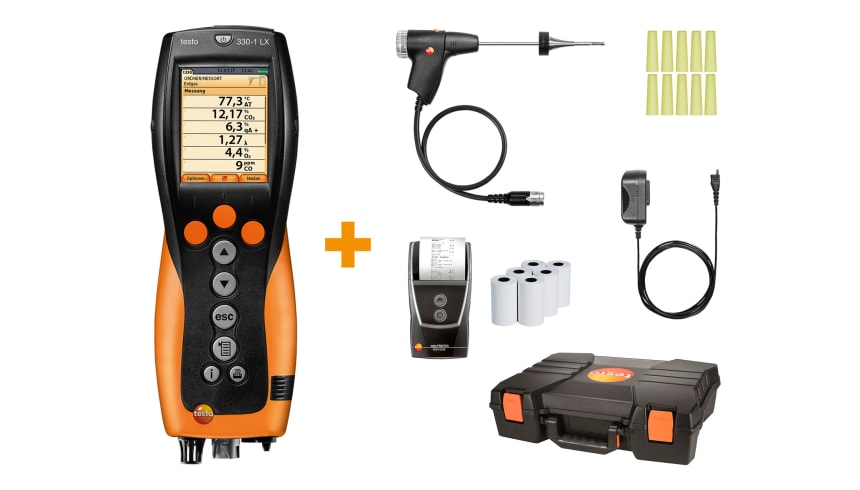

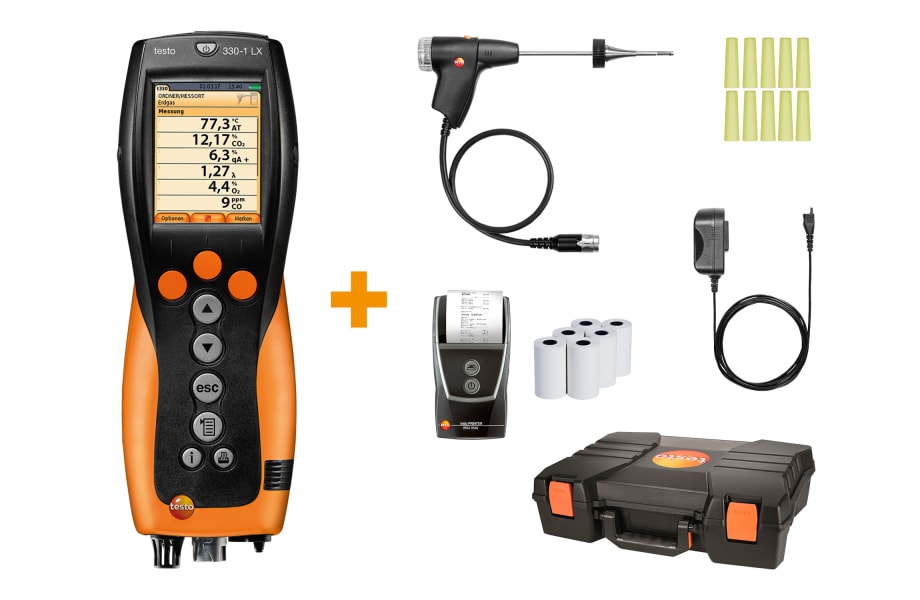

testo 330-1 LX anniversary set - Flue gas analyzer (O2, CO) with printer in a system case



0563 6033 71
  • 5-year warranty without maintenance contract on O2 and CO sensors
  • Included in the anniversary set: TÜV-tested testo 330-1 LX flue gas analyzer incl. O2 and CO sensor, Bluetooth® interface, mains unit, basic flue gas probe, spare dirt filters, Testo fast printer, spare thermal paper and system case
  • TÜV-tested flue gas analyzer according to 1st German Federal Immission Control Ordinance (BImSchV) and EN 50379, Parts 1 to 3
  • Long-life sensors with up to 6 years' service life
  • This anniversary set means you have the appropriate equipment ready to hand and can get down to work straight away: the set with testo 330-1 LX flue gas analyzer, basic flue gas probe, testo fast printer, system case and practical accessories is ideal for customer service and maintenance engineers.


    The testo 330-1 LX flue gas analyzer makes customer service and maintenance a breeze and therefore more efficient. The high-quality instrument impresses with the successful combination of outstanding sensor technology, longevity and reliability.


    testo 330-1 LX anniversary set in detail

    testo 330-1 LX flue gas analyzer, tested and certified by the German Technical Safety Standards Authority (TÜV) in accordance with the first German Federal Immission Control Ordinance (BImSchV) and EN 50379, Parts 1 to 3:

    • High-quality long-life measuring cells: sophisticated sensors for O2 and CO are included in the scope of delivery
    • 5-year warranty without a maintenance contract on O2 and CO sensor
    • The sensors have a service life of up to 6 years. This means at least one sensor replacement is saved in the course of a normal operating life
    • Free testo flue gas App for iOS and Android devices (available in the AppStore and Play Store). System requirements: iOS 7.1 or newer, Android 4.3 or newer; mobile terminal device with Bluetooth® 4.0
    • Logger function for easy long-term recording of the measurement profile, large memory for up to 500,000 readings
    • Pressure measurement up to 300 hPa
    • Integrated magnets for easy fixing during the measuring process
    • Condensate trap: easy-to-empty collection vessel in the instrument
    • User-defined fuels
    • IrDa/Bluetooth® interface for data transfer to smartphone/laptop/printer
    • ZIV driver for standard industry software
    • Integrated customer data memory

    Basic flue gas probe:

    • On the compact basic flue gas probe with 180 mm long probe shaft, the flue gas path and temperature channel can easily be connected to the measuring instrument by means of a practical bayonet lock
    • The thermocouple NiCr-Ni, which is integrated in the probe shaft, enables temperatures up to 500 °C to be measured

    testo fast printer IrDa:

    • The testo fast printer with IrDa and infrared interface saves your measuring values black on white. It enables immediate printout of readings, including date and time


    • testo 330-1 LX flue gas analyzer with O2 and CO sensor, Bluetooth® interface, rechargeable battery and calibration protocol (0632 6033 70)
    • Mains unit for connection to the testo 330-1 LX flue gas analyzer (0554 1096)
    • Compact basic flue gas probe, 180 mm, Ø 6 mm, Tmax. 500 °C; 1.5 m hose, including dirt filter and cone for fixing (0600 9740)
    • Replacement dirt filter for compact flue gas probe; 10 pieces (0554 0040)
    • testo fast printer IrDa with wireless infrared interface, 1 roll of thermal paper and 4 mignon batteries (0554 0549)
    • Replacement thermal paper for printer, indelible ink, 6 rolls (0554 0568)
    • System case for instrument, probes and accessories; height 130 mm (0516 3300)
