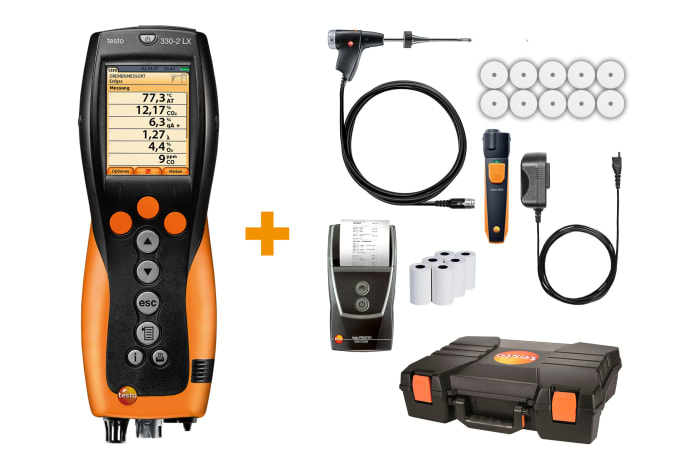

testo 330-2 LX anniversary set - Flue gas analyzer (O2, CO), infrared thermometer and printer in a system case

0563 6034 73
  • 5-year warranty without a maintenance contract on flue gas analyzer O2 and CO sensors
  • Included in the anniversary set: TÜV tested and certified testo 330-2 LX flue gas analyzer, including an O2 and CO sensor, Bluetooth® interface, mains unit, TÜV tested and certified modular flue gas probe, replacement dirt filter, testo fast printer, replacement thermal paper, and a testo 805i infrared thermometer and system case
  • testo 330-2 LX flue gas analyzer with fresh air valve to protect the CO measuring cell and to extend the CO measuring range to 15,000 ppm
  • Single-hose connection: just one hand movement is needed to securely connect all the channels for flue gas measurement (gas paths, draught, temperature probe integrated into the flue gas probe)
  • For the most important measurements for heating systems: the testo 330-2 LX flue gas analyzer tested and certified by the German Technical Safety Standards Authority (TÜV) is supplied with an O2 and CO sensor, TÜV tested and certified modular flue gas probe, testo fast printer, system case, and other practical accessories. The testo 805i infrared thermometer with smartphone operation is also included in the purchase.
    The testo 330-2 LX is the professional flue gas analyzer which meets the highest requirements and is able to fulfil any measurement task on gas, oil and solid fuel systems. The testo 805i infrared thermometer operated by smartphone provides non-contact IR-measurement of the surface temperature.


    testo 330-2 LX anniversary set in detail


    testo 330-2 LX flue gas analyzer, tested and certified by the German Technical Safety Standards Authority (TÜV) in accordance with the first German Federal Immission Control Ordinance (BImSchV) and EN 50379, Parts 1 to 3:
    •  High-quality long-life measuring cells: sophisticated sensors for O2 and CO are included in the scope of delivery
    • 5-year warranty without a maintenance contract on O2 and CO sensor The sensors have a service life of up to 6 years. This means at least one sensor replacement is saved in the course of a normal operating life
    • Free testo flue gas App for iOS and Android devices (available in the AppStore and Play Store). System requirements: iOS 7.1 or newer, Android 4.3 or newer; mobile terminal device with Bluetooth® 4.0
    • With its automatic fresh air dilution, the testo 330-2 LX offers a high level of reliability when setting solid fuel and oil systems and protects the sensors up to 15,000 ppm CO content
    • Integrated draught and gas zeroing without probe removal: the probe can remain in the flue during zeroing Logger function for easy long-term recording of the measurement profile, large memory for up to 500,000 readings
    • Pressure measurement up to 300 hPa Integrated magnets for easy fixing during the measuring process Condensate trap: easy-to-empty collection vessel in the instrument
    • User-defined fuels IrDa/Bluetooth® interface for data transfer to smartphone/laptop/printer ZIV driver for standard industry software Integrated customer data memory

    Modular flue gas probe, tested and certified by the German Technical Safety Standards Authority (TÜV):

    • On the TÜV-tested and certified modular flue gas probe with 180 mm long probe shaft, the flue gas path and temperature channel can easily be connected to the measuring instrument by means of a practical bayonet lock
    • The probe shaft is really easy to replace, thanks to the quick-change click system on the handle
    • The thermocouple NiCr-Ni, which is integrated in the probe shaft, enables temperatures up to 500 °C to be measured

    testo 805i – Infrared thermometer operated by smartphone:

    • In combination with your smartphone or tablet, you can measure and check surface temperatures without contact using the infrared thermometer, e.g. on underfloor heating and radiators
    • The measuring point is clearly marked out with the 8-point laser circle, which means you always know exactly what you are measuring
    • Measurement data is transmitted wirelessly from the infrared thermometer to the testo Smart Probes App and can be viewed conveniently on mobile terminal devices – either as a diagram or in table form.
    • The App allows for quick image documentation with measuring value and measurement spot marking. The measurement data log can be emailed directly as a PDF or Excel file Free testo Smart Probes App for iOS and Android devices (available in the AppStore and Play Store). System requirements: iOS 7.1 or newer, Android 4.3 or newer; mobile terminal device with Bluetooth® 4.0
    • testo fast printer IrDa: The testo fast printer with IrDa and infrared interface saves your measuring values black on white. It enables immediate printout of readings, including date and time

    testo 330-2 LX flue gas analyzer with O2 and CO sensor, Bluetooth® interface, rechargeable battery and calibration protocol (0632 6034 71) Mains unit for connection to the testo 330-2 LX flue gas analyzer (0554 1096) Modular flue gas probe 180 mm, Ø 8 mm, Tmax. 500 °C; TÜV tested and certified; 2.2 m hose (0600 9760) Replacement dirt filter for modular flue gas probe; 10 pieces (0554 3385) testo 805i infrared thermometer operated by smartphone, including batteries and calibration protocol (0560 1805) testo fast printer IrDa with wireless infrared interface, 1 roll of thermal paper and 4 mignon batteries (0554 0549) Replacement thermal paper for printer, indelible ink, 6 rolls (0554 0568) System case for instrument, probes and accessories; height 130 mm (0516 3300)
