testo 330i LX anniversary set - Flue gas analyzer (O2, CO) in a system case

Order-Nr.  0563 6035 70

  • 5-year warranty without a maintenance contract on O2 and CO sensors

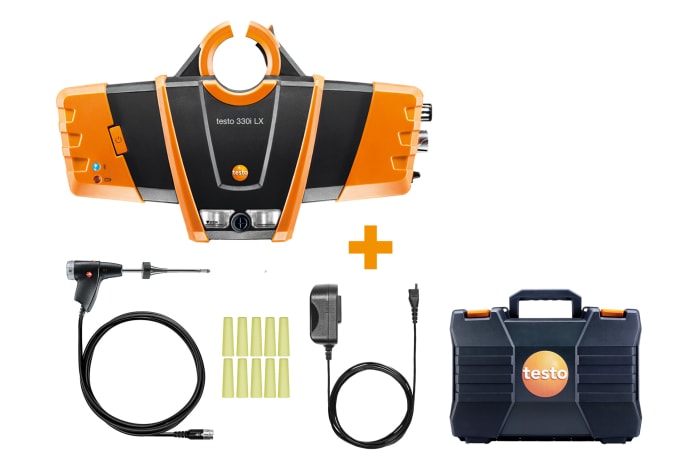

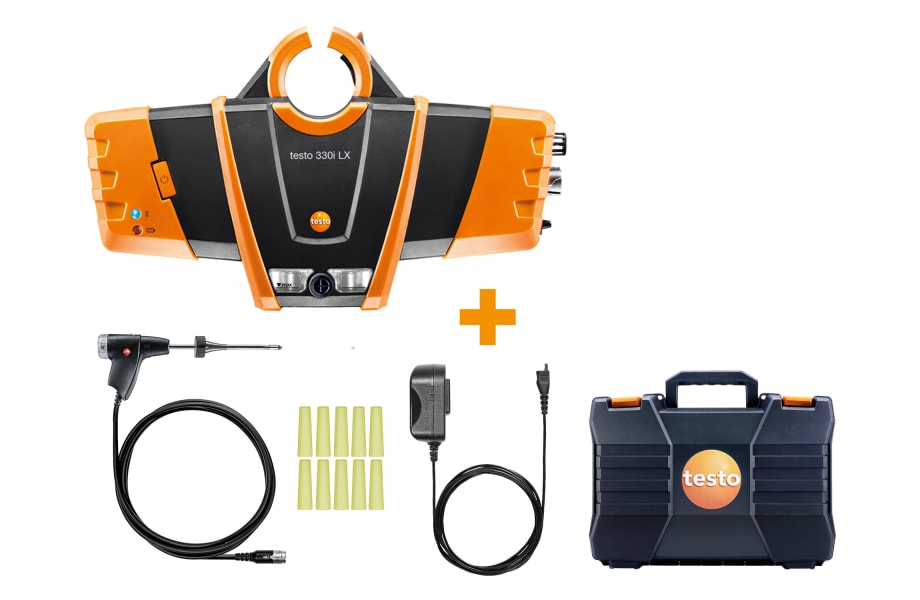

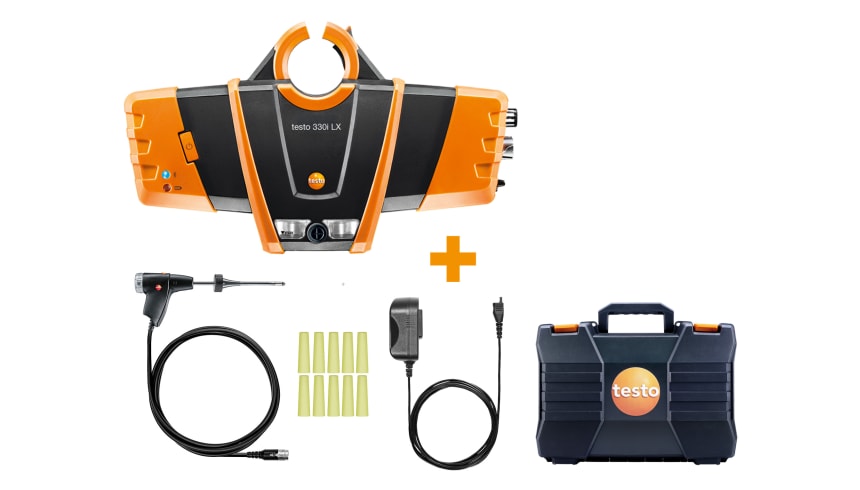

  • Included in the anniversary set: testo 330i LX flue gas analyzer, including O2 and CO sensor, Bluetooth® interface, USB mains unit, basic flue gas probe, replacement dirt filter, and system case

  • Paperless documentation and report generation on site via smartphone App

  • Operation independent of measuring location via free smartphone App

Flue gas analysis with no stress, paper or shaky probes – the testo 330i LX flue gas analyzer operated by smartphone App makes this possible. The smart anniversary set for measurements on gas, oil and solid fuel systems provides you with the testo 330i LX flue gas analyzer with O2 and CO sensor, along with additional practical accessories.

Product Description

In order to commission and service heating systems as quickly and thoroughly as possible, you need the appropriate flue gas analyzer. The testo 330i LX combines the proven measuring technology of its predecessor, the testo 330 LL, with smart handling.

testo 330i LX anniversary set in detail

testo 330i LX flue gas analyzer, tested and certified by the German Technical Safety Standards Authority (TÜV) in accordance with the first German Federal Immission Control Ordinance (BImSchV) and EN 50379, Parts 1 to 3:
  • 5-year warranty without a maintenance contract on O2 and CO sensor
  • Smart handling: operation of the analyzer and the display and documentation of readings are implemented wirelessly via the testo 330i App on your smartphone. The flue gas analyzer is really easy to control remotely via Bluetooth®, from a distance of up to 10 metres. Once you have finished the measurement, you can add comments or photos to the measurement protocol and send it to your customer or the office via e-mail
  • Free testo 330i App for iOS and Android devices (available in the AppStore and Play Store). Requirements: iOS 7.1/Android 4.3 or newer; mobile terminal device with Bluetooth® 4.0
  • Long-life sensors with a service life of up to 6 years that can be replaced by users. This saves at least one sensor replacement over the instrument's normal operating life
  • Integrated draught and gas zeroing without removing the probe – the probe can remain in the flue during zeroing
  • Fresh air dilution when a CO threshold value is exceeded up to 15,000 ppm
  • Built-in magnets enable the flue gas analyzer to be attached to the burner/boiler quickly
Basic flue gas probe:
  • On the compact basic flue gas probe with 180 mm long probe shaft, the flue gas path and temperature channel can easily be connected to the measuring instrument by means of a practical bayonet lock
  • The thermocouple NiCr-Ni, which is integrated in the probe shaft, enables temperatures up to 500 °C to be measured


Delivery Scope

  • testo 330i LX flue gas analyzer with long-life gas sensors, 3 slots and integrated draught and gas zeroing. Includes O2 and CO sensor, rechargeable battery and calibration protocol (0632 6035 70)
  • Mains unit for connection to the testo 330i LX flue gas analyzer (0554 1096)
  • Compact basic flue gas probe, 180 mm, Ø 6 mm, Tmax. 500 °C; 1.5 m hose, including dirt filter and cone for fixing (0600 9740)
  • Replacement dirt filter for compact flue gas probe; 10 pieces (0554 0040)
  • System case with spacious compartments and special inserts for analyzer and accessories, such as the mains unit, testoFix probe mount and probes. Dimensions (W x H x L): 520 x 130 x 400 mm (0516 3302)
