In order to commission and service heating systems as quickly and thoroughly as possible, you need the appropriate flue gas analyzer. The testo 330i LX combines the proven measuring technology of its predecessor, the testo 330 LL, with smart handling.

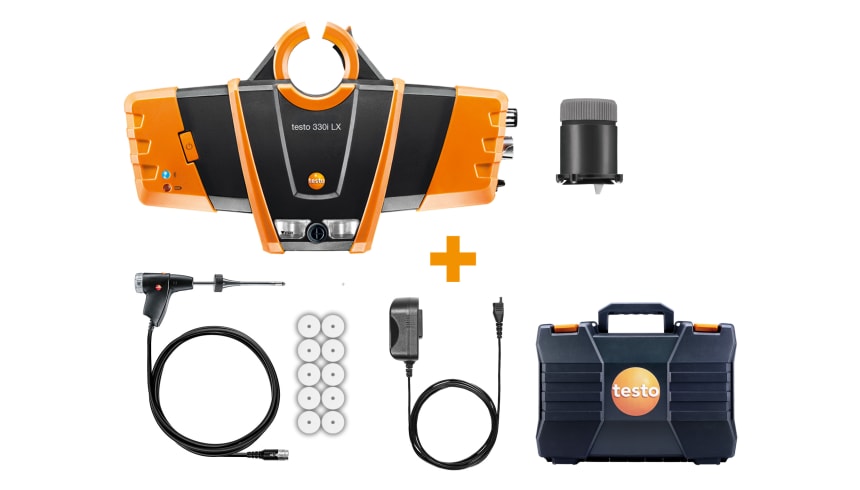

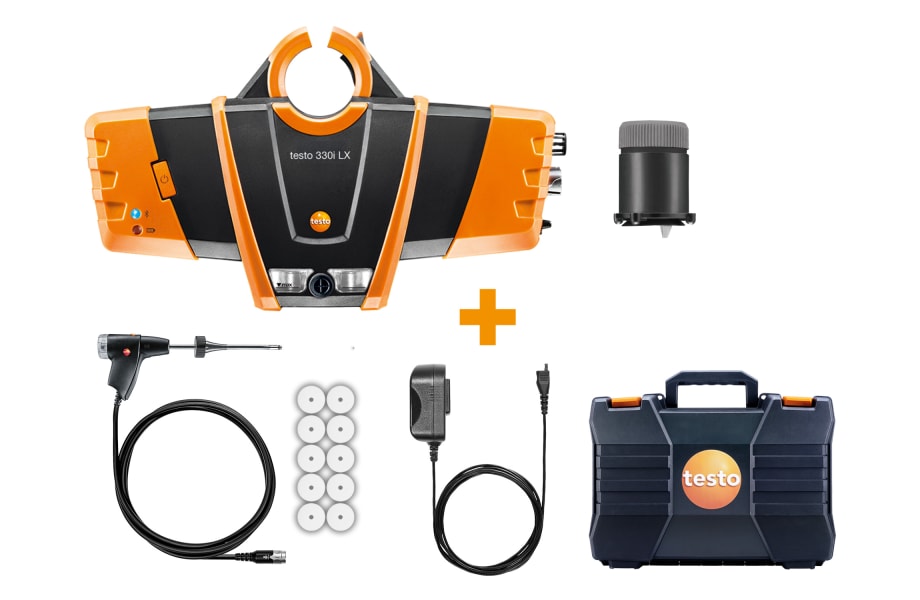

testo 330i LX anniversary set in detail
testo 330i LX flue gas analyzer, tested and certified by the German Technical Safety Standards Authority (TÜV) in accordance with the first German Federal Immission Control Ordinance (BImSchV) and EN 50379, Parts 1 to 3:
- 5-year warranty without a maintenance contract on O2 and CO sensor
- Smart handling: operation of the analyzer and the display and documentation of readings are implemented wirelessly via the testo 330i App on your smartphone. The flue gas analyzer is easy to control remotely via Bluetooth®, from a distance of up to 10 metres. Once you have finished the measurement, you can add comments or photos to the measurement protocol and send it to your customer or the office via e-mail
- Free testo 330i App for iOS and Android devices (available in the AppStore and Play Store). Requirements: iOS 7.1/Android 4.3 or newer; mobile terminal device with Bluetooth® 4.0
- Long-life sensors with a service life of up to 6 years that can be replaced by users. This saves at least one sensor replacement over the instrument's normal operating life
- Integrated draught and gas zeroing without removing the probe – the probe can remain in the flue during zeroing
- Fresh air dilution when a CO threshold value is exceeded up to 15,000 ppm
- Built-in magnets enable the flue gas analyzer to be attached to the burner/boiler quickly
Modular flue gas probe, tested and certified by the German Technical Safety Standards Authority (TÜV):
- On the TÜV-tested and certified modular flue gas probe with 180 mm long probe shaft, the flue gas path and temperature channel can easily be connected to the measuring instrument by means of a practical bayonet lock
- The probe shaft is really easy to replace, thanks to the quick-change click system on the handle
- The thermocouple NiCr-Ni, which is integrated in the probe shaft, enables temperatures up to 500 °C to be measured
testoFix probe mount:
- For quick and secure attachment of the flue gas probes to the flue gas pipe – without any tool or cone at all
- Also serves as an attachment for the testo 330i LX flue gas analyzer
testo 330i LX flue gas analyzer with long-life gas sensors, 3 slots and integrated draught and gas zeroing. Includes O2 and CO sensor, rechargeable battery and calibration protocol (0632 6035 70) Mains unit for connection to the testo 330i LX flue gas analyzer (0554 1096) Modular flue gas probe 180 mm, Ø 8 mm, Tmax. 500 °C; TÜV tested and certified; 2.2 m hose (0600 9760) Replacement dirt filter for modular flue gas probe; 10 pieces (0554 3385) testoFix probe mount for flue gas probes with Ø 8 mm (0554 3006) System case for measuring instrument, probes and accessories. With removable bottom insert for more storage room, dimensions (W x H x L): 520 x 180 x 400 mm (0516 3303)
