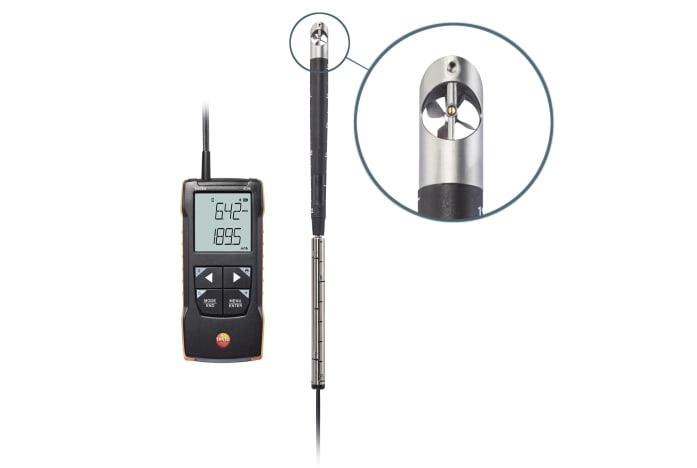

    testo 416 - Digital 16 mm vane anemometer with App connection

    0563 0416
  1. Simple, fast and precise flow measurement and volume flow calculation in the ventilation duct
  2. More flexibility for duct measurements with the cable-connected telescopic probe (maximum length 850 mm)
  3. Fast in-app (duct) configuration, graph history, second screen and measurement data memory in the testo Smart App
  4. Timed and point mean value calculation
  5. The compact 16 mm vane anemometer testo 416 with telescopic probe and App connection is ideal for simple, fast and precise determination of flow velocity and volume flow in ventilation ducts of air conditioning and ventilation systems. The connection to the testo Smart App enables configuration, display (also as second screen) and storage as well as documentation of the measured values directly in the App.
    • not available

      testo 416 - Flow velocity measurement in ventilation ducts

      To the video

    • not available

      Product registration

      When you register your product, we will extend the regular manufacturer's warranty by one year.

      Register now

    With the compact 16 mm vane anemometer testo 416 with telescopic probe and App connection, you can carry out flow measurements in the ventilation ducts of air conditioning and ventilation systems easily, quickly and precisely. The integrated telescope can be extended up to 850 mm, making it easier to work overhead or in large diameter ducts. To ensure that you have all the relevant information at your fingertips, the testo 416 automatically calculates time and point average values as well as the volume flow rate. And thanks to the compact design and the robust housing, the vane anemometer can also stand it if conditions get a little rougher at times. Configuration of the measuring instrument, display and storage of measured values as well as documentation are all particularly convenient with the testo Smart App. This also turns your smartphone into a second display.

    • testo 416 - 16 mm vane anemometer with App connection, fixed telescope (max. 850 mm)
    • Transport bag
    • Calibration protocol
    • 3 x AA batteries

    Velocity - Vane

    Measuring range
    0.6 to 40 m/s
    Accuracy
    ±(0.2 m/s + 1.0 % of mv)
    Resolution
    0.1 m/s

    General technical data

    Weight
    323 g
    Dimensions
    135 x 60 x 28 mm
    Operating temperature
    Probe: -10 to +70 °C
    -10 to +50 °C
    Product-/housing material
    ABS + PC / TPE
    Cable length
    1.5 m
    Diameter probe shaft
    16 mm
    Protection class
    IP20
    Length probe
    329 mm
    Battery life
    60 h
    Battery type
    3x AA
    Storage temperature
    -10 to +50 °C
