WBGT kit for universal IAQ measuring instrument testo 400

Order-Nr.  0618 7220

  • For determining Wet Bulb Globe Temperature (WBGT)

  • Reliable assessment of workplaces exposed to heat according to ISO 7243 and DIN 33403-3

  • For measurements in buildings and outdoor areas (observe protection class IP 40)

  • In the kit: Globe thermometer (TC Type K), ambient temperature probe and humidity temperature probe (both Pt100), tripod, case

Reliably and precisely evaluate heat load at workplaces: In combination with the universal IAQ measuring instrument testo 400, the kit allows you to determine the Wet Bulb Globe Temperature (WBGT). The kit is ideal for use in the steel and construction industries, at sports events and at workplaces with high heat irradiation.

Product Description

Heat load at workplaces: In order to be able evaluate the length of time a person can remain at a health-hazardous workplace, the WBGT index (Wet Bulb Globe Temperature) is recommended.

With the WBGT kit, you are best equipped for the evaluation of heat-affected workplaces based on ISO 7243 and DIN 33403-3. The kit is ideal for determining the Wet Bulb Globe Temperature – because it can be used to precisely measure all relevant climate parameters such as humidity temperature, ambient/air temperature and radiant heat.

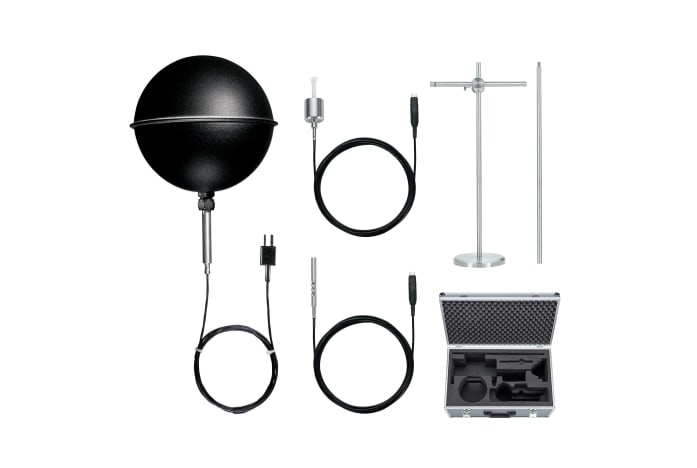

Delivery Scope

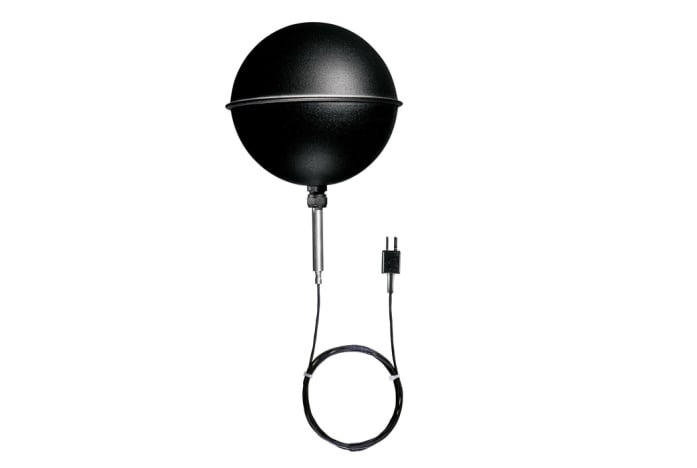

  • Globe thermometer (TC Type K) with fixed cable

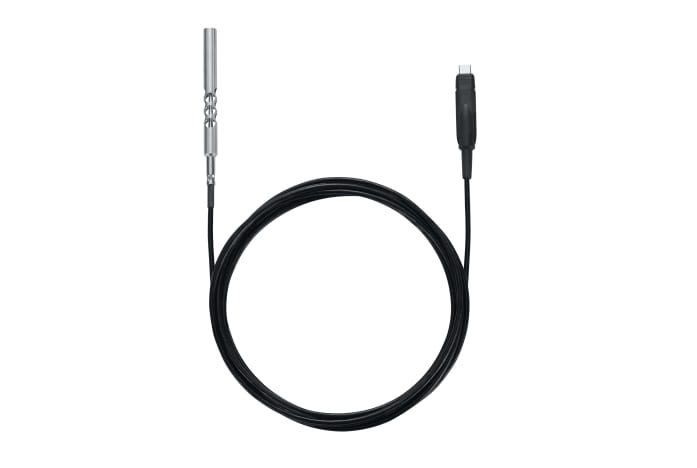

  • Ambient temperature probe (PT100) with fixed cable

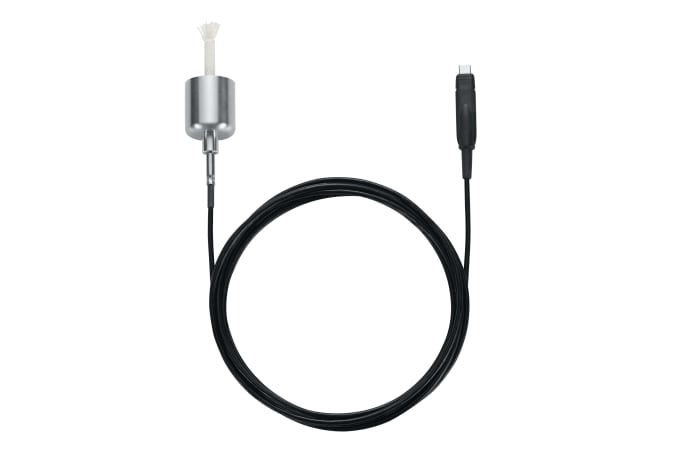

  • Humidity temperature probe (Pt100) with fixed cable

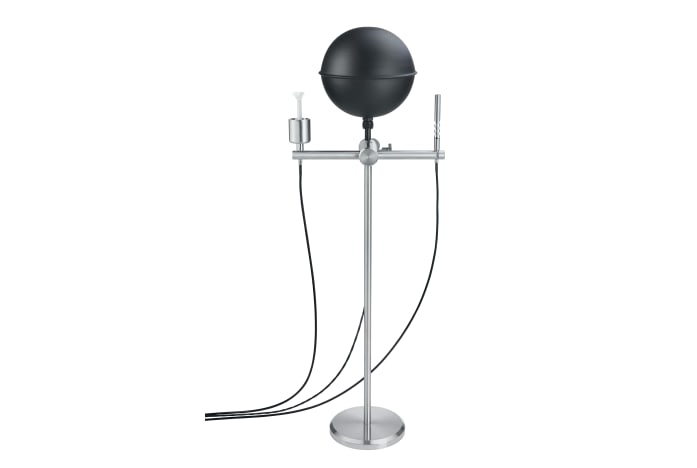

  • Tripod

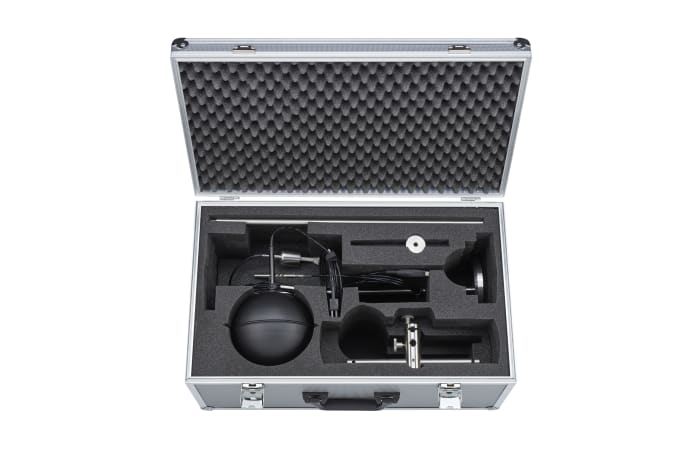

  • Case
Temperature - Pt100

Measuring range

10 to +60 °C (ambient temperature probe)

5 to +40 °C (humidity/temperature probe)

Accuracy

±(0.3 °C + 0.3 % of mv) (10 to +60 °C) (ambient temperature probe)

±(0.3 °C + 0.3 % of mv) (5 to +40 °C) (humidity/temperature probe)

Resolution

0.01 °C (ambient temperature probe)

0.01 °C (humidity/temperature probe)

Temperature - TC Type K (NiCr-Ni)

Measuring range

0 to +120 °C

Accuracy

Class 1 ¹⁾

Resolution

0.01 °C

1) According to standard EN 60584-2, the accuracy of Class 1 refers to -40 to +1000 °C (Type K), Class 2 to -40 to +1200 °C (Type K), Class 3 to -200 to +40 °C (Type K).

General technical data

Weight

9700 g

Dimensions

575 x 340 x 270 (LxWxH) (incl. case)

Cable length

3 m

Product colour

silver

*Cable length per probe
