Modular flue gas probe, 300 mm, Ø 6 mm, Tmax 500°C

Order-Nr.  0600 9763

  • Easy probe shaft change via quick-change click system

  • Flue gas path and temperature channel can be connected to the instrument via a bayonet lock

  • Integrated dirt filter protects instrument and sensors

  • Integrated thermocouple probe for temperature measurements up to 500°C

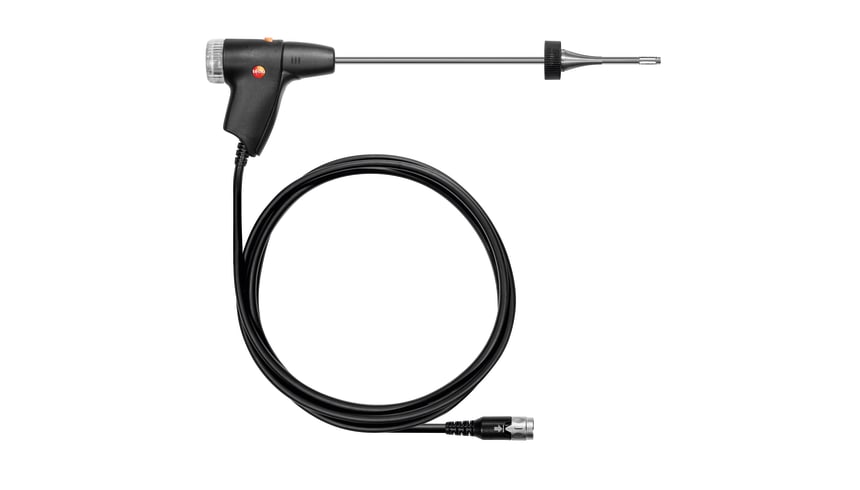

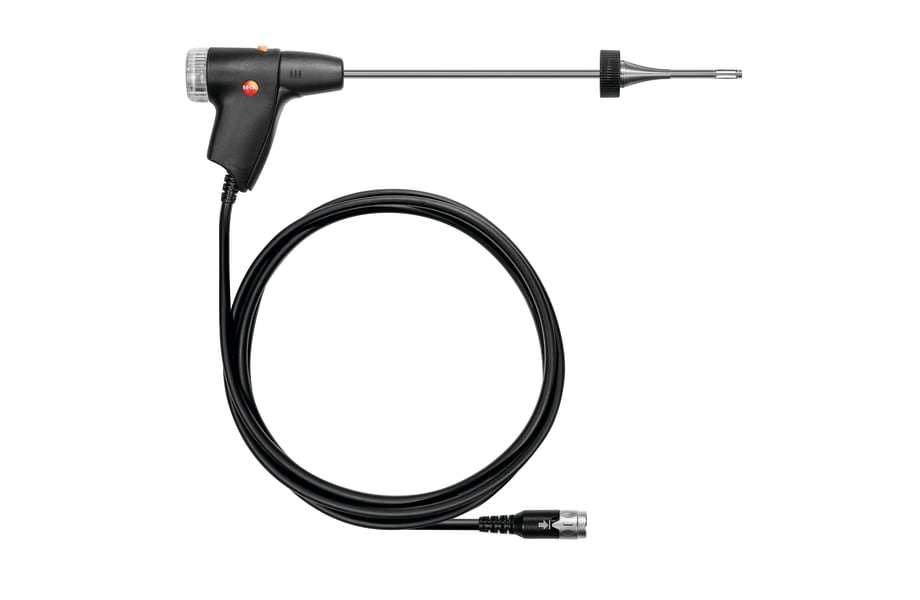

Modular flue gas probe with 300 mm long probe shaft, including dirt filter and thermocouple. The quick-change click system enables quick, flexible replacement of the probe shaft.

Product Description

The modular flue gas probe with 300 mm long probe shaft features a quick-change click system on the handle, which enables really easy replacement of the probe shaft. The thermocouple NiCr-Ni, which is integrated into the probe shaft, enables temperature measurement up to 500°C. Flue gas path and temperature channel can be conveniently connected to the measuring instrument via a practical bayonet lock. In addition, a dirt filter protects the instrument and its sensors from contamination.



Delivery Scope

Modular flue gas probe 300 mm, including dirt filter, cone for fixing, thermocouple NiCr-Ni.
General technical data

Length probe shaft

300 mm

Cable length

2.2 m

Diameter probe shaft

6 mm

Product colour

Black

Temperature maximum

500 °C

Diameter

6 mm

Weight

532 g
