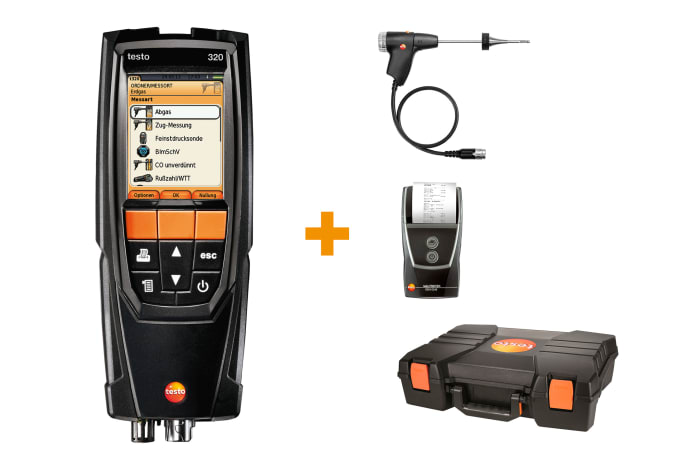

testo 320 flue gas analysis set - Flue gas measurement on oil and gas systems

Order-Nr.  0563 3220 70

  • Included in the set: testo 320 flue gas analyzer including O2 and CO sensor (without H2 compensation), USB mains unit, compact basic flue gas probe 180 mm in length, replacement dirt filters, pressure connection set, infrared printer and professional instrument case

  • 6 applications with just one instrument: flue gas measurement, flue draught measurement, pressure measurement, gas leak detection, ambient CO measurement, differential temperature measurement

  • Self-explanatory menu guidance with standardized measuring procedures for quick, easy handling

  • TÜV-tested according to EN 50379, Parts 1 - 3

Determining flue gas parameters, temperature measurement on radiators, CO measurement in the heated environment and pressure measurement on burners: the testo 320 flue gas analyzer means you have all the important values involving oil and gas systems with just one measuring instrument. In the set, you get the testo 320 with practical accessories.

Product Description

The testo 320 flue gas analyzer is a reliable companion for anyone who installs, checks and maintains oil and gas systems: this professional allrounder enables you to take all the relevant measurements with just one instrument. The flue gas analyzer's sturdy, high-quality design means it can meet all practical requirements and is really easy to operate.


testo 320 set in detail

testo 320 flue gas analyzer, TÜV-tested according to EN 50379, Parts 1 - 3:
  • Flue gas analysis on heating systems: the testo 320 flue gas analyzer is equipped with two sensors – an O2 and a CO sensor (without H2 compensation). In the case of CO measurement, the measuring range goes up to 4,000 ppm
  • Self-explanatory menu guidance makes operation simpler and your job easier. Thanks to the high-resolution colour display, the readings are easy to read out even in poor light conditions. The flue gas analyzer can store up to 500 measurement protocols. The free Excel tool enables you to export your measurement protocols to Excel via mini-USB
  • When you purchase the flue gas analyzer, you get a 2-year warranty (for the instrument, probe and O2/CO sensor)
  • Changing probes is easy: the probes can be changed by the user. This means you have the option to order other probes specifically required for your flue gas analysis (e.g. multi-hole probe, dual wall clearance probe, flexible flue gas probe)
  • Single-hose connection: just one hand movement is needed to securely connect all channels for flue gas measurement via the probe coupling (gas paths, draught, temperature probe integrated in the flue gas probe)
  • Long service life thanks to the long-life Li-ion rechargeable battery
  • Built-in magnets enable the flue gas analyzer to be attached to the burner/boiler quickly
  • Integrated condensate trap – easy to empty
Compact basic flue gas probe:
  • On the basic flue gas probe with 180 mm long probe shaft, the flue gas path and temperature channel can easily be connected to the measuring instrument via a practical bayonet lock
  • The compact basic flue gas probe is equipped with a dirt filter which protects the measuring instrument and its sensors
  • The thermocouple NiCr-Ni, which is integrated in the probe shaft, enables temperature measurement up to 500°C
Pressure connection set:
  • The pressure connection set enables the measuring instrument to be used to measure gas or air pressure. To do this, the hoses are attached to the test nipple of the measuring point and connected to the flue gas analyzer via the measuring instrument adapter
IrDa infrared printer:
  • The infrared printer preserves your readings in black and white. It enables immediate printout of readings, including date and time



Delivery Scope

  • testo 320 flue gas analyzer, including O2/CO sensor without H2 compensation, including calibration protocol (0632 3220)
  • USB mains unit for connection to the testo 320 flue gas analyzer (0554 1105)
  • Compact basic flue gas probe, 180 mm, Ø 6 mm, Tmax 500°C (0600 9740)
  • Replacement dirt filters for compact flue gas probe; 10 items (0554 0040)
  • Pressure connection set with 2 silicone hoses (Ø 6 mm and Ø 4 mm, each 1 m long) and measuring instrument adapter (0554 1203)
  • IrDa infrared printer with wireless infrared interface, 1 roll of thermal paper and 4 mignon batteries (0554 0549)
  • Professional instrument case for instrument, probes and accessories; height 130 mm (0516 3300)
Differential Pressure - Piezoresistive

Measuring range

±10000 Pa

Accuracy

±0.3 Pa (0 to 9.99 Pa) plus ±1 Digit

±3 % of mv (10 to 10000 Pa) plus ±1 Digit

Flue gas O₂

Measuring range

0 to 21 Vol.%

Accuracy

±0.2 Vol.%

Resolution

0.1 Vol.%

Reaction time t₉₀

< 20 s

Flue gas CO (with H₂-compensation)

Measuring range

0 to 8000 ppm

Accuracy

±10 ppm or ±10 % of mv (0 to 200 ppm)

±20 ppm or ±5 % of mv (201 to 2000 ppm)

±10 % of mv (2001 to 8000 ppm)

Resolution

1 ppm

Reaction time t₉₀

< 40 s

Flue gas COlow

Measuring range

0 to 500 ppm

Accuracy

±2 ppm (0 to 39.9 ppm)

±5 % of mv (40 to 500 ppm)

Resolution

0.1 ppm

Reaction time t₉₀

< 40 s

Flue gas Draught

Measuring range

-9.99 to +40 hPa

Accuracy

±0.02 hPa or ±5 % of mv (-0.50 to +0.60 hPa)

±0.03 hPa (+0.61 to +3.00 hPa)

±1.5 % of mv (+3.01 to +40.00 hPa)

Resolution

0.01 hPa with fine draught option 0.001 hPa

Temperature

Measuring range

-40 to +1200 °C

Accuracy

±0.5 °C (0 to +100.0 °C)

±0.5 % of mv (Remaining Range)

Resolution

0.1 °C (-40 to +999.9 °C)

1 °C (> +1000 °C)

Flue gas degree of effectivity, Eta (calculated)

Measuring range

0 to 120 %

Resolution

0.1 %

Flue gas loss (calculated)

Measuring range

0 to 99.9 %

Resolution

0.1 %

Flue gas CO₂ calculation (calculated from O₂)

Measuring range

0 to CO₂ max (Display range)

Accuracy

±0.2 Vol.%

Resolution

0.1 Vol.%

Reaction time t₉₀

< 40 s

Velocity / Volume flow

Measuring range

0.15 to 3 m/s

Resolution

0.1 m/s

Pressure measurement

Measuring range

0 to +300 hPa

Accuracy

±0.5 hPa (0.0 to 50.0 hPa)

±1 % of mv (50.1 to 100.0 hPa)

±1.5 % of mv (Remaining Range)

Resolution

0.1 hPa with fine pressure option 0.01 hPa

Flue gas CO (without H₂-compensation)

Measuring range

0 to 4000 ppm

Accuracy

±20 ppm (0 to 400 ppm)

±5 % of mv (401 to 2000 ppm)

±10 % of mv (2001 to 4000 ppm)

Resolution

1 ppm

Reaction time t₉₀

< 60 s

Ambient CO

Measuring range

0 to 500 ppm

Accuracy

±5 ppm (0 to 100 ppm)

±5 % of mv (> 100 ppm)

Resolution

1 ppm

with CO probe

Ambient CO₂

Measuring range

0 to 1 Vol.%

0 to 10000 ppm

Accuracy

±50 ppm or ±2 % of mv (0 to 5000 ppm)

±100 ppm or ±3 % of mv (5001 to 10000 ppm)

with ambient CO₂ probe

Gas leak measurement for combustible gases (via gas leak detection probe)

Measuring range

0 to 10000 ppm CH₄ / C₃H₈; Display range

Accuracy

Signal optical display (LED) audible signal via buzzer

Reaction time t₉₀

< 2 s

with gas leak detection probe

Temperature (via the fine pressure probe)

Measuring range

-40 to +1200 °C max. (dependent on probe)

Accuracy

±0.5 °C (-40 to 100 °C)

±0.5 % of mv (Remaining Range) plus probe accuracy

Resolution

0.1 °C

General technical data

Dimensions

240 x 85 x 65 mm

Operating temperature

-5 to +45 °C

Display size

240 x 320 pixels

Display function

Colour graphic display

Power supply

Battery: 3.7 V / 2,400 mAh; Mains unit: 6 V / 1.2 A

Maximum memory

500 Measurement values

Storage temperature

-20 to +50 °C

Weight

573 g

Ambient CO measurement in the heated environment

Carbon monoxide (CO) is a colourless, odourless and taste-free gas, but also poisonous. It is produced during the incomplete combustion of substances containing carbon (oil, gas, and solid fuels, etc.). If CO manages to get into the bloodstream through the lungs, it combines with haemoglobin thus preventing oxygen from being transported in the blood; this in turn will result in death through suffocation. This is why it is necessary to regularly check CO emissions at the combustion points of heating systems and the surroundings.

Measuring the flue gas parameters of the burner (CO, O2, and temperature, etc.)

The flue gas measurement for a heating system helps to establish the pollutants released with the flue gas (e.g. carbon monoxide CO or carbon dioxide CO2) and the heating energy lost with the warm flue gas. In some countries, flue gas measurement is a legal requirement. It primarily has two objectives:

  1. Ensuring the atmosphere is contaminated as little as possible by pollutants; and
  2. energy is used as efficiently as possible.

Stipulated pollutant quantities per flue gas volume and energy losses must never be exceeded. Measurement in terms of results required by law takes place during standard operation (every performance primarily using the appliance). Using a Lambda probe (single hole or multi-hole probe), the measurement is taken at the centre of flow in the connecting pipe (in the centre of the pipe cross-section, not at the edge) between the boiler and chimney/flue. The measured values are recorded by the flue gas analyzer and can be logged either for print out or transfer to a PC at a later stage.

Measurement is taken by the installer at commissioning, and if necessary four weeks later by the flue gas inspector/chimney sweep, and then at regular intervals by the authorised service engineer.

f

Ambient CO measurement in the heated environment

Carbon monoxide (CO) is a colourless, odourless and taste-free gas, but also poisonous. It is produced during the incomplete combustion of substances containing carbon (oil, gas, and solid fuels, etc.). If CO manages to get into the bloodstream through the lungs, it combines with haemoglobin thus preventing oxygen from being transported in the blood; this in turn will result in death through suffocation. This is why it is necessary to regularly check CO emissions at the combustion points of heating systems and the surroundings.

Measuring pressure on burners (nozzle pressure, gas flow pressure, etc.)

Standard readings taken during services of domestic heating systems include checking the gas pressure on the burners. This involves measuring the gas flow pressure and gas resting pressure. The flow pressure, also called supplied pressure, refers to the gas pressure of the flowing gas and resting pressure of the static gas. If the flow pressure for gas boilers is slightly outside the 18 to 25 mbar range, adjustments must not be made and the boiler must not be put into operation. If put into operation nonetheless, the burner will not be able to function properly, and explosions will occur when setting the flame and ultimately malfunctions; the burner will therefore fail and the heating system will shut down.

Measuring temperatures on radiators

When measuring the temperature on radiators, the flow and return temperatures are recorded in particular and assessed by the tradesman. The flow temperature is defined as the temperature of a thermal transfer medium (e.g. water) that the system is supplied with. The temperature of the medium flowing out of the system is accordingly called the return temperature. To prevent losses within the heat distribution system and achieve a better level of efficiency in modern, heating technology, spot recording of flow and return temperatures is necessary at certain radiator pipes or screw fittings. Implementation of relevant measures ultimately leads to hydraulic adjustment on the basis of knowledge about the flow and return temperatures. This defines a procedure with which every radiator or heating circuit of a flat radiator within a heating system is supplied at a set flow temperature with the precise amount of heat needed to achieve the ambient temperature required for the individual rooms. Flawed operating conditions will result in considerable excess consumption of electricity and heating energy.
