testo 417 set 1 - Vane anemometer set

0563 4171
  • Attachable measurement funnels make it ideal for volumetric flow measurement at ventilation outlets
  • Simple testing of incoming / outgoing air in controlled ventilation of living spaces
  • Important accessories included in the set: measurement funnels for poppet valves and ventilation grilles, along with a bag for storage
  • Product no longer available. Have you checked out its successor?
    Why not enjoy the benefits that it has to offer: >> To the product
    • testo-417-living-space-ventilation-02-2000x1500.jpg

      Determining the volume flow by funnel measurement

    The measurement of flow velocity and the correct calculation of volumetric flow at ventilation outlets can be a challenge. The turbulence created here and differing flow directions make correct measurement more difficult.

    The testo 417 vane anemometer and the testovent 417 measurement funnels provide you with perfect support for flow measurement at ventilation grilles and poppet valves. They ensure simple testing of incoming / outgoing air – such as in the controlled ventilation of living spaces.


    This is what the testo 417 vane anemometer offers


    The testo 417 vane anemometer with an integrated 100 mm vane measures flow velocity, volumetric flow and temperature at the same time. The measurement funnels contained in the set enable precise volumetric flow measurement at ventilation grilles. The calculated volumetric flow is shown directly on the vane anemometer's display. In addition, you can switch to the current temperature reading.

    The direction of flow, i.e. inflow or outflow, is also shown on the display. Timed and multi-point mean calculations provide an indicator of the average volumetric flow, flow velocity and temperature readings. The vane anemometer shows min./max. values and the hold function enables the current readings to be retained. The illuminated display allows you to carry out your measurements even in a dark environment.


    Ready to start measuring at poppet valves and ventilation grilles with the set


    This set means you are ready to get started: the testo 417 vane anemometer is simply attached to the testovent 417 measurement funnel for measurement at ventilation grilles or poppet valves. Once you have selected the measurement funnel factor on the vane anemometer, you can start your measurement.

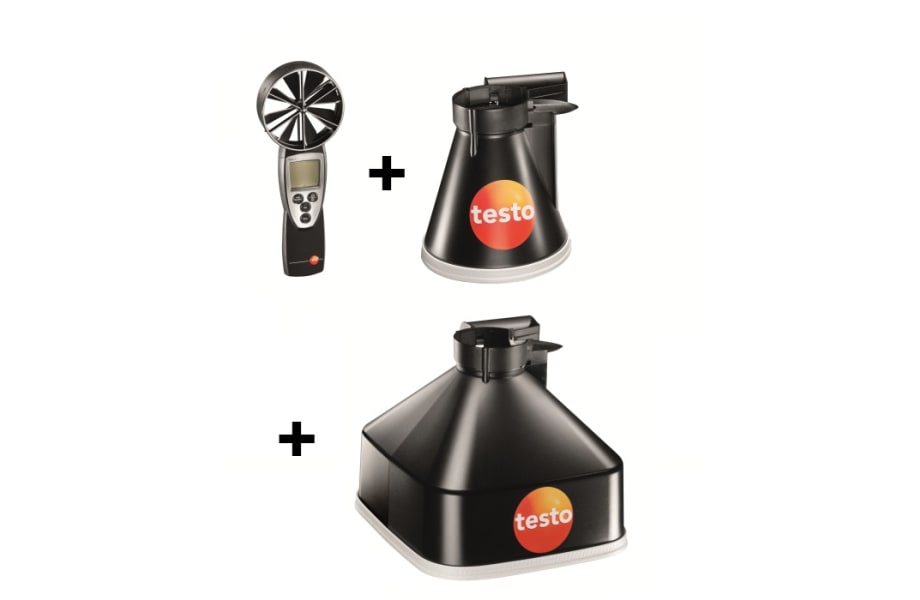

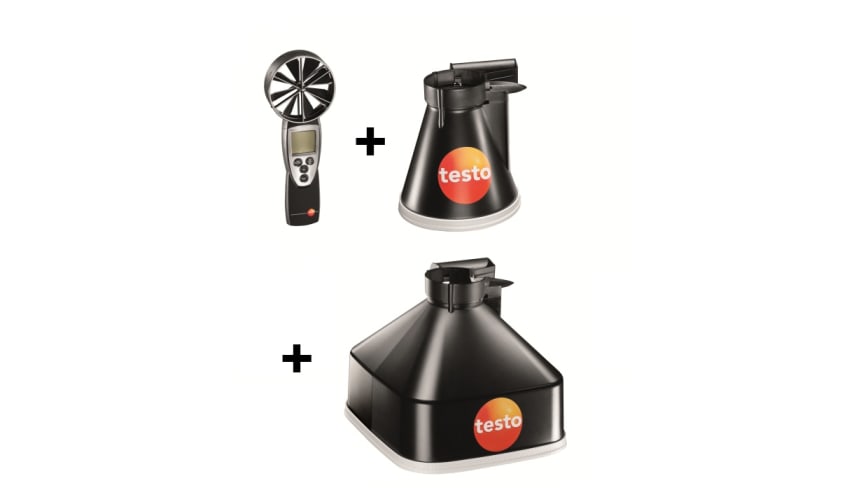

    The set comprises the testo 417 vane anemometer and the testovent 417 measurement funnels – one for poppet valves (diameter 200 mm) and one for ventilation grilles (330 x 330 mm). After the measurement, you can safely store or transport the measurement funnels in the bag.


    Scope of delivery


    • testo 417 vane anemometer with integrated 100 mm vane, including calibration protocol and battery
    • testovent 417 measurement funnel for poppet valves (diameter 200 mm)
    • testovent 417 measurement funnel for ventilation grilles (330 x 330 mm)
    • Bag for storing the testovent 417 measurement funnels

    Customers who viewed this product also viewed

  • Customers who viewed this product also viewed
    testo 410-2
    testo 410-2 - Vane anemometer
    • Permanently installed vane with a diameter of 30 mm
    • Measurement of air velocity, air temperature and humidity
    :
    0560 4102
  • Customers who viewed this product also viewed
    Testo 410
    testo 410-1 - Vane anemometer
    • Vane anemometer with permanently installed 30 mm vane
    • Measurement of air velocity and air temperature
    :
    0560 4101
  • Customers who viewed this product also viewed
    testo 400 air flow kit with hot wire probe
    testo 400 air flow kit with hot wire probe
    • Standard-compliant determination of the volume flow in ducts using grid measurements as per EN ISO 12599 and ASHRAE 111
    • Determination of the volume flow at outlets by measuring the reference pressure and entering the manufacturer-specific K-factor
    :
    0563 0400 71
  • Customers who viewed this product also viewed
    testo 400 air flow kit with 16 mm vane probe
    testo 400 air flow kit with 16 mm vane probe
    • Standard-compliant determination of the volume flow in ducts using grid measurements as per EN ISO 12599 and ASHRAE 111
    • Determination of the volume flow at outlets by measuring the reference pressure and entering the manufacturer-specific K-factor
    :
    0563 0400 72
  • Customers who viewed this product also viewed
    testo 440 16 mm Vane Kit
    testo 440 16 mm Vane Kit
    • Intuitive: clearly structured measurement menu for volume flow and determination of air velocity in ventilation ducts
    • Convenient: integrated telescope that can be extended to 0.85 m, with scaling, makes it easy to carry out measurements
    :
    0563 4401
  • Customers who viewed this product also viewed
    testo 440 Air Flow ComboKit 1 with Bluetooth®t 1 with Bluetooth
    testo 440 Air Flow ComboKit 1 with Bluetooth®
    • Intuitive: clearly structured measurement menu for volume flow and parallel determination of air velocity, humidity and temperature in ventilation ducts or at ventilation outlets
    • Clever: hot wire probe with telescope (0.85 m) – combine the vane probe (Ø 100 mm) with Bluetooth with the telescope for ceiling outlets or the funnel set for plate outlets (please order separately) as required
    :
    0563 4406
  • Customers who viewed this product also viewed
    testo 440 Air Flow ComboKit 2 with Bluetooth®
    testo 440 Air Flow ComboKit 2 with Bluetooth®
    • Intuitive: clearly structured measurement menu for volume flow and determination of air velocity, humidity and temperature in ventilation ducts or at ventilation outlets
    • Clever: vane probe (Ø 16 mm) with telescope (0.85 m) – combine the vane probe (Ø 100 mm) with Bluetooth with the telescope for ceiling outlets or the funnel set for plate outlets (please order separately) as required
    :
    0563 4407
  • Customers who viewed this product also viewed
    testo 440 Delta P Air Flow ComboKit 1 with Bluetooth®
    testo 440 delta P Air Flow ComboKit 1 with Bluetooth®
    • Intuitive: clearly structured measurement menu for volume flow and parallel determination of air velocity, differential pressure, humidity and temperature in ventilation ducts or at ventilation outlets
    • Space-saving: simply combine the universal Bluetooth handle with the 100 mm vane or hot wire probe head and the extendable telescope (1.0 m)
    :
    0563 4409
  • Customers who viewed this product also viewed
    testo 440 Delta P Air Flow ComboKit 2 with Bluetooth®
    testo 440 delta P Air Flow ComboKit 2 with Bluetooth®
    • Intuitive: clearly structured measurement menu for volume flow and parallel determination of air velocity, differential pressure, humidity and temperature in ventilation ducts, at ventilation outlets and in work rooms
    • Space-saving: combine the universal Bluetooth handle with the humidity/temperature probe head or extendable telescope (1.0 m). Vane probe heads (Ø 16 mm, Ø 100 mm) can simply be plugged onto the telescope
    :
    0563 4410
  • Customers who viewed this product also viewed
    testo 440 100 mm Vane Kit with Bluetooth®
    testo 440 100 mm Vane Kit with Bluetooth®
    • Intuitive: clearly structured measurement menu for volume flow and parallel determination of air velocity, humidity and temperature in ventilation ducts or at air outlets
    • Precise: combine the vane probe with Bluetooth with the telescope for ceiling outlets or the funnel set for plate outlets (please order separately) as required
    :
    0563 4403
  • Customers who viewed this product also viewed
    testo 417 kit 1
    testo 417 kit 1 - Vane anemometer with measurement funnels
    • Easy, fast and precise measurement of flow, volume flow and temperature at air inlets and outlets
    • Efficient regulation of balanced residential ventilation and fast documentation with the testo Smart App
    :
    0563 1417
  • Customers who viewed this product also viewed
    testo 417 kit 2
    testo 417 kit 2 - Vane anemometer with measuring funnels and flow straightener
    • Easy, fast and precise measurement of flow, volume flow and temperature at air inlets and outlets
    • Efficient regulation of balanced residential ventilation and fast documentation with the testo Smart App
    :
    0563 2417
  • Customers who viewed this product also viewed
    testo 417
    testo 417 - Digital 100 mm vane anemometer with App connection
    • Easy, fast and precise measurement of flow, volume flow and temperature at air inlets and outlets
    • Efficient regulation of balanced residential ventilation and fast documentation with the testo Smart App
    :
    0563 0417
  • Customers who viewed this product also viewed
    testo 416
    testo 416 - Digital 16 mm vane anemometer with App connection
    • Simple, fast and precise flow measurement and volume flow calculation in the ventilation duct
    • More flexibility for duct measurements with the cable-connected telescopic probe (maximum length 850 mm)
    :
    0563 0416
  • Temperature - NTC

    Measuring range
    0 to +50 °C
    Accuracy
    ±0.5 °C
    Resolution
    0.1 °C

    Velocity - Vane

    Measuring range
    +0.3 to +20 m/s
    Accuracy
    ±(0.1 m/s + 1.5 % of mv)
    Resolution
    0.01 m/s

    Volume flow

    Measuring range
    0 to +99999 m³/h
    0 to +440 m³/h (testo 417 in combination with funnel set (0563 4170))
    0.1 to +200 m³/h , preferred 0,1 to 100 m³/h (testo 417 in combination with funnel & flow straightener (0554 4172))
    Resolution
    1 m³/h (+100 to +99999 m³/h)
    0.1m³/h (0 to +99.9 m³/h)
