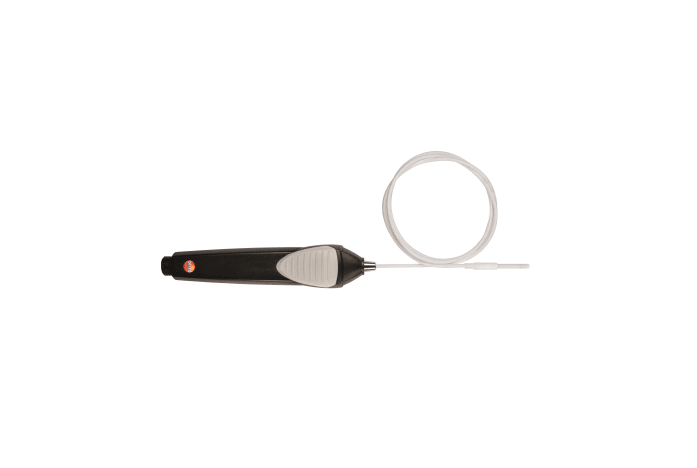

Pt100 flexible temperature probe

0614 0071
SAR 2 176
  • Pt100 immersion and penetration probe for temperature measurements
  • Flexible probe shaft
  • Easy to carry out measurements in places that are difficult to access
  • Measuring range: -100 to +265 °C
  • Product no longer available. Have you checked out its successor?
    Why not enjoy the benefits that it has to offer:
    >> To the product
    Please note that the successor product is only compatible with testo 400 or testo 440.

    The new Pt100 temperature probe is designed for immersion and penetration measurements. It features a flexible, 1000 mm long PTFE probe shaft, which enables temperature measurements even in places that are difficult to access. This makes it much easier to carry out measurements.

    The temperature probe is a digital probe with an intelligent calibration concept. You can adjust the probe using the EasyClimate software and achieve a zero-error display.


    Applications

    The flexible temperature probe is suitable (in conjunction with the measuring instrument) for the following industrial and laboratory applications, for example:
    • Monitoring temperature on engine test beds
    • Proof of temperature in the production and storage of sensitive products in places that are difficult to access
    • Monitoring process temperatures
    • Proof of temperature in the food industry (e.g. for frozen food)
    • Checking stationary temperature probes (e.g. in air-conditioning cabinets)


    Scope of delivery

    Pt100 flexible temperature probe with PTFE probe shaft including instructions for use.


    General technical data

    Length probe shaft
    1,000 mm
    Probe head diameter
    4 mm

    Temperature - Pt100

    Measuring range
    -100 to +265 °C
    Accuracy
    ±(0.15 °C + 0.05 % of mv) (0 to +100 °C)
    ±(0.3 °C + 0.3 % of mv) (-100 to -50.1 °C)
    ±(0.15 °C + 0.5 % of mv) (+100.01 to +265 °C)
    ±(0.15 °C + 0.2 % of mv) (-50 to -0.01 °C)
    Resolution
    0.01 °C
