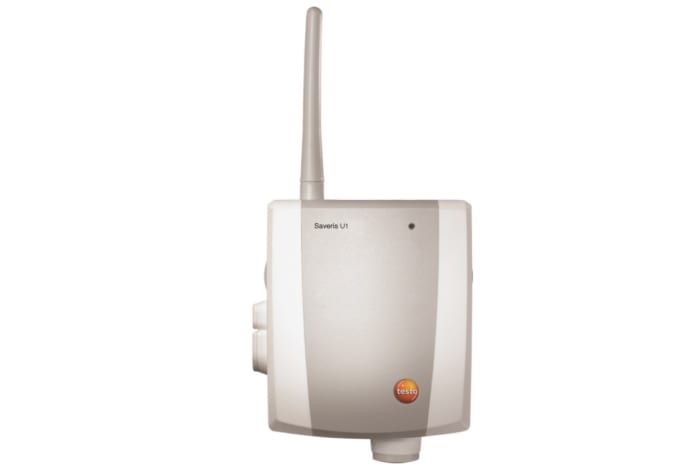

    testo Saveris U1 - Radio probe with current/voltage input

    0572 3250
    SAR 3 573
  1. Integration of many additional measurement parameters besides temperature and humidity
  2. Standardised interfaces for easy integration
  3. Flexible wireless data transfer
  4. High level of data security thanks to built-in rechargeable battery
  5. The 1-channel testo Saveris U1 radio probe / analog coupler allows the inclusion of other measurement parameters in the testo Saveris monitoring system, by integrating all transmitters with standardised current/voltage interfaces (e.g. 4 to 20 mA or 0 to 10 V).

    The testo Saveris U1 radio probe / analog coupler allows the inclusion of other measurement parameters in the testo Saveris monitoring system, by integrating all transmitters with standardised current/voltage interfaces (e.g. 4 to 20 mA or 0 to 10 V).

    This is the solution for highest accuracy and for special applications (high humidity, trace humidity, etc.) in compressed air, drying and air conditioning technology as well as in cleanroom applications.

    The testo Saveris U1 radio probe / analog coupler has a data memory for 6,000 readings.

    Please note: Saveris converter V 2.0 (order no. 0572 0258) is required for integrating Saveris radio probes into systems with base firmware V 1.X. For more information please contact your Testo partner.

    This instrument requires a power supply unit (not included).

    testo Saveris U1 radio probe with a current/voltage input, radio frequency 2.4 GHz.

    General technical data

    Weight
    240 g
    Dimensions
    85 x 100 x 38 mm
    Operating temperature
    5 to +45 °C
    Protection class
    IP54
    Radio frequency
    2.4 MHz
    Transmission distance
    approx. 100 m without obstruction at a frequency of 2.4 GHz
    Wall bracket
    included
    Measuring rate
    Standard 15 min, 1 min to 24 h can be set
    Battery type
    4 x type AA batteries
    Battery life
    Supply: Mains unit 6.3 V DC, 20 to 30 V DC max. 25 V AC
    Connection
    2 or 4-wire current/ voltage output
    Memory
    6,000 measurement values / channel
    Storage temperature
    -25 to +60 °C
