testo 300 NEXT LEVEL Longlife INDUSTRY Set 3 - Flue gas analyzer (O2, CO H2-compensated up to 30,000 ppm, NO-, NOlow-, COlow - can be retrofitted)

0564 3004 03
  • Intuitive, smart, efficient: intuitive measurement menus, fast-response Smart-Touch operation, efficient, wireless parallel measurement of up to four testo Smart Probes, practical second screen function, on-site documentation, e-mailing of reports
  • Including O2, CO H2 -compensated up to 30,000 ppm (NO-, NOlow-, COlow -sensor can be retrofitted)
  • High-quality sensor technology with up to 6 years' service life

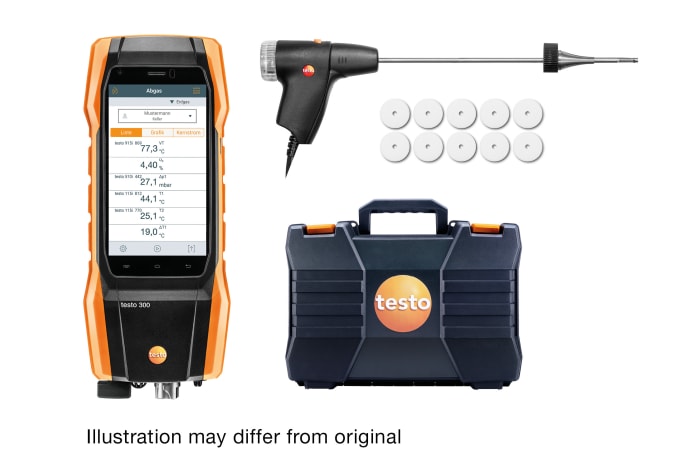

  • In the kit: testo 300 NEXT LEVEL Longlife flue gas analyzer, including O2, CO H2 -compensated sensor up to 30,000 ppm (NO-, NOlow-, COlow -sensor can be retrofitted), testo Bluetooth Connector, mains unit, modular flue gas probe, spare dirt filters, EasyHeat software, case

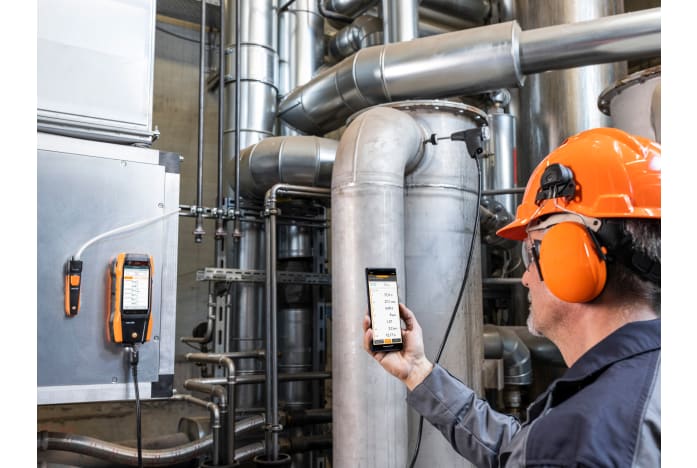

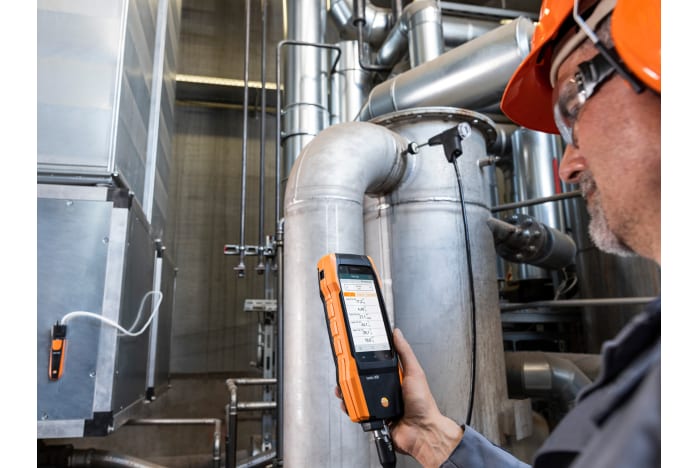

  • Carry out installation and maintenance work on industrial engines, burners, gas turbines and in thermal processes, using the flue gas analyzer with Longlife sensors. The TÜV-tested testo 300 NEXT LEVEL Longlife flue gas analyzer is supplied with O2, CO H2-compensated sensor up to 30,000 ppm (NO-, NOlow-, COlow -sensor can be retrofitted), TÜV-tested modular flue gas probe, testo Bluetooth® Connector, case and practical accessories.

    • testo 300 NEXT LEVEL Longlife flue gas analyzer with O2, CO H2-compensated sensor up to 30,000 ppm (NO-, NOlow-, COlow -sensor can be retrofitted) (0633 3004 88)
    • USB mains unit, including cable (0554 1106)
    • Modular flue gas probe 180 mm, Ø 8 mm, Tmax. 500°C; TÜV tested and certified; 2.2 m hose (0600 9760)
    • testo Bluetooth® Connector (0554 3004)
    • Spare dirt filters for modular flue gas probe; 10 off (0554 3385)
    • Free download EasyHeat PC software (0554 3332)
    • Instrument case (height: 130 mm) for instrument, probes and accessories (0516 3300)

    CO probes

    Flue gas probes

    Further probes

    Temperature probes


    Flue gas measurement on heating systems

    Ideal for measurements involving heating systems:
    • high-quality Longlife sensors with a service life of up to 6 years, smart-touch operation, clearly structured measurement menus, creation of documentation on site, e-mailing of reports, large HD display, robust housing
    Further areas of application:
    • gas flow pressure measurement*, gas pipe test*, differential temperature measurement (flow and return temperature on heating systems)*, ambient CO measurement*, flue draught measurement on heating systems*, integrated 4 Pa measurement for combustion equipment
    * Please note: additional probes or accessories are required for these measurements and have to be ordered separately.

    Application testo 300

    • The Testo ZIV driver is used to connect the testo 300, testo 320 and testo 330 measuring instruments to an application program (sweeping district administration program) according to the interface defined by the Zentralverband des Schornsteinfegerhandwerks (ZIV, Central Association of Chimney Sweeps) in version 1.0 of 01. August 2012, in version 2.0 of 13. February 2017 as well as version 3.0 from 02. July 2021. Please check with the manufacturer of your application program as to whether this interface is supported.
    • Firmware / App testo 300(v1.10.7971, BTG 0.3.8, App 12.7.19.17176, 43.94 MB)
    • USB driver for the following devices with USB port: * USB Interface testo 174 / 177 - T + H * testo 300 / 320 / 330 / 330i / 335 / 340 / 350 * testo 435 * testo 556 / 560 / 570 / 580 * testo 635 * testo 735 * testo 845
