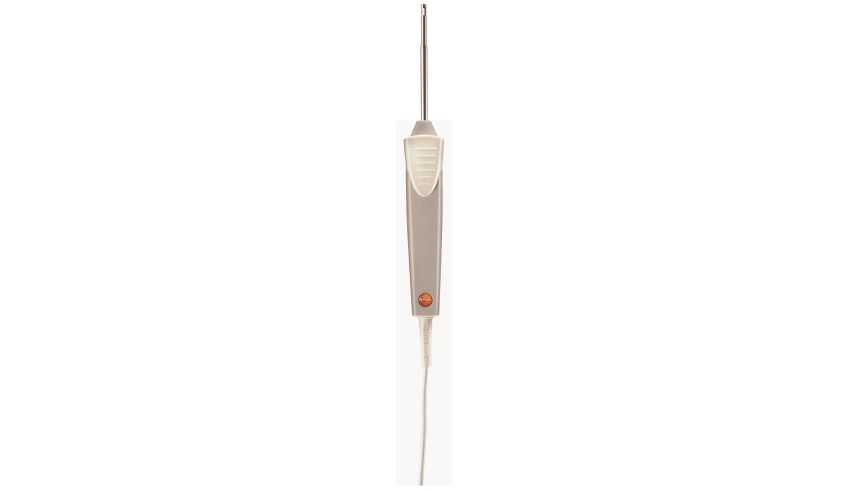

Precise air probe (NTC) with PTB approval

0614 1712

Precise air probe (NTC) - with PTB approval

0614 1712

Precise air probe (NTC) - with PTB approval

The robust air probe with PTB approval is suitable (with the corresponding measuring instrument, e.g. testo 112) for measuring air temperature. The temperature probe is suitable for official inspection measurements, in so far as you order the initial conformity assessment when purchasing (see accessories).

Short response time thanks to the exposed sensor
with PTB approval
For measuring air temperature e.g. in walk-in refrigerators, refrigerated counters, deep-freezers
NTC temperature sensor

General technical data

General technical data	Weight 106 g
	Dimensions 1250 mm
	Length probe shaft tip 50 mm
	Diameter probe shaft 5 mm
	Diameter probe shaft tip 4 mm
	Cable length 1.1 m
	Fixed cable yes
	Product-/housing material ABS / TPE / PUR
	Length probe shaft 115 mm
	Product colour grey; Black; silver

Temperature - NTC

Temperature - NTC	Measuring range -25 to +120 °C
	Accuracy ±0.5 % of mv (+100 to +120 °C) ±0.2 °C (-25 to +74.9 °C) ±0.4 °C (Remaining Range)
	Reaction time 60 s

1 x air probe (NTC) with PTB approval, including fixed cable (cable length 1.1 m).

: 0560 1128

testo 112 highly accurate temperature measuring instrument - with PTB approval

Certificates

: 0520 0001

ISO temperature calibration certificate - with 3 measuring points

3 calibration points: -18 / 0 / +60 °C

: 0520 0040

ISO calibration certificate for temperature - with 3 measuring points

3 calibration points: -18 / 5 / +65 °C

: 0520 0181

ISO temperature calibration certificate - with 3 measuring points

3 calibration points: -8 / 0 / +40 °C

: 0520 0042

ISO temperature calibration certificate - with 2 measuring points

2 calibration points: 0 / +60 °C

: 0520 0062

ISO temperature calibration certificate - with 1 measuring point

1 calibration point: 0 °C

: 0520 0101

ISO calibration certificate for air temperature - with selectable measuring points

Calibration points freely selectable in the range -196 to +1200 °C
