testo 350 MARITIME - Exhaust gas analyzer for diesel ship engines

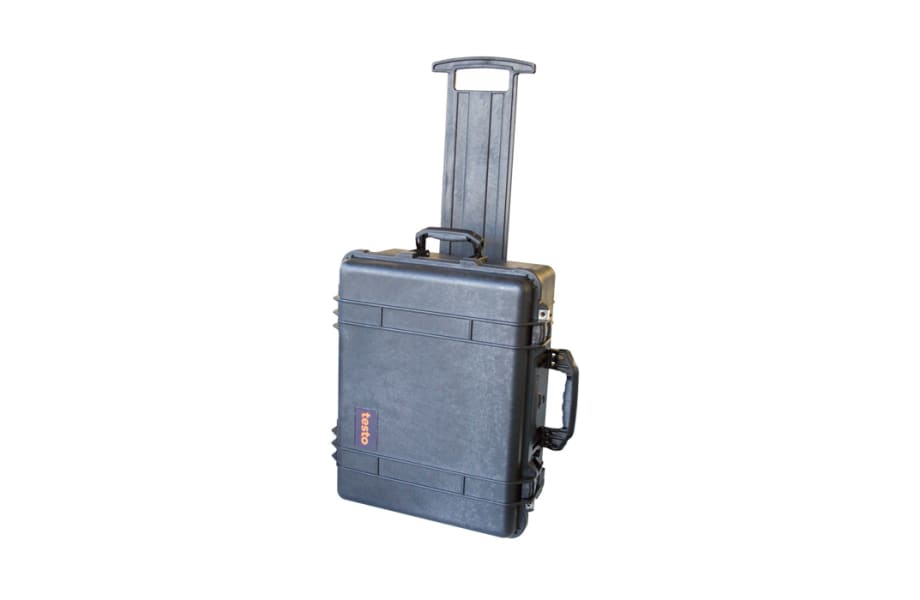

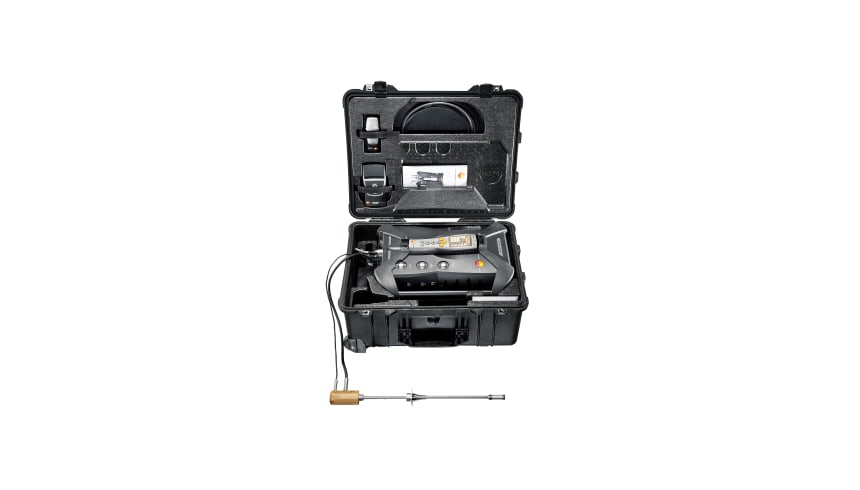

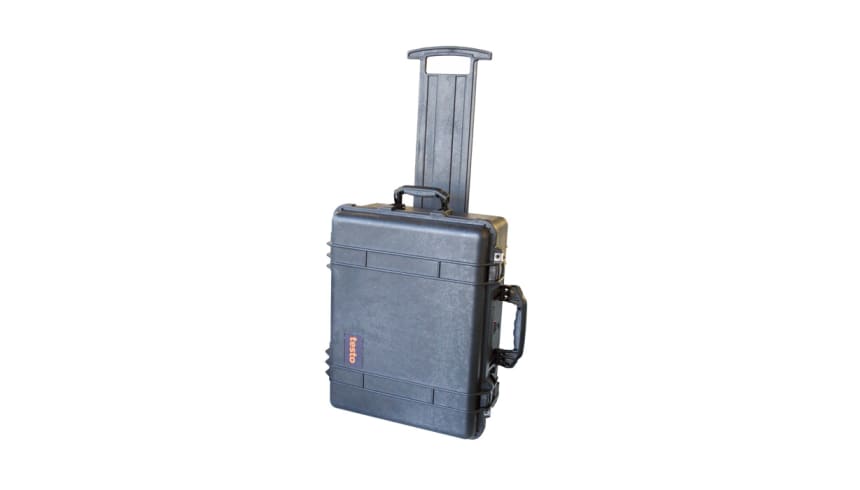

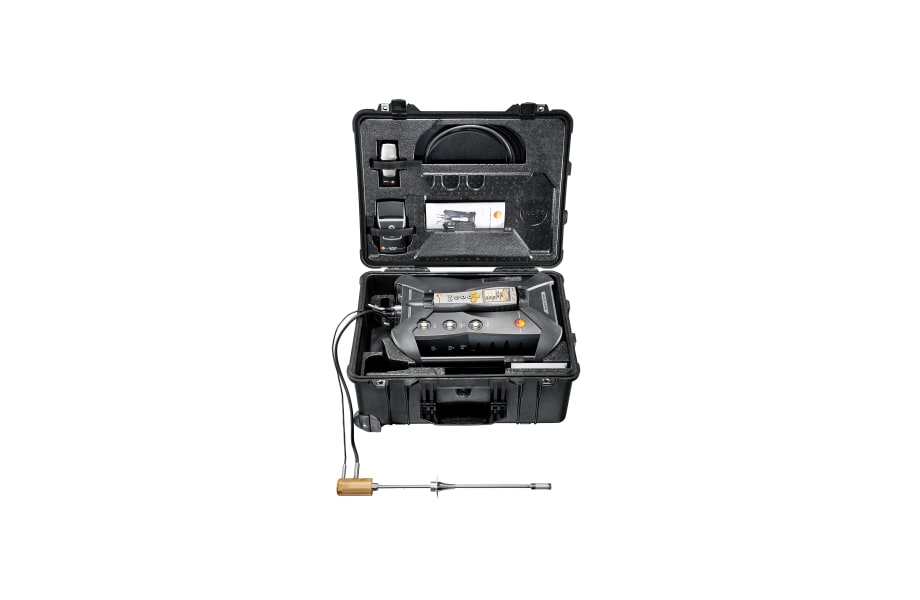

The flue gas analyzer testo 350 MARITIME can be used for emission measurement on marine diesel engines for measuring the gaseous exhaust gas concentrations of NO, NO2, SO2, CO, CO2-(IR), O2. In order to meet the harsh requirements at sea, the complete flue gas analyzer, including accessories, is housed in a robust protective case with a trolley function – the testo 350 MARITIME flue gas analyzer certainly isn't a landlubber.

The testo 350 MARITIME flue gas analyzer goes full speed ahead

As a seaworthy flue gas analyzer, the testo 350 MARITIME can be used for the following on-board verification surveys in accordance with the NOx Technical Code 2008: For the simplified testing and measurement method, for instance if modifications have been made to the engine, such as readjustment
The testo 350 MARITIME flue gas analyzer is also suitable for checking the NOx limit values stipulated in MARPOL Annex VI. The NOx values are for example tested in official NOx checks. The NOx measurement can also be used to provide proof of NOx reduction, which is required in regional special zones with specific NOx tax requirements (such as Norway).

Outstanding: testo 350 MARITIME offers certified quality

The testo 350 MARITIME flue gas analyzer has the following certificates:
DNV Certificate No. TAA00001K0 Rev. 4, Nippon Kaiji Kyokai (Class NK) certificate no. TA23536M, MED Certificate No. MEDB0000328 Rev. 3 (Module B) and MEDD00002FU (Module D)

General technical data	Weight Approx. 17 kg
Dimensions 565 x 455 x 265 mm (case)
Operating temperature 5 to +45 °C
Product-/housing material TPE/PC + ABS/PC + ABS + 10% GF
Connectable probes 1 x combustion air temperature probe; 1 x flue gas probe; 1 x temperature probe; 1 x temperature probe; 1 x differential pressure
Product colour Black
Standards Germanischer Lloyd (DNV GL) Certificate Nippon Kaijik Kyokai (Class NK) certificate according to MARPOL Annex VI and NOx Technical Code 2008
Power supply Li ion rechargeable battery; AC mains unit 100 V to 240 V (50 to 60 Hz)
Power consumption max. 40 W
Pump flow 1 l / min. with flow monitoring
Max. pos. press./flue gas 50 mbar
Max. neg. press./flue gas -300 mbar
Dewpoint calculation 0.04 °Ctd; 99 °Ctd
Interface IR/IRDA interface; Bluetooth®; USB; data bus; trigger input; Differential Pressure; probe input/ probe inputs; DC-voltage input; Mains connection; dilution gas inlet for measurement range extension
Storage temperature -20 to +50 °C

Weight

Approx. 17 kg

Dimensions

565 x 455 x 265 mm (case)

Operating temperature

5 to +45 °C

Product-/housing material

TPE/PC + ABS/PC + ABS + 10% GF

Connectable probes

1 x combustion air temperature probe; 1 x flue gas probe; 1 x temperature probe; 1 x temperature probe; 1 x differential pressure

Product colour

Black

Standards

Germanischer Lloyd (DNV GL) Certificate Nippon Kaijik Kyokai (Class NK) certificate according to MARPOL Annex VI and NOx Technical Code 2008

Power supply

Li ion rechargeable battery; AC mains unit 100 V to 240 V (50 to 60 Hz)

Power consumption

max. 40 W

Pump flow

1 l / min. with flow monitoring

Max. pos. press./flue gas

50 mbar

Max. neg. press./flue gas

-300 mbar

Dewpoint calculation

0.04 °Ctd; 99 °Ctd

Interface

IR/IRDA interface; Bluetooth®; USB; data bus; trigger input; Differential Pressure; probe input/ probe inputs; DC-voltage input; Mains connection; dilution gas inlet for measurement range extension

Storage temperature

-20 to +50 °C
