IAQ data logger for long-term measurements

Order-Nr. 0577 0400

This meter uses a sensor to start up. Click here for probe selection.

£ 850.00

incl. VAT £ 1,020.00

Delivery costs

Delivery time: 3 – 5 working days

+44 1420 358121

Inquiry

Data logger configurable via testo 400 universal IAQ instrument
Compatible with probes for measuring the comfort level, turbulence, radiant heat, CO₂, CO, illuminance, air flow velocity, humidity and temperature
Stand-alone data logger for long-term measurements up to 2 weeks
Connect up to six fixed cable probes at the same time

For long-term monitoring of the indoor air quality: Use the IAQ data logger as a stand-alone measuring unit for carrying out long-term measurements with the testo 400 IAQ measuring instrument. While the stand-alone data logger is carrying out the IAQ measurement, you can use the IAQ measuring instrument for measurements elsewhere.

Details

Product Description

The IAQ data logger is ideal for carrying out long-term measurements of indoor air quality. Programming of measuring interval and measurement period of the stand-alone data logger is carried out via the testo 400 universal IAQ instrument (please order separately). Once the IAQ measurement is completed, you can read out, analyze and document all the saved values with the testo 400.

Particularly useful: Since the data logger acts independently of the measuring instrument during the measurement, you can use the IAQ measuring instrument to carry out measurements elsewhere in the meantime.

Use the compatible probes (please order separately) to measure the comfort level, turbulence, radiant heat, CO₂, CO, illuminance, air flow velocity, humidity and temperature. The IAQ data logger offers connection options for up to six fixed cable probes at the same time.

To install data loggers and probes, you can order an accessory in the form of a practical tripod.

Main applications of the IAQ data logger

In combination with the corresponding probes, the IAQ data logger is ideal for carrying out the following measurements:

PMV/PPD measurement in accordance with EN ISO 7730 / ASHRAE 55
Local discomfort level measurement in accordance with EN ISO 7730 / ASHRAE 55, e.g. draught rate and degree of turbulence at up to three positions at the same time
NET measurement in accordance with DIN 33403

Delivery Scope

1 x IAQ data logger for long-term measurements, including mains unit with USB cable.

Related products

CO probe (digital) - wired

Order-Nr. 0632 1272

£ 309.00

incl. VAT £ 370.80
- Intuitive: clearly structured measurement menu for long-term measurement and determination of CO concentration in indoor areas, e.g. in boiler rooms
- Precise: long-term stable electrochemical sensor
Details
Clamp probe with NTC temperature sensor - for measurements on pipes (Ø 6-35 mm)

Order-Nr. 0615 5505

£ 51.00

incl. VAT £ 61.20
- Measuring range from -40 to +125 °C
- Collet for quick attachment of the surface probe to pipes
Details
Flexible temperature probe (digital) - with Pt100 temperature sensor

Order-Nr. 0618 0071

£ 427.00

incl. VAT £ 512.40
- Flexible probe shaft – for measurements in locations that are difficult to access
- For use in laboratories and in industry
Details
Fume cupboard probe (digital) - wired

Order-Nr. 0635 1052

£ 652.00

incl. VAT £ 782.40
- Intuitive: clearly structured measurement menu for air velocity measurement and volume flow in laboratory fume cupboards according to DIN EN 14175-3/-4
- Precise: automatic absolute pressure compensation guarantees accurate measurement results
Details
Glass-coated laboratory probe (digital) - with Pt100 temperature sensor

Order-Nr. 0618 7072

£ 205.00

incl. VAT £ 246.00
- For measurements in corrosive media
- Ideal for use in laboratories and in industry
Details
Globe thermometer (TC type K) - for radiant heat

Order-Nr. 0602 0743

£ 470.00

incl. VAT £ 564.00
- For the measurement of radiant heat according to ISO 7243, ISO 7726, DIN EN 27726 and DIN 33403
- Thermocouple type K
Details
High-precision humidity/temperature probe (digital) - wired

Order-Nr. 0636 9772

£ 398.00

incl. VAT £ 477.60
- Intuitive: clearly structured measurement menu for long-term measurement and parallel determination of the relative humidity and air temperature in indoor areas
- Precise: carry out humidity measurements with an accuracy of ± (0.6% RH + 0.7 % of m.v.) in the range between 0 and 90% RH; calculation of wet bulb temperature, dew point and absolute humidity
Details
High-precision immersion/penetration probe (digital) - with Pt100 temperature sensor

Order-Nr. 0618 0275

£ 441.00

incl. VAT £ 529.20
- Accuracy of up to ±0.05 °C
- For measurements in liquids and pastes
Details
High-precision vane probe (Ø 100 mm, digital) - including temperature sensor, wired

Order-Nr. 0635 9372

£ 718.00

incl. VAT £ 861.60
- Intuitive: clearly structured measurement menu for volume flow and parallel determination of air velocity, volume flow and air temperature
- Precise: detects the smallest air velocities from as little as 0.1 m/s – ideal for laminar flow measurements in cleanrooms
Details
Hot wire probe (digital) - including temperature and humidity sensor, wired

Order-Nr. 0635 1572

£ 652.00

incl. VAT £ 782.40
- Intuitive: clearly structured measurement menu for volume flow and parallel determination of air velocity, volume flow, air temperature and humidity
- Precise: accurate measurement results from 0 to +50 m/s and automatic absolute pressure compensation
Details
Humidity/temperature probe (digital) - wired

Order-Nr. 0636 9732

£ 144.00

incl. VAT £ 172.80
- Intuitive: clearly structured measurement menu for long-term measurement and parallel determination of the relative humidity and air temperature in indoor areas
- Precise: calculation of wet bulb temperature, dew point and absolute humidity
Details
Immersion/penetration probe (digital) - with Pt100 temperature sensor

Order-Nr. 0618 0073

£ 222.00

incl. VAT £ 266.40
- Accuracy of up to ±0.15 °C
- For measurements in liquids and pastes
Details
Lux probe (digital) - for measuring illuminance, wired

Order-Nr. 0635 0551

£ 326.00

incl. VAT £ 391.20
- Intuitive: clearly structured measurement menu for long-term measurement and determination of illuminance according to the V-lambda curve (suitable for all common light sources)
- Precise: standard-compliant accuracy according to DIN EN 13032-1 and class C according to DIN 5032-7
Details
Pipe wrap probe with NTC temperature sensor - For measurements on pipes (Ø 5-65 mm)

Order-Nr. 0615 5605

£ 166.00

incl. VAT £ 199.20
- Measuring range from -50 to +120 °C
- The surface probe can be attached to pipes very quickly thanks to the quick-release connector
Details
Robust air probe - with NTC temperature sensor

Order-Nr. 0615 1712
- Measuring range from -50 to +125 °C; accuracy of up to ±0.2 °C
- Short response time thanks to the exposed sensor
Details
Robust humidity/temperature probe (digital) - for temperatures up to +180 °C, wired

Order-Nr. 0636 9775

£ 465.00

incl. VAT £ 558.00
- Intuitive: clearly structured measurement menu for long-term measurement and parallel determination of relative humidity and air temperature in industrial exhaust air, bulk goods and climatic test cabinets
- Precise: calculation of wet bulb temperature, dew point and absolute humidity
Details
Robust, fast-action air probe (digital) - with Pt100 temperature sensor

Order-Nr. 0618 0072

£ 222.00

incl. VAT £ 266.40
- Fast response time thanks to the exposed sensor
- For precise measurement of the air temperature
Details
Temperature probe with Velcro and NTC temperature sensor

Order-Nr. 0615 4611

£ 80.00

incl. VAT £ 96.00
- Measuring range from -50 to +70 °C
- With Velcro, for easy attachment of the temperature probe to pipes up to 75 mm in diameter
Details
Turbulence probe (digital) - wired

Order-Nr. 0628 0152
- Intuitive: clearly structured measurement menu for determining the degree of turbulence and draught risk according to EN ISO 7730 / ASHRAE 55
- Precise: compact probe for measuring air velocity and air temperature – high-precision, even at low air velocities
Details
Vane probe (Ø 100 mm, digital) - including temperature sensor, wired

Order-Nr. 0635 9432

£ 365.00

incl. VAT £ 438.00
- Intuitive: clearly structured measurement menu for volume flow and parallel determination of air velocity, volume flow and air temperature
- Precise: get the right results in next to no time, even in turbulent air flow – using the optionally available funnel set and volume flow straightener
Details
Vane probe (Ø 16 mm, digital) - wired

Order-Nr. 0635 9532

£ 277.00

incl. VAT £ 332.40
- Intuitive: parallel determination of air velocity, volume flow and humidity
- Precise: accurate measurement results from +0.6 to +50 m/s
Details
Vane probe (Ø 16 mm, digital) - including temperature sensor, wired

Order-Nr. 0635 9572

£ 663.00

incl. VAT £ 795.60
- Intuitive: clearly structured measurement menu for volume flow and determination of air velocity, volume flow and air temperature
- Precise: accurate measurement results from +0.6 to +50 m/s
Details
Waterproof immersion/penetration probe - with NTC temperature sensor

Order-Nr. 0615 1212

£ 63.00

incl. VAT £ 75.60
- Measuring range from -50 to +150 °C; accuracy of up to ±0.2 °C
- For measurements in liquids and semi-solid media
Details

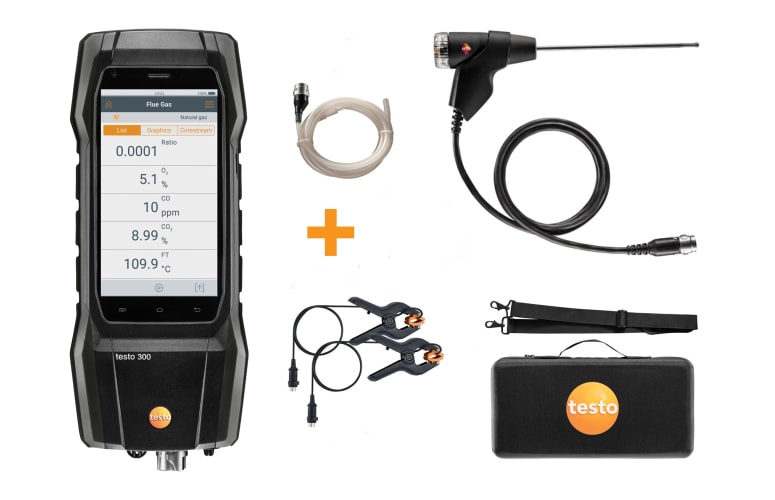

testo 300 - Flue Gas Analyser advanced kit

Order-Nr. 0564 3002 91

£ 949.00

incl. VAT £ 1,138.80
- Large 5” HD display with smart touch operation
- Connect up to 4 smart probes via USB Dongle
Details
testo 440 16 mm Vane Kit

Order-Nr. 0563 4401

£ 499.00

incl. VAT £ 598.80
- A measuring instrument for all climate-related parameters
- Intuitive: clearly structured measurement menu for volume flow and determination of air velocity in ventilation ducts
Details
testo 440 Air Flow ComboKit 2 with Bluetooth®

Order-Nr. 0563 4407

£ 908.00

incl. VAT £ 1,089.60
- A measuring instrument for all climate-related parameters
- Intuitive: clearly structured measurement menu for volume flow and determination of air velocity, humidity and temperature in ventilation ducts or at ventilation outlets
Details
testo 440 Indoor Comfort ComboKit with Bluetooth®

Order-Nr. 0563 4408

£ 1,559.00

incl. VAT £ 1,870.80
- A measuring instrument for all climate-related parameters
- Intuitive: clearly structured measurement menu for long-term measurement and parallel determination of CO₂ concentration, humidity, air temperature and degree of turbulence in workplaces
Details
testo 440 Lux Kit

Order-Nr. 0563 4402

£ 549.00

incl. VAT £ 658.80
- A measuring instrument for all climate-related parameters
- Intuitive: clearly structured measurement menu for long-term measurement and determination of illuminance according to the V-lambda curve , thus for all common light sources
Details
testo 440 laboratory kit

Order-Nr. 0563 4412

£ 480.00

incl. VAT £ 576.00
- A measuring instrument for all climate-related parameters
- Intuitive: Structured measurement menu for long-term measurements
Details
testo 400 - Universal IAQ instrument

Order-Nr. 0560 0400

£ 1,275.00

incl. VAT £ 1,530.00
- A measuring instrument for all climate-related parameters
- Smart, intuitive measurement programs including HVAC grid measurement as per EN ISO 12599 and ASHRAE 111, PMV/PPD and turbulence as per EN ISO 7730 and ASHRAE 55
Details
testo 400 IAQ and comfort kit with tripod

Order-Nr. 0563 0401

£ 3,300.00

incl. VAT £ 3,960.00
- A measuring instrument for all climate-related parameters
- Standard-compliant determination of the comfort level: PMV and PPD as well as draught and turbulence as per EN ISO 7730 and ASHRAE 55
Details
testo 400 air flow kit with 16 mm vane probe

Order-Nr. 0563 0400 72

£ 2,735.00

incl. VAT £ 3,282.00
- A measuring instrument for all climate-related parameters
- Standard-compliant determination of the volume flow in ducts using grid measurements as per EN ISO 12599 and ASHRAE 111
Details
testo 400 air flow kit with hot wire probe

Order-Nr. 0563 0400 71

£ 2,765.00

incl. VAT £ 3,318.00
- A measuring instrument for all climate-related parameters
- Standard-compliant determination of the volume flow in ducts using grid measurements as per EN ISO 12599 and ASHRAE 111
Details

Technical Data

Temperature - NTC
Measuring range	-40 to +150 °C
Accuracy	±0.2 °C ±1 Digit (-25 to +74.9 °C) ±0.4 °C ±1 Digit (-40 to -25.1 °C) ±0.4 °C ±1 Digit (+75 to +99.9 °C) ±0.5 % of mv ±1 Digit (Remaining Range)
Resolution	0.1 °C

Temperature - NTC

Measuring range

-40 to +150 °C

Accuracy

±0.2 °C ±1 Digit (-25 to +74.9 °C)

±0.4 °C ±1 Digit (-40 to -25.1 °C)

±0.4 °C ±1 Digit (+75 to +99.9 °C)

±0.5 % of mv ±1 Digit (Remaining Range)

Resolution

0.1 °C

Temperature - TC Type K (NiCr-Ni)
Measuring range	-200 to +1370 °C
Accuracy	±(0.3 °C + 0.1 % of mv) ±1 Digit
Resolution	0.1 °C

General technical data
Storage temperature	-20 to +60 °C
Weight	162 g
Dimensions	136 x 89 x 39 mm (LxWxH)
Operating temperature	-5 to +45 °C
Product-/housing material	Plastic
Protection class	IP20
Product colour	Black
Connectable probes	4 x digital probe with fixed cable or NTC temperature probe with fixed cable (via Testo Universal Connector - TUC); 2 x temperature probe TC type K with fixed cable
Cable length	1 m
Power supply	External power supply via mains unit
Interface	USB
Memory	360,000 measuring values; 1.5 MB
