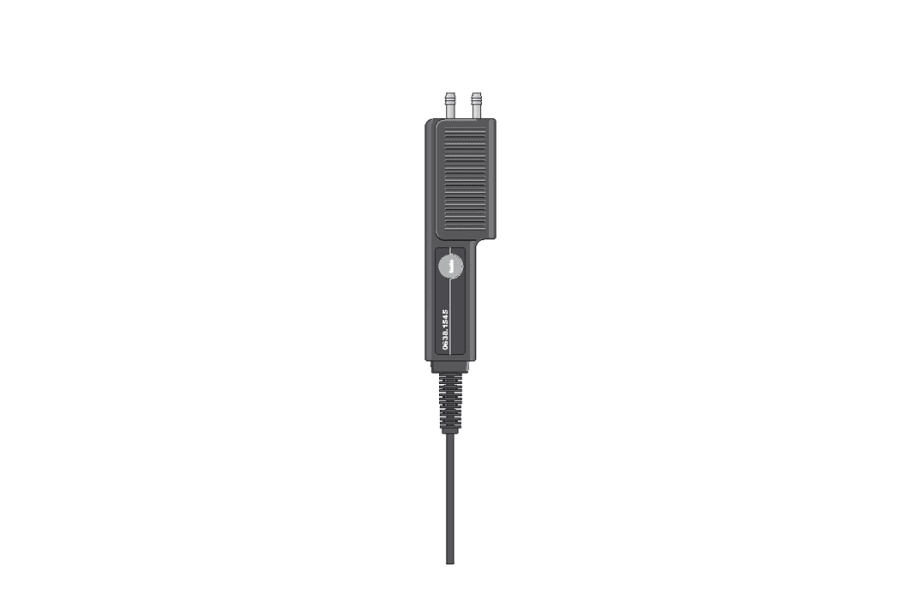

Pressure probe, 100 hPa - for differential pressure and flow

Order-Nr.  0638 1545

  • Differential pressure measurement

  • Flow velocity measurement in combination with a Pitot tube

  • Handy probe

  • Measuring range: 0 to +100 hPa

The pressure probe (with the appropriate measuring instrument) is ideally suited for recording differential pressures and flow velocities (in combination with a Pitot tube).

Product Description

Use the pressure probe to determine differential pressures and flow velocities (in combination with a Pitot tube). Both Prandtl Pitot tubes (Ø 7 mm) and straight Pitot tubes (Ø 8 mm) can be used for flow measurement.

Pressure plays an important role as a measurement parameter, particularly in power and air conditioning technology, as well as in industrial process technology. The difference between the static pressures is measured in the course of acceptance test measurements to check the pressure drop of built-in components (e.g. air filters).



Delivery Scope

Differential pressure probe, 100 hPa, with fixed cable.
Differential Pressure - Piezoresistive

Measuring range

0 to +100 hPa

Accuracy

±0.1 hPa (+1 to +20 hPa)

±0.5 % of mv (+20 to +100 hPa)

Overload

200 hPa

General technical data

Operating temperature

0 to +50 °C

Cable length

1.5 m

Storage temperature

-20 to +70 °C
