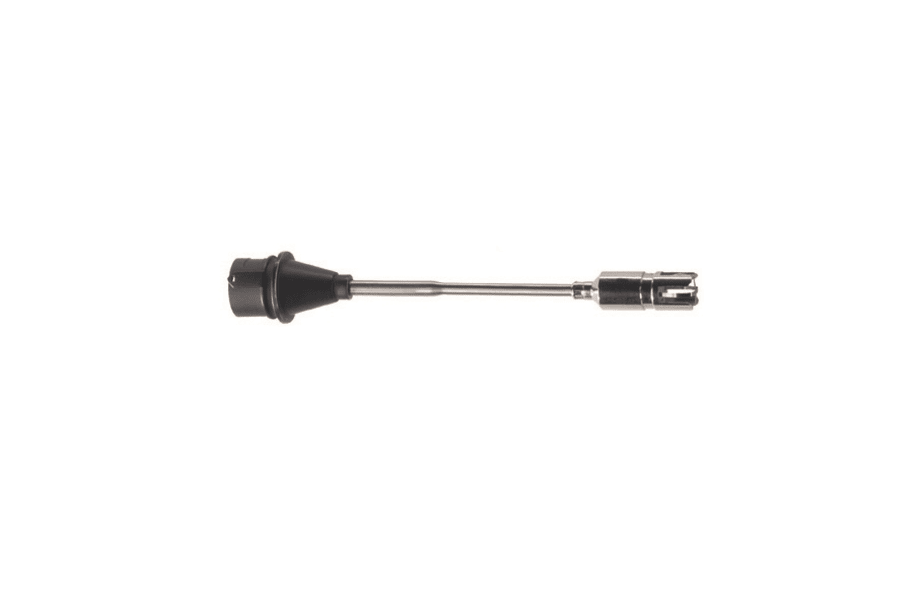

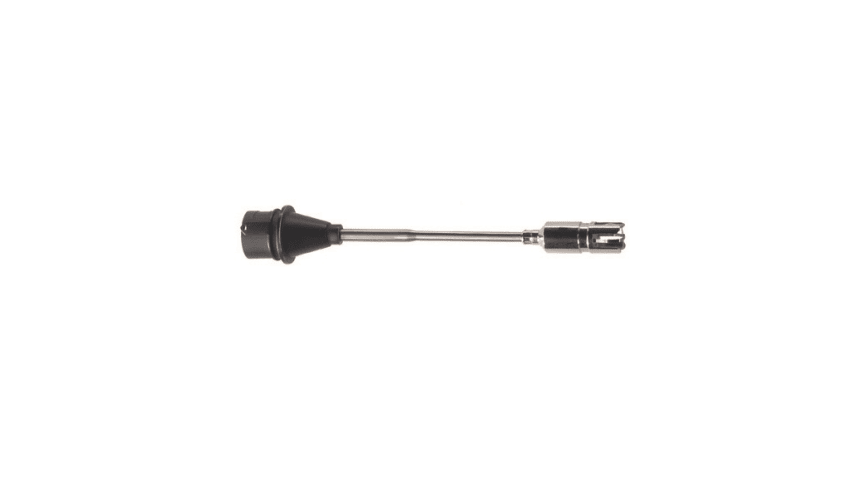

T/C probe head for surface measurement (T/C Type K)

Order-Nr.  0602 0394

T/C probe head for surface measurement (T/C Type K)

Temperature - TC Type K (NiCr-Ni)

Measuring range

-50 to +350 °C

Short-term to: +500 °C

Accuracy

Radio handle:

±(0.5 °C + 0.3 % of mv) (-40 to +500 °C)

±(0.7 °C + 0.5 % of mv) (Remaining Range)

T/C probe head: Class 2

Resolution

0.1 °C (-50 to +199.9 °C)

1.0 °C Remaining Range

Reaction time

5 s

General technical data

Length probe shaft

120 mm

Diameter probe shaft tip

12 mm

Diameter probe shaft

5 mm

Length probe shaft tip

40 mm
