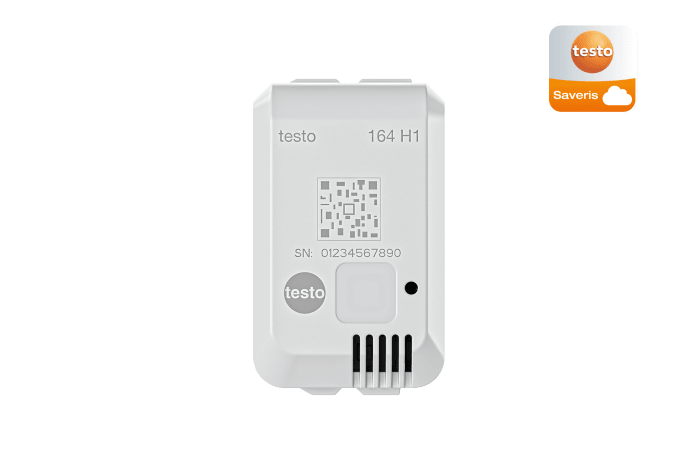

testo 164 H1 - Mini online data logger with integrated temperature and humidity sensor
0572 1644 01
testo 164 H1 - Mini online data logger with integrated temperature and humidity sensor
The testo 164 H1 is a compact and efficient mini online data logger designed for continuous monitoring of temperature and humidity. Equipped with integrated sensors, it ensures precise measurements, transmitting data wirelessly to the testo 164 Gateway. In the event of threshold violations, users receive real-time alerts via push notifications, emails, or SMS, facilitating prompt corrective actions. The device seamlessly integrates with the testo Saveris Cloud, allowing for automatic data documentation and remote access to measurements. Its compact design makes it suitable for various applications, including pharmaceuticals, food safety, and logistics.
- Integrated sensors – Monitors temperature and humidity with built-in precision sensors.
- Wireless data transmission – Sends measurements to the testo 164 Gateway via proprietary wireless connection.
- Real-time alerts – Immediate notifications via push, email, or SMS upon threshold breaches.
- Cloud integration – Automatic data documentation in the testo Saveris Cloud for easy access and analysis.
- Compact design – Small and unobtrusive, ideal for space-constrained environments.
With wireless data transmission, the device effortlessly sends measurements to the testo 164 Gateway, facilitating seamless data collection without the need for manual intervention. The testo Saveris Cloud integration allows users to access and analyse measurements remotely via smartphones, tablets, or PCs.
In scenarios where environmental conditions exceed predefined thresholds, the testo 164 H1 delivers real-time alerts through multiple channels, including push notifications, emails, and SMS, enabling swift response to potential issues. Its compact and unobtrusive design ensures it can be deployed in space-constrained environments without disruption.
The testo 164 H1 integrates seamlessly into the testo 160 data logger system, offering scalability and flexibility to meet diverse monitoring needs.
Humidity - Capacitive
Humidity - Capacitive | Measuring range 0 to 100 %RH (non-condensing) |
|---|---|
Accuracy <= ±5 %RH (90 to < 100 %RH) <= ±1 %rF Hysterese <= ±3 %RH (10 to < 35 %RH) <= ±0.06 %RH/K (0 to 60 °C) <= ±3 %RH (65 to < 90 %RH) <= ±5 %RH (0 to < 10 %RH) <= ±2 %RH (35 to < 65 %RH) <= ±1 %rF/year Drift | |
Resolution 0.1 %RH | |
Temperature
Temperature | Measuring range -10 to +50 °C |
|---|---|
Accuracy ±0.5 °C ±1 Digit | |
Resolution ±0.1 °C | |
General technical data
General technical data | Weight 15 g |
|---|---|
Dimensions 62.6 x 38 x 17.5 mm | |
Operating temperature -10 to +50 °C | |
Protection class IP20 | |
Measuring rate 1 min - 24 h | |
Communication rate 1 min - 24 h | |
Standards EN 12830; HACCP International; NSF | |
Connection | |
Power supply Battery (non-replaceable) | |
Interface Sub 1 GHz; IEEE 802.15.4 | |
Memory 300 measuring values | |
Battery life 8 years | |
Storage temperature -30 to +60 °C | |
- Mini online data logger testo 164 H1

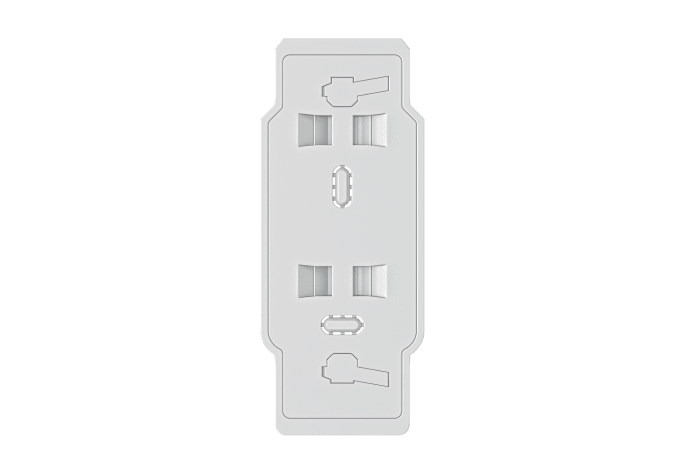

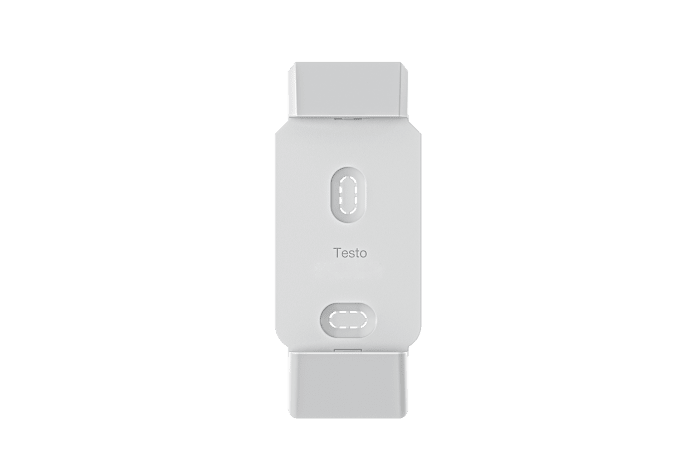

- Wall bracket
- Short instructions
- Test protocol
- White packaging
