testo 350 MARITIME - Exhaust gas analyzer for diesel ship engines

Order-Nr.  0563 3503

  • Measures O2, CO, NOx (NO + NO2 separate), SO2 – high precision and long-term stable

  • Certified gas sensors: equal to reference measurement

  • Ready to measure after only two minutes

  • Determination of the fuel sulphur content by means of SO2/CO2 ratio according to MEPC 184 (59)

Testo proudly presents the world’s first portable exhaust gas analyzer for diesel ship engines: the testo 350 MARITIME! The groundbreaking exhaust gas analyzer measures emissions at diesel ship engines in compliance with MARPOL Annex VI and NOx Technical Code 2008.

Product Description

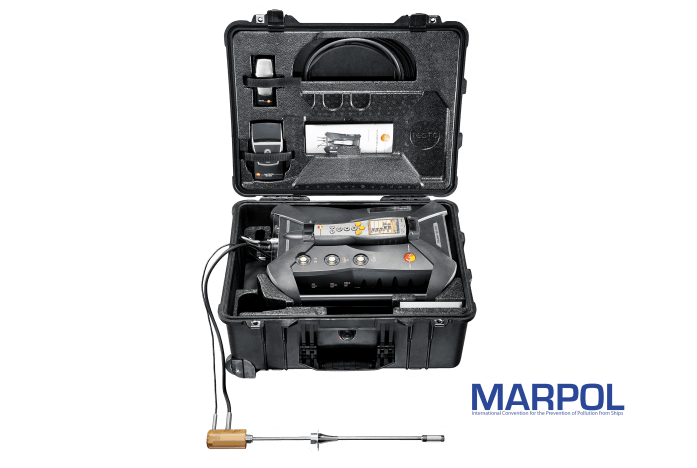

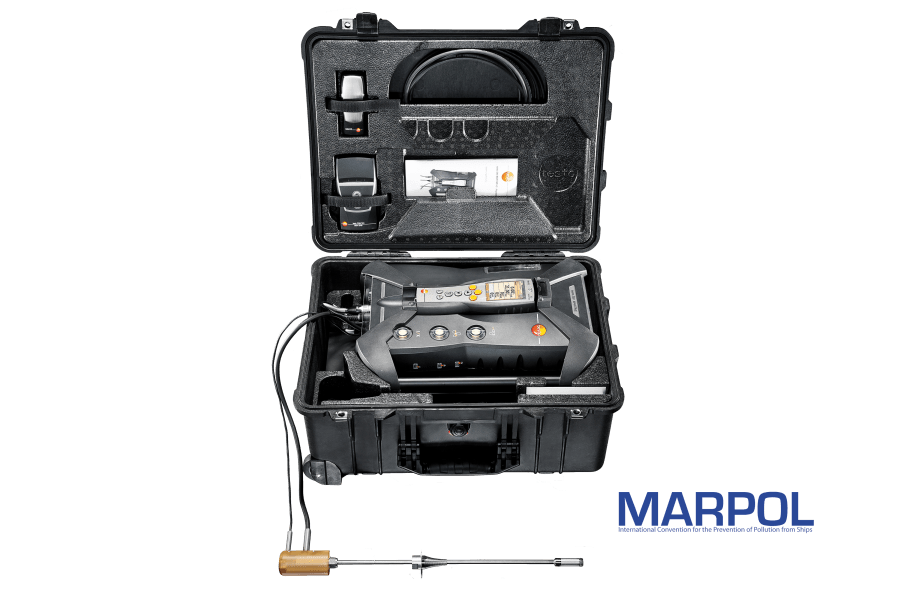

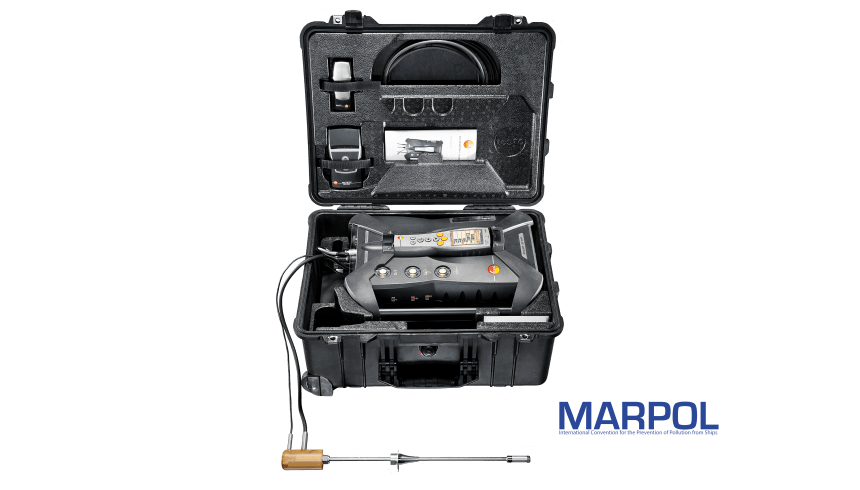

The testo 350 MARITIME flue gas analyzer is certified for emission measurement on marine diesel engines and can be used to measure the gaseous flue gas concentrations of NO, NO2, SO2, CO, CO2-(IR) and O2. In order to meet the harsh requirements at sea, the complete flue gas analyzer, including accessories, is housed in a robust protective case with a trolley function – the testo 350 MARITIME flue gas analyzer certainly isn't a landlubber.



The testo 350 MARITIME flue gas analyzer goes full speed ahead

As a seaworthy flue gas analyzer, the testo 350 MARITIME can be used for the following on-board verification surveys in accordance with the NOx Technical Code 2008:
  • For on-board direct measurement and monitoring (e.g. periodic and intermediate surveys)
  • For the simplified testing and measurement method, for instance if modifications have been made to the engine, such as readjustment

The testo 350 MARITIME flue gas analyzer is also suitable for checking the NOx limit values stipulated in MARPOL Annex VI. The NOx values are for example tested in official NOx checks. The NOx measurement can also be used to provide proof of NOx reduction, which is required in regional special zones with specific NOx tax requirements (such as Norway).



Outstanding: testo 350 MARITIME offers certified quality

The testo 350 MARITIME flue gas analyzer has the following certificates:
Germanischer Lloyd (DNV GL) certificate no. TAA00001K0 (02/2018 - 02/2023), according to MARPOL Annex VI and NOx Technical Code 2008 and Nippon Kaiji Kyokai (Class NK) certificate no. 14DD001B. In addition, the testo 350 MARITIME fulfils the directive on marine equipment and has the MED mark of conformity 0098/2018.



Delivery Scope

  • The testo 350 MARITIME V2 analyzer unit, equipped with NO, NO2, SO2, CO, CO2-(IR) and O2, including gas conditioning, measuring range extension for single slot (only for SO2), fresh air valve for long-term measurement, differential pressure sensor, temperature probe input type K NiCr-Ni and type S Pt10Rh-Pt, Testo data bus connection, rechargeable battery, integrated combustion air probe (NTC), trigger input, measurement data memory and USB interface
  • testo 350 MARITIME V2 Control Unit
  • Robust protective case with trolley function
  • Flue gas probe for industrial engines, 335 mm immersion depth including cone and heat protection plate, Tmax. +1,000°C, special hose for NO2-/SO2 measurements, length 4 m
  • Connection cable between flue gas analyzer and Control Unit, length 5 m
  • testo fast printer with wireless infrared interface, 1 roll of thermal paper and 4 mignon batteries for printing readings out on site
  • testo 610 humidity/temperature measuring instrument
  • Germanischer Lloyd certificate no. TAA00001K0
  • Nippon Kaiji Kyokai (Class NK) certificate no. 14DD001B
Temperature - TC Type K (NiCr-Ni)

Measuring range

-40 to +1000 °C

Accuracy

max. ±5 K

Absolute Pressure

Measuring range

600 to 1150 hPa

Accuracy

±5 hPa at +22 °C

±10 hPa at -5 to 45 °C

Flue gas O₂

Measuring range

0 to 25 Vol.%

Accuracy

According to to MARPOL Annex VI and NOx Technical Code

Flue gas CO (with H₂-compensation)

Measuring range

0 to 3000 ppm

Accuracy

According to to MARPOL Annex VI and NOx Technical Code

Flue gas NO

Measuring range

0 to 3000 ppm

Accuracy

According to to MARPOL Annex VI and NOx Technical Code

Flue gas NO₂

Measuring range

0 to 500 ppm

Accuracy

According to to MARPOL Annex VI and NOx Technical Code

Flue gas SO₂

Measuring range

0 to 3000 ppm

Accuracy

According to to MARPOL Annex VI and NOx Technical Code

Flue gas CO₂ - NDIR

Measuring range

0 to 40 Vol.%

Accuracy

According to to MARPOL Annex VI and NOx Technical Code

General technical data

Dimensions

565 x 455 x 265 mm (case)

Operating temperature

5 to +45 °C

Power supply

Li ion rechargeable battery; AC mains unit 100 V to 240 V (50 to 60 Hz)

Power consumption

max. 40 W

Max. neg. press./flue gas

-300 hPa

Max. pos. press./flue gas

50 hPa

Storage temperature

-20 to +50 °C

Weight

Approx. 17 kg

Accessories

Connection cable

Order Number: 0430 0143

£ 46.90
£ 56.28 incl. VAT
£ 369.00
£ 442.80 incl. VAT
£ 199.00
£ 238.80 incl. VAT

Official emissions measurement of marine engines

Previously, only relatively heavy emission measuring devices were used on board vessels; by launching a portable analyzer, Testo has revolutionised previous methods of measuring emissions on vessels within the context of tests according to international standards (IMO, and MARPOL). Since then, not only classification societies, service provides and universities, but primarily also leading manufacturers of marine engines have equipped themselves with testo 350-MARITIME in order to enable reliable measurements of emission concentrations quickly and flexibly in the service sector. The testo 350 MARITIME can be used as a system component to measure the gaseous exhaust concentrations of O2, CO, CO2, NOx and SO2. The exhaust gas analyzer can also be used as a system component for official NOx monitoring measurements on board. Furthermore, the analyzer can be used, for example, to verify NOx reduction for the NOx tax in Norway.
