testo 550s Basic Kit - Smart digital manifold with fixed cable clamp temperature probes

Order-Nr. 0564 5501 02

£ 315.00

incl. VAT £ 378.00

Where to buy

Delivery costs

Delivery time: 3 – 5 working days

+44 1420 358118

Inquiry

All results at a glance thanks to the large graphic display
Exceptionally compact and reliable thanks to the easy-to-handle, robust housing with IP 54 protection class
Easy, wireless, flexible measurements and documentation: Temperature and vacuum measurements via automatic Bluetooth^®

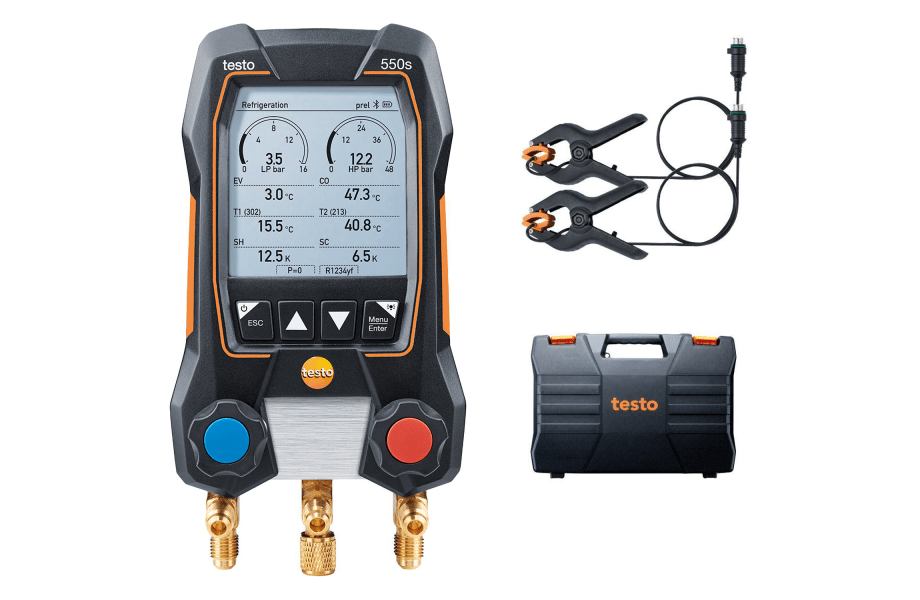

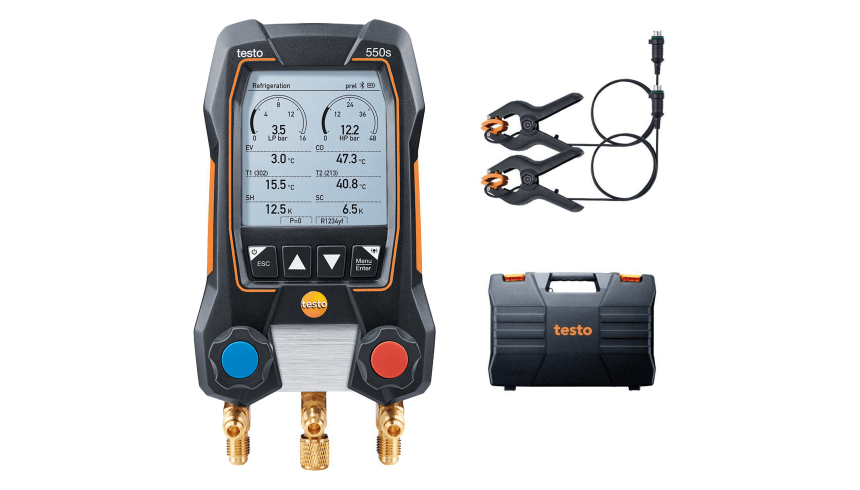

In the kit: testo 550s smart digital manifold with Bluetooth and 2-way valve block, 2 x clamp temperature probes (fixed cable, NTC), case

Details

Product Description

With this kit, you’ll be ready to start your measurements in the commissioning, servicing and maintenance of refrigeration and air conditioning systems and heat pumps straight away: You will get the testo 550s smart digital manifold with Bluetooth and 2-way valve block, two fixed cable clamp temperature probes (NTC) and a robust transport case. Additional Bluetooth probes, e.g. for wireless measurements of temperature and vacuum, are available separately.

Details on kit components

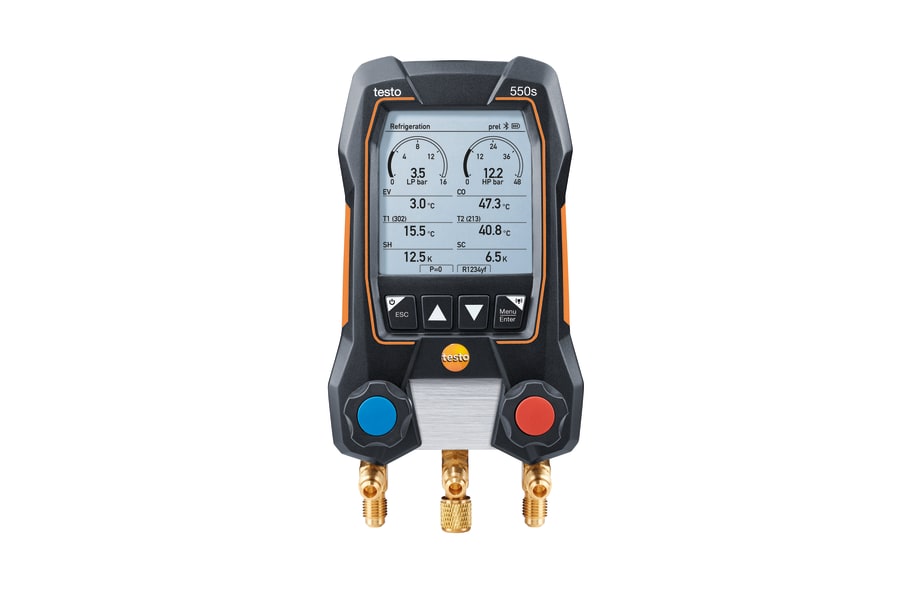

testo 550s - Smart digital manifold with Bluetooth and 2-way valve block

Order-Nr. 0564 5500 02
- All results at a glance thanks to the large graphic display
- Exceptionally compact and reliable thanks to the easy-to-handle, robust housing with IP 54 protection class
Details
Transport case - for digital manifolds

Order-Nr. 0516 2012
- Robust design for daily use
- Stow away all kit components, including hoses, quickly and safely
Details
testo Smart App

Order-Nr. 0501 5001
- All in one: One app for all Bluetooth^®-enabled Testo measuring instruments for air conditioning/refrigeration systems and heat pumps
- Quick and easy: Measurement menus for numerous applications provide optimum support in configuring and carrying out measurements, e.g. superheating/subcooling
Details

Delivery Scope

testo 550s digital 2-way manifold including batteries (4 x AA) and calibration protocol
Clamp temperature probe kit (includes 2 x clamp probes NTC)
Transport case
testo Smart App (free download)
Instruction manuals

FREE engineer tool bag

with testo 550s digital manifolds

Technical Data

testo 550s - Smart digital manifold with Bluetooth and 2-way valve block

Order-Nr. 0564 5500 02

General technical data
Weight	826 g
Dimensions	210 x 121 x 60 mm (LxWxH)
Operating temperature	-20 to +50 °C
Protection class	IP54
System requirements	requires iOS 12.0 or newer; requires Android 6.0 or newer; requires mobile end device with Bluetooth 4.0
Product colour	Black
Auto-off	10 min*
Battery type	4 x type AA batteries
Battery life	250 h with no illumination, no Bluetooth^®; 100 h with illumination and Bluetooth^®
Data transfer	Bluetooth®
Radio range	150 m
Refrigerants in instrument	R407H; R23; R290; R1234yf; R442A; R134a; R123; R452B; R438A; R421A; R453a; R401B; R1233zd; R410A; R407A; R407C; R452A; R401A; R422C; R427A; R422B; R424A; R125; R414B; R404A; R408A; R448A; R422D; R12; R114; R421B; R449A; R409A; R420A; R444B; R32; R454A; R124; R402A; R450A; R407F; R416A; R13; R437A; R1234ze; R454B; R402B; R22; R434A; R454C; R455A; R458A; R500; R502; R503; R507; R513A; R600a; R718 (H₂O); R744 (CO₂)
Refrigerants update via App	R11; FX80; I12A; R1150; R1270; R13B1; R14; R142B; R152A; R161; R170; R227; R236fa; R245fa; R401C; R406A; R407B; R407D; R41; R411A; R412A; R413A; R417A; R417B; R417C; R422A; R426A; R508A; R508B; R600; RIS89; SP22
Storage temperature	-20 to +60 °C

* when not connected via Bluetooth

Temperature
Measuring range	-50 to +150 °C
Accuracy	±0.5 °C
Resolution	0.1 °C
Probe connection	2 x plug-in (NTC)

Pressure measurement
Measuring range	-1 to 60 bar
Accuracy	±0.5 % fs
Resolution	0.01 bar
Probe connection	3 x 7/16" – UNF
Overload rel. (high pressure)	65 bar

testo Smart App

Order-Nr. 0501 5001

General technical data
System requirements	requires iOS 13.0 or newer; requires Android 8.0 or newer; requires mobile end device with Bluetooth 4.0

Probes

Humidity probes

testo 605i - thermohygrometer operated via smartphone

Order Number: 0560 2605 02

£ 92.00

incl. VAT £ 110.40

Pressure probes

testo 552i - App-controlled wireless vacuum probe

Order Number: 0564 2552

£ 135.00

incl. VAT £ 162.00

Temperature probes

testo 115i - Clamp thermometer operated via smartphone

Order Number: 0560 2115 02

£ 64.00

incl. VAT £ 76.80

Robust air temperature probe (NTC) – measuring range: -50 to +125 °C

Order Number: 0613 1712

£ 71.00

incl. VAT £ 85.20

Clamp probe (NTC) for temperature measurements on pipes (Ø 6-35 mm) with 5 m cable length – measuring range: -40 to +125 °C

Order Number: 0613 5506

£ 45.00

incl. VAT £ 54.00

Temperature probe with Velcro (NTC) - Measuring range: -50 to +70°C

Order Number: 0613 4611

£ 77.00

incl. VAT £ 92.40

Pipe wrap probe (NTC) - Measuring range: -50 to +120°C

Order Number: 0613 5605

£ 176.00

incl. VAT £ 211.20

Waterproof NTC surface probe for flat surfaces

Waterproof surface temperature probe (NTC) for flat surfaces - measuring range: -50 to +150 °C

Order Number: 0613 1912

£ 78.00

incl. VAT £ 93.60

Sets

testo 550s Basic Kit – Smart digital manifold with fixed cable clamp temperature probes

Order Number: 0564 5501 02

£ 315.00

incl. VAT £ 378.00

testo 550s Smart Kit – Smart digital manifold with wireless clamp temperature probes

Order Number: 0564 5502 02

£ 390.00

incl. VAT £ 468.00

testo 550s Smart Kit – Smart digital manifold with wireless clamp temperature probes and hose filling set

Order Number: 0564 5503 02

£ 420.00

incl. VAT £ 504.00

Accessories

testo Smart App with the full range of functions - available as a free download

Order Number: 0501 5001

Free download: testo DataControl PC software

Order Number: 0501 4000

Magnetic strap – for digital manifolds

Order Number: 0564 1001

£ 41.00

incl. VAT £ 49.20

Transport case

Order Number: 0516 0012

£ 92.00

incl. VAT £ 110.40

Applications

Refrigeration systems, air conditioning systems, heat pumps

Determination of high and low pressure, automatic determination of condensation and evaporation temperature and calculation of superheating/subcooling. All results can be read simultaneously on one screen
Tightness test: Recording and analysis of the pressure curve
Automatic calculation of the target superheat (in conjunction with the appropriate measuring instrument, e.g. Testo Smart Probe)
Measure vacuum: Graphic progression display of the measurement with indication of the start and differential value
Evacuation: Graphic progression display of the measurement with indication of the start and differential value (in conjunction with the appropriate Testo Smart Probe, e.g. testo 552i vacuum probe)
