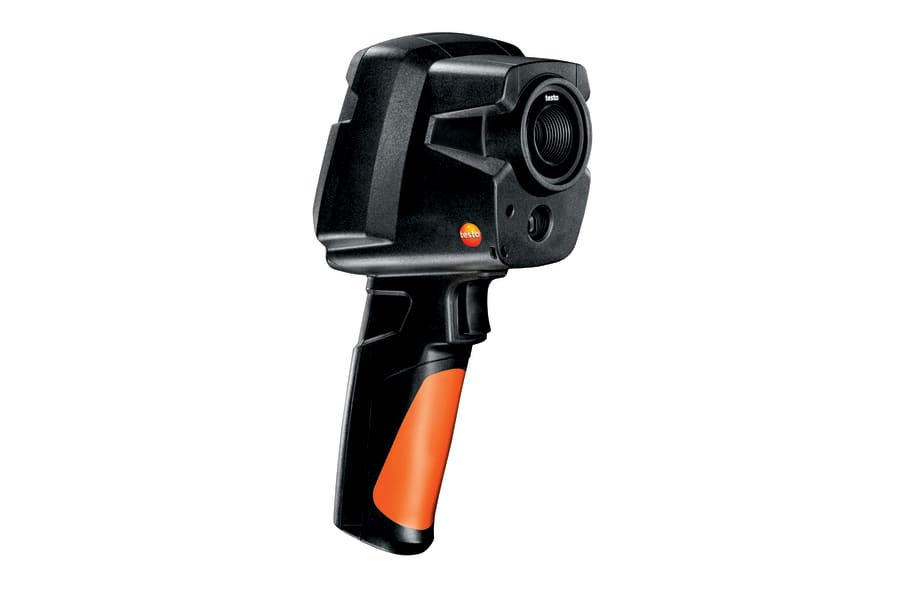

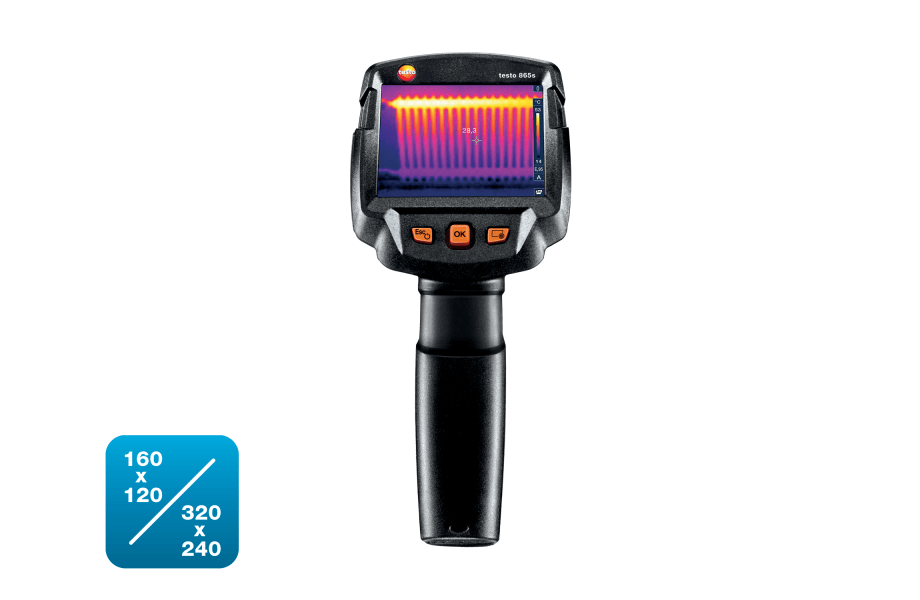

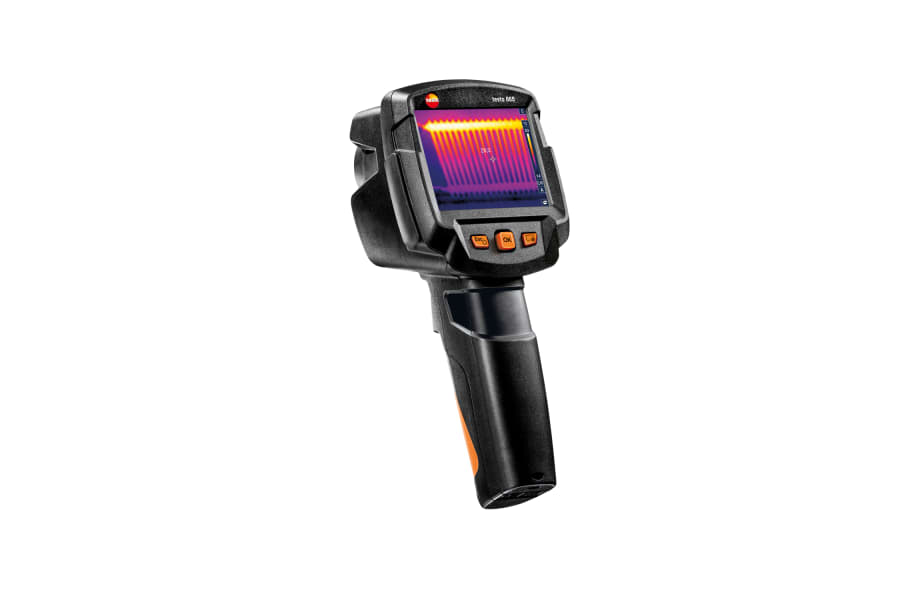

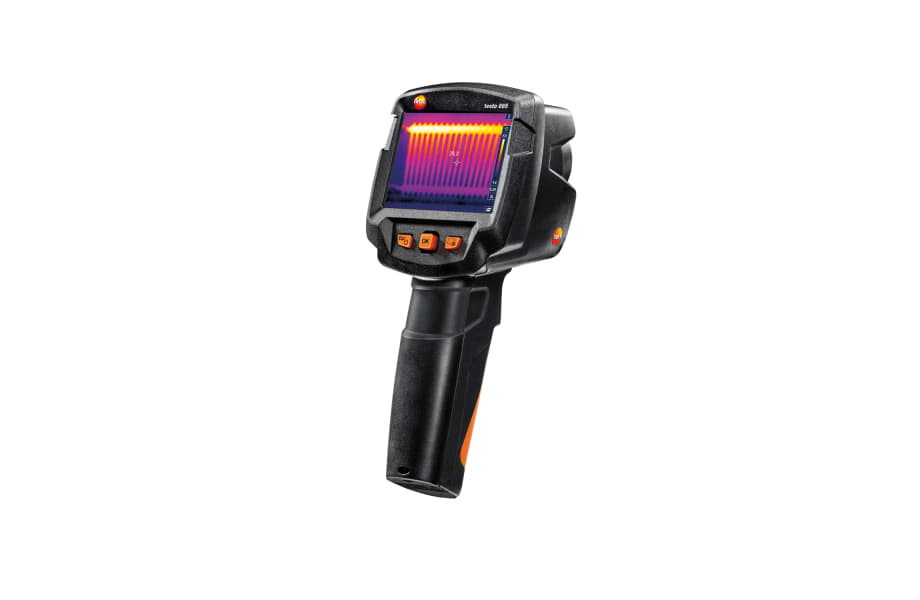

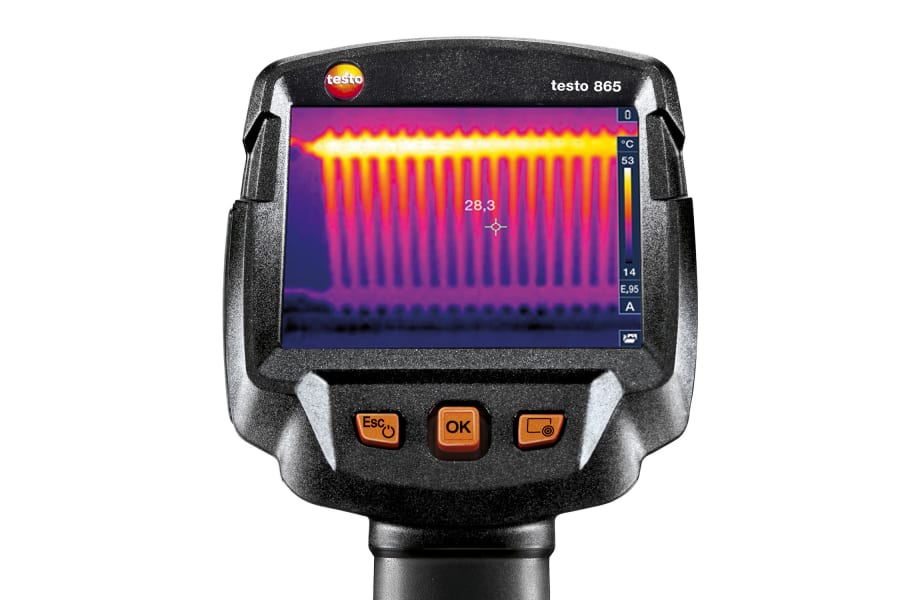

testo 865 - thermal imager

Order-Nr.  0560 8650

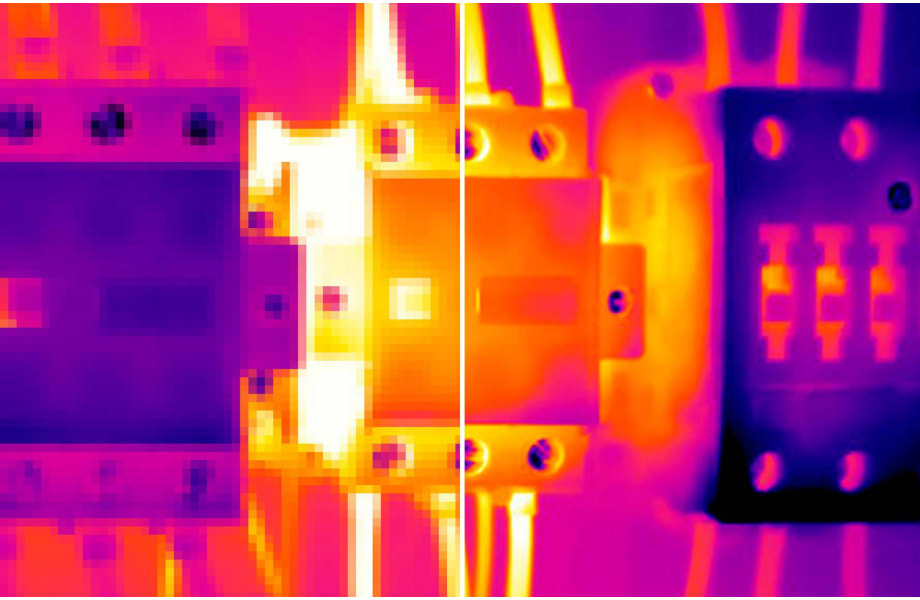

  • Very good image quality: IR resolution of 160 x 120 pixels, via integrated testo SuperResolution Technology 320 x 240 pixels

  • Very good measuring accuracy of ±2°C

  • Visualizing temperature differences from 0.12°C

  • Automatic detection of hot and cold spots

The testo 865 thermal imager combines all the important properties required for high-quality thermographic measurement – it is accurate, robust, fast and reliable. The testo 865 provides high-quality thermography at an affordable price and keeps going even in tough working conditions. The case supplied with the thermal imager means it can be conveniently transported, so it is always there for you when needed.

Delivery time: 3 – 5 working days

Shipping costs

£ 699.00
£ 838.80 incl. VAT

Product Description

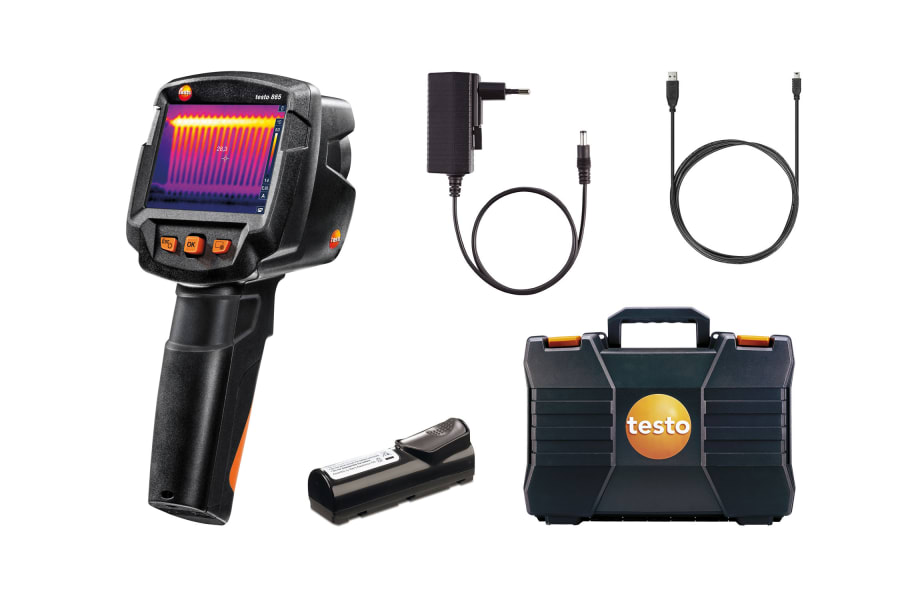

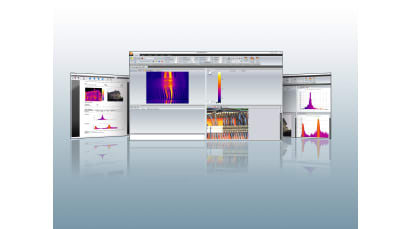

testo 865 thermal imager, including USB cable, mains unit, lithium-ion rechargeable battery, IRSoft professional software (free download), commissioning instructions, short instructions, calibration protocol and case.



Delivery Scope

testo 865 thermal imager, including USB cable, mains unit, lithium-ion rechargeable battery, IRSoft professional software (free download), commissioning instructions, short instructions, calibration protocol and case.
Infrared image output

Focus

Fixed focus

Infrared resolution

160 x 120 pixels

Image refresh rate

9 Hz

SuperResolution (IFOV)

2.1 mrad

SuperResolution (Pixel)

320 x 240 pixels

Geometric resolution (IFOV)

3.4 mrad

Minimum focus distance

<0.5 m

Field of view

31° x 23°

Thermal sensitivity

120 mK

Spectral range

7.5 to 14 µm

Image presentation

Display option

IR image only

Colours

4 (iron, rainbow, cold-hot, grey)

Display type

8.9 cm (3.5") TFT, QVGA (320 x 240 pixels)

Measurement

Reflected temperature

manual

Measuring range

-20 to +280 °C

Accuracy

±2 °C, ±2 % of mv

Emissivity

0.01 to 1

Measuring function

Analysis function

Mean point measurement, hot/cold-spot recognition, Delta T

testo ScaleAssist

Included

IFOV warner

Included

Imager equipment

Full screen mode

Included

JPEG storage

Included

Video streaming

via USB

Standard lens

31° x 23°

Interface

USB 2.0 Micro B

Imager storage

File format image

.bmt; .jpg; export option in .bmp; .jpg; .png; .xls; .csv

Storage device

Internal Memory (2.8 GB)

Power supply

Battery type

Fast-charging, Li-ion battery can be changed on-site

Operating time

4 h

Mains operation

yes

Ambient Condition

Housing protection class

IP54

Vibration

2G

Air humidity

20 to 80 %RH non-condensing

Storage temperature

-30 to +60 °C

Operating temperature

-15 to +50 °C

Physical specification

Product-/housing material

PC - ABS

Weight

510 g

Dimensions

219 x 96 x 95 mm

PC software

System requirements

Windows® 10; Windows® 8; Windows® 7

Standards, tests, warrenty

EU-/EG-guidelines

EMC: 2014/30/EU

General technical data

Product colour

Black

Display ligthing

bright / normal / dark

Accessories

£ 59.00
£ 70.80 incl. VAT

Detecting structural defects and ensuring construction quality (especially: air tightness of windows and doors)

Analysis with a Testo thermal imager is a fast and efficient method of detecting possible structural defects. Furthermore, Testo thermal imagers are ideally suited for providing proof of the quality and correct implementation of construction measures. Any heat losses, humidity and lack of air tightness in a building are visible in the thermal image. The Testo thermal imager makes it possible to detect faulty thermal insulation and structural damage – all using a non-contact method! The testo ScaleAssist function, which automatically ensures optimum setting of the thermal image scale, means you get objectively comparable thermal images of buildings. This makes correct assessment of structural defects and thermal bridges easier than ever before. Checking the air tightness of windows and doors is one of the typical applications of the thermal imager.

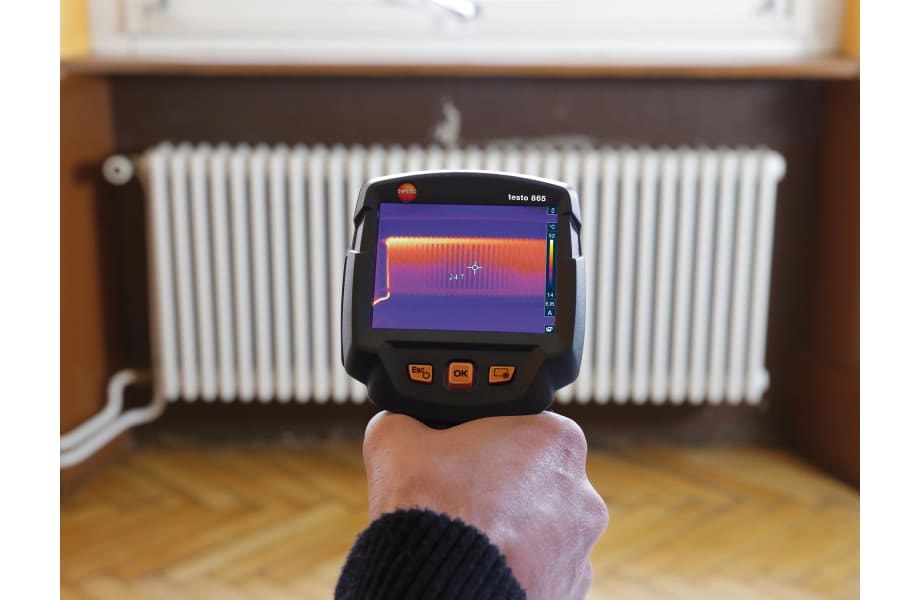

Easy checking of heating and installation systems

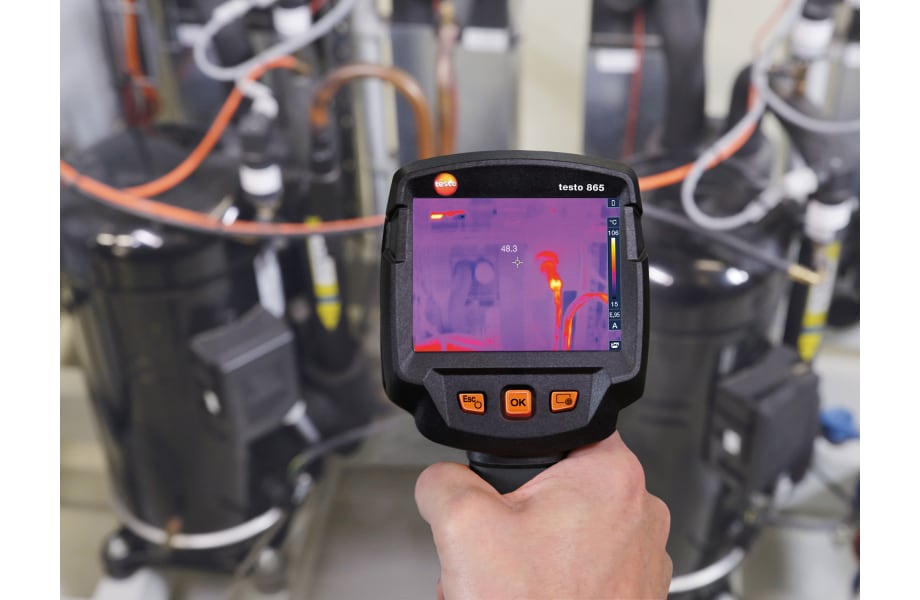

Testo thermal imagers are easy and intuitive to operate, so they are ideal for quickly and reliably checking heating, ventilation and air conditioning systems. Just a quick look with the thermal imager is enough to discover irregularities in temperature distribution. Thus, thermography can be used to easily locate clogged radiators and leaks. Typical applications for the thermal imager:
  • Checking radiators for silting
  • Locating leaks
  • Measuring the flow and return temperature
  • Pinpointing the course of heating loops in an underfloor heating system

On the trail of a ruptured pipe

If a pipe rupture is suspected, the only solution left is often to break open entire wall or flooring areas. The thermal imager enables you to minimize damage and reduce costs, because you locate precise leaks in underfloor heating and other inaccessible pipelines. This avoids opening up walls and floors unnecessarily and considerably reduces the repair costs.
