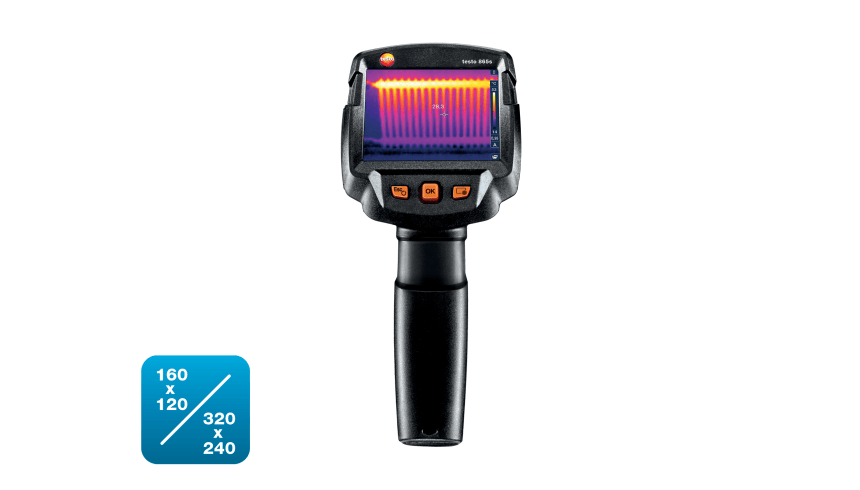

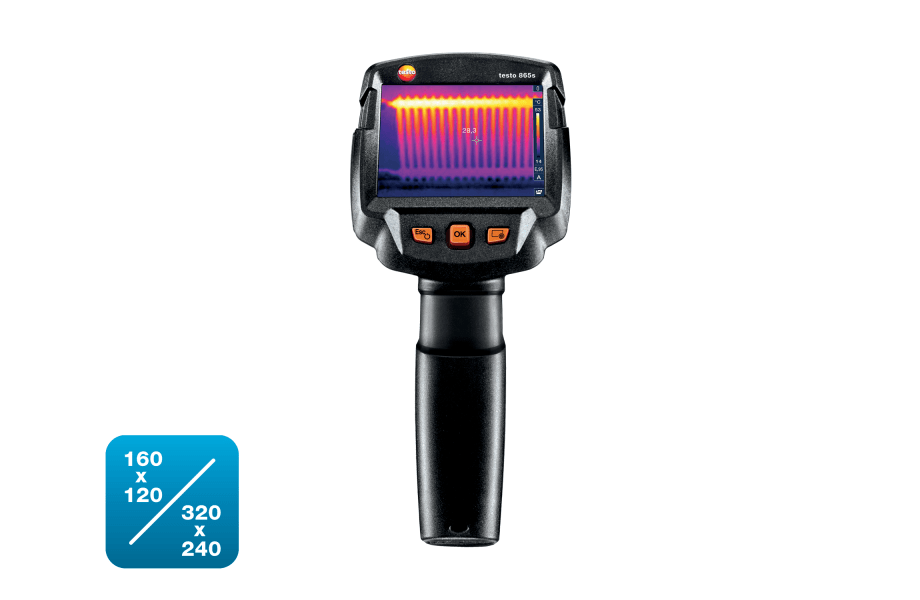

testo 865s - Thermal imaging camera (160 x 120 pixels)

Order-Nr. 0560 8651

£ 749.00

incl. VAT £ 898.80

Where to buy

Delivery costs

Delivery time: 3 – 5 working days

+44 1420 358080

Inquiry

Image quality with IR resolution of 160 x 120 pixels (with testo SuperResolution technology 320 × 240 pixels)
Thermal sensitivity of 0.1 °C
Automatic detection of hot and cold spots
Free analytical software for creating professional reports
Fast measurement with fixed focus
Measuring accuracy of ±2 °C

The thermal imager testo 865s is the ideal entry into the world of thermography. It impresses with the best image quality in its class and intuitive operation in a modern tile look. The testo 865s fits comfortably in the hand and is robust enough to withstand the rigours of everyday use. Helpful functions such as IFOV-Warner and ScaleAssist ensure even better thermal images. All that combined with an unbeatable price-performance ratio. Switch on point, know more.

Image quality with IR resolution of 160 x 120 pixels (with testo SuperResolution technology 320 × 240 pixels)

Details

Product Description

The testo 865s thermal imager offers professional technology and concentrates on functions which are needed in a contractor's daily work. The testo 865s is a user-friendly thermal imager, optimized for fast and efficient work. With the testo ScaleAssist functions ensuring optimum setting of the thermal image scale for building thermography and the IFOV warner making sure you avoid measurement errors, you will always generate the perfect infrared image.

Areas of application of the testo 865s thermal imager

Detect leaks, identify overheated connections, pinpoint thermal bridges or detect structural defects. The testo 865s thermal imager is ideal for applications in daily maintenance and installation work in trade and industry. It enables time-saving quality assurance and ensures reliable production control.

Technical highlights of the testo 865s thermal imager

The testo 865s thermal imager stands out thanks to its easy operation and has the following impressive technical features:

Very good image quality due to high resolution: 19,200 temperature measuring points ensure precise thermography. Infrared resolution of 160 x 120 pixels – via integrated SuperResolution Technology 320 x 240 pixels
Visualize temperature differences from 0.1°C
Critical temperature conditions are directly displayed via automatic hot-cold spot recognition
The IFOV warner means the distance from the measurement object / measurement spot size is determined and the measurement spot is shown on the thermal image – you therefore avoid measurement errors because the camera shows you exactly what you can measure
The testo ScaleAssist automatically ensures optimum setting of the thermal image scale, which means you generate objectively comparable and error-free thermal images, for example of the thermal insulation behaviour of buildings
Pro software for image evaluation on the PC
You can choose to save thermal images as JPEGs

Delivery Scope

testo 865s thermal imager, including USB cable, mains unit, lithium-ion rechargeable battery, IRSoft professional software (free download), commissioning instructions, short instructions, calibration protocol and case.

Practical guide for heating technicians

Technical Data

Standards
EU-/EG-guidelines	EMC: 2014/30/EU

Infrared image output
Field of view	31° x 23°
Focus	Fixed focus
Minimum focus distance	<0.5 m
Geometric resolution (IFOV)	3.4 mrad
Image refresh rate	9 Hz
Infrared resolution	160 x 120 pixels
SuperResolution (IFOV)	2.1 mrad
SuperResolution (Pixel)	320 x 240 pixels
Thermal sensitivity	<0.1 °C (100 mK)
Spectral range	7.5 to 14 µm

Image presentation
Colours	4 (iron, rainbow, cold-hot, grey)
Display option	IR image only
Display type	8.9 cm (3.5") TFT, QVGA (320 x 240 pixels)

Measurement
Accuracy	±2 °C, ±2 % of mv
Emissivity	0.01 to 1
Measuring range	-20 to +280 °C
Reflected temperature	manual

Measuring function
Analysis function	Mean point measurement, hot/cold-spot recognition, Delta T
IFOV warner	Included
testo ScaleAssist	Included

Imager equipment
Video streaming	via USB
Standard lens	31° x 23°
JPEG storage	Included
Full screen mode	Included
Interface	USB 2.0 Micro B

Imager storage
File format image	.bmt; .jpg; export option in .bmp; .jpg; .png; .xls; .csv
Storage device	Internal Memory (2.8 GB)

Power supply
Battery type	Fast-charging, Li-ion battery can be changed on-site
Mains operation	yes
Operating time	4.0 h

Ambient Condition
Air humidity	20 to 80 %RH non-condensing
Housing protection class	IP54
Vibration	2G
Storage temperature	-30 to +60 °C
Operating temperature	-15 to +50 °C

Physical specification
Product-/housing material	PC - ABS
Weight	510 g
Dimensions	219 x 96 x 95 mm

PC software
System requirements	Windows® 10; Windows® 8.1

General technical data
Product colour	Black
Display ligthing	bright / normal / dark

Accessories

Spare battery, lithium-ion rechargeable battery for extending the operating time

Order Number: 0554 8721

£ 31.00

incl. VAT £ 37.20

Battery-charging station, desktop charging station for optimizing the charge time

Order Number: 0554 1103

Adhesive tape, e.g. for reflective surfaces

Emission tape for measurements on reflective surfaces (roll, length: 10 m, width: 25 mm)

Order Number: 0554 0051

£ 72.00

incl. VAT £ 86.40

Free download: PC software testo IRSoft

Order Number: 0501 8809

Applications

Overview of applications

Preventive maintenance

Detecting structural defects and ensuring construction quality

Easy checking of heating systems and installations

Localize pipe ruptures

Locating leaks in flat roofs

Preventive maintenance

Ideal for the early identification of imminent malfunctions or defects on plants and machines: Reliably record temperature increases with a thermal imager.

Fast detection of critical thermal status (so-called HotSpots) during continuing operation
Avoid expensive damage, downtimes and fire risks on plants and machines

Electrical maintenance

Test switching cabinets, electrical conditions, photovoltaic plants
Evaluate heat status in low, medium and high voltage plants

Mechanical maintenance

Identify wear on machines
Test motors, bearings, shafts

Detecting structural defects and ensuring construction quality

Detect potential building defects, prove quality and the implementation of construction measures without contact – with the help of thermal images
Test air-tightness of windows and doors
Locate insulation errors and cold bridges in a building shell
Detect and visualize mould-risk areas

Easy checking of heating systems and installations

test heating and air conditioning/ventilation systems: Use a thermal imager to identify irregularities in the temperature distribution quickly and easily
Localization of the course of heating loops in underfloor heating systems
Testo radiators for silting
Measure flow and return temperatures

Localize pipe ruptures

Reliably determine pipe ruptures with the help of a thermal imager – without unnecessarily opening walls and floors
Precise localization of leakages in underfloor heating and other inaccessible pipe systems

Locating leaks in flat roofs

Detection of damp in roofs: Based on temperature differences (such as occur mainly in flat roofs), thermal imagers show areas on the roof with sealed-in moisture or damaged insulation
