Flow Funnel Kit - funnel set for volume flow measurement

0563 4170
1
  • Determining the volume flow by funnel measurement
  • Consists of a funnel for ventilation grilles and a funnel for plate outlets.
  • Suitable for outlets up to 300 x 300 mm
  • Measurement of flow velocity
  • Availability of different attachable measurement funnels
  • Flow direction detection
    • The flow funnel kit is an optional kit for the testo 417. The flow funnel is ideal for measurements below 50 CFM. The funnel kit Includes an 8 inch round and 13 inch square funnel, ensuring proper measurements for a variety of ducts.
    • not available

      Determining the volume flow by funnel measurement

    Measuring air flow velocities and correctly calculating the volume flow at ventilation outlets can present a challenge. Use the testovent 417 funnel set (in conjunction with the appropriate measuring equipment) to measure the volume flow at ventilation grilles and plate outlets conveniently and accurately.

    Using the funnels will save you time, since there is no need to use the time-consuming loop method for calculating the mean.

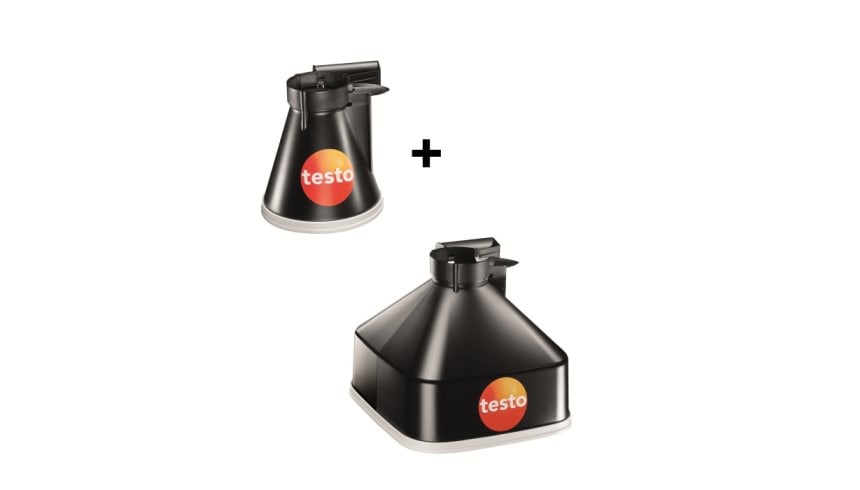

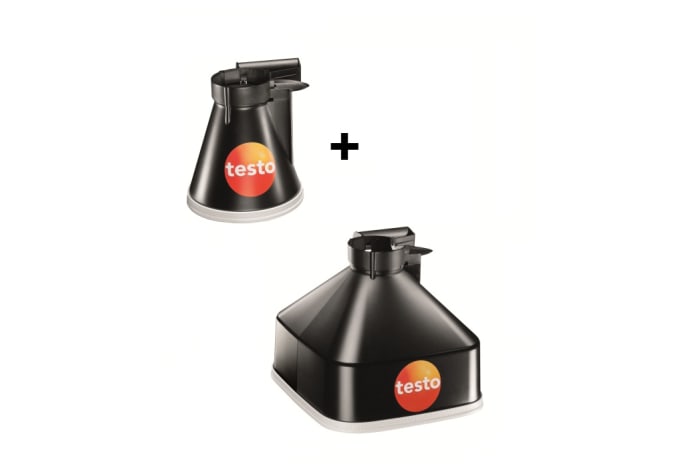

    The testovent 417 funnel set consists of a funnel for ventilation grilles and a funnel for plate outlets. You can conveniently transport both funnels in the practical case.

    Use the testovent 417 funnel set in combination with the testo 417 vane anemometer or the vane probes (Ø 100 mm) for the testo 435 and testo 480 (please order separately).

    • Round funnel for plate outlets (Ø 200 mm)
    • Square funnel for ventilation grilles (330 x 330 mm)
    • Practical case - Instructions for use for measuring with funnels
