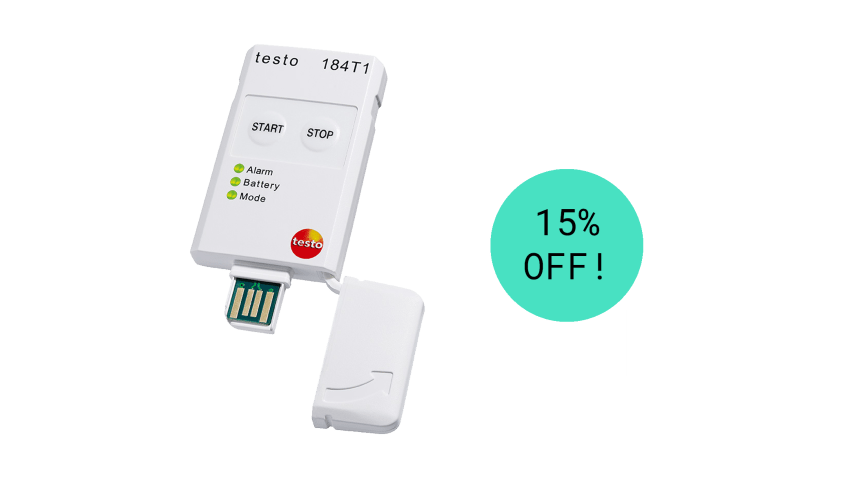

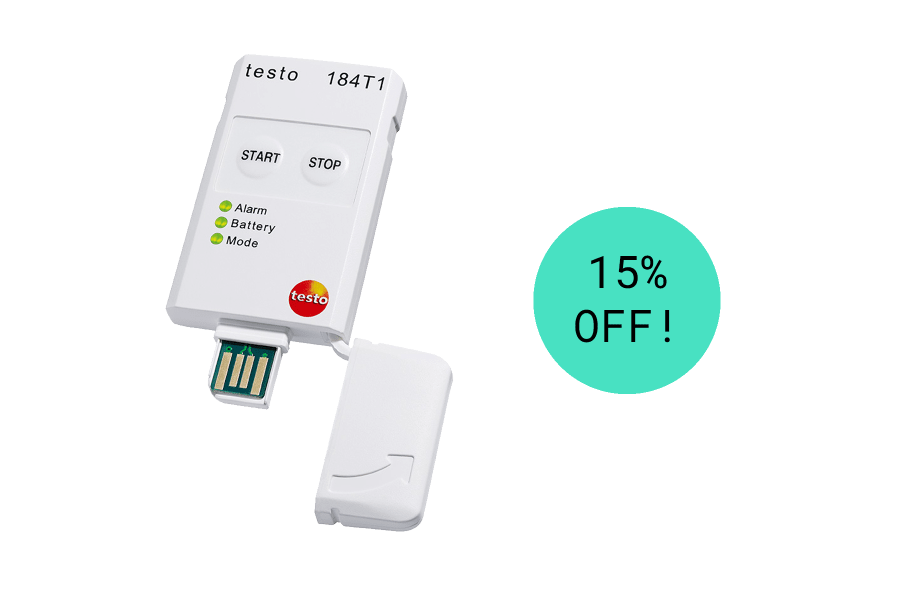

testo 184 T1 - Short-term temperature USB transport data logger

0572 1841

testo 184 T1 - Short-term temperature USB transport data logger

The testo 184 T1 short-term temperature logger is ideally suited for monitoring cold chain transportation. The 184 T1 alerts you when your specified limits have been exceeded. With configuration, reports, and even calibration certificates on-board, the 184 series loggers eliminates the hassles of temperature sensitive goods transport monitoring and documentation.

Compliant with GxP, 21 CFR Part 11, HACCP and EN 12830

The testo 184 T1 is an ideal logger for both pharmaceutical and food cold chain logistics. Configuration of the testo 184 short-term temperature logger is as simple as plugging into a USB port and customizing the included PDF file. With clear indication of configurable alarm settings, including measurement frequency, temperature range, and start and end times, ensuring proper cold chain transportation has never been easier. For international shipping, different languages can be independently configured for the recipient or shipper. Available in packs of 1, 10, or 50, configuring mutiple devices is as simple as drag and drop.

NFC communication to compatible devices allows for unaltered documentation to display immediately
Easy configuration on any computer with pre-loaded files
On-board electronic calibration certificate eliminates the hassles of maintaining traceabilty
IP67 protection class
GxP, ISO 9001:2008, FDA 21 CFR Part 11, EN 12830, and HACCP International compliant

Temperature - NTC

Temperature - NTC	Measuring range -31° to 158 °F / -35 to +70 °C
	Accuracy ±0.9 °F / ±0.5 °C
	Resolution 0.1 °F / 0.1 °C
	Reaction time t90 = 30 min
	Measuring rate 1 min to 24 hr

General technical data

General technical data	Weight 1 oz. / 22 g
	Dimensions 1 x 0 x 3 in. / 35 x 9 x 75 mm
	Operating temperature -31° to 158 °F / -35 to +70 °C
	Housing ABS
	Protection class IP65
	System requirements Adobe® Acrobat Reader
	Product colour white
	Standards EN 12830; CE 2014/30/EU; DIN EN 50581:2013; DIN EN 61326-1:2013; 2011/65/EU
	Certificate type Certified by HACCP International
	Channels 1 internal
	Operating time 90 days days from the first time the program is started (5-minute measuring cycle, -35 °C)
	Authorizations CE; RTCA/DO-160G
	Alarmsignal by LED
	Battery type Lithium battery non exchangeable
	Interface USB; NFC
	Memory 16,000 measuring values
	Storage temperature -31° to 158 °F / -35 to +70 °C
Maximum storage duration: 1 year after delivery

testo 184 T1 short-term temperature logger and adhesive installation pad

Instruction manual testo 184(909.16 KB)

testo 184 T1 Configuration(v1.17, 277.45 KB)
This pdf document is a configuration file, therefore you might not be able to open it in your web browser. Please download the data and open it using your Adobe Acrobat Reader.
