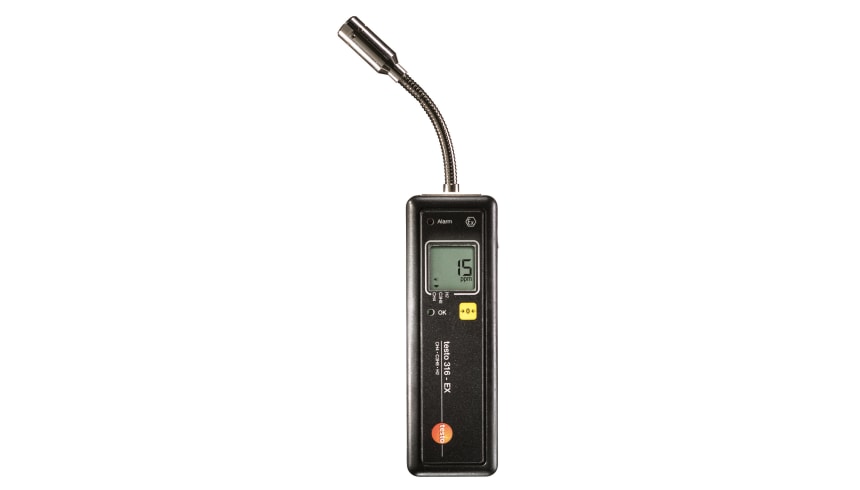

testo 316-EX - Gas leak detector

Order-Nr.  0632 0336

  • testo 316-EX

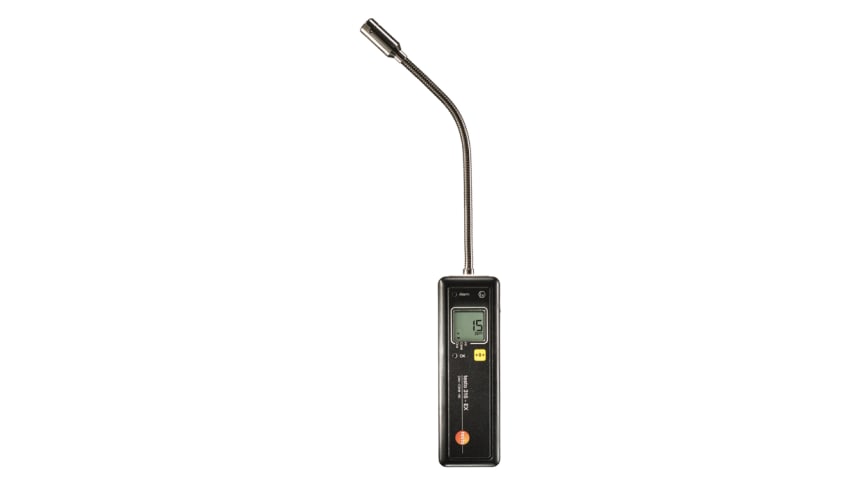

  • testo 316
Where to buy
+1-484-705-0999
Inquiry

  • ATEX approval (94/9/EC)

  • ppm and vol.% display

  • Flexible probe for inaccessible areas

  • 3 different types of gas can be detected: methane, propane and hydrogen

The testo 316-EX gas leak detector helps you detect gas leaks. Gas verification and gas leak location can be carried out on gas pipes and installations both indoors and outdoors.

Details

Product Description

When house owners notify the network operator or fitter that they can clearly smell gas in the house, a highly explosive gas concentration may already be present (4–17%). The fitter has to use a gas detector to check sections of gas pipes for leak tightness to locate possible leaks.


The testo 316-EX gas leak detector offers EU ATEX protection (ATEX approval 94/9/EC). Use the multi-range gas detector to detect methane, propane and hydrogen gases. The gas concentrations are measured in the ppm range with a semiconductor sensor and are shown on the display with a resolution of 1 ppm. Flexible measuring probes mean you can search for leaks even in inaccessible areas.

Delivery Scope

testo 316-EX electronic gas leak detector with EX protection, including batteries, case, Allen key and calibration protocol

Technical Data

General technical data

Operating humidity

20 to 80 %rH (not condensed)

Weight

Approx. 7 oz. / Approx. 200 g

Reaction time

14 sec t₉₀

Dimensions

5 x 2 x 1 in. / 135 x 45 x 25 mm

Operating temperature

14° to 104 °F / -10 to +40 °C

Protection class

IP54

EU-/EG-guidelines

94/9/EG (ATEX); EU-guideline 2014/30/EU

Battery type

2 AA batteries

Battery life

to 10 h

Battery feaute

Type permitted for use in areas with danger of explosion: Camelion Plus Alkaline LR6 (see order data, order no. 0515 0316)

Storage temperature

14° to 122 °F / -10 to +50 °C

Ex-protection

II 2G EEx ib IIC T1 (Ex Zone 1)
Methane (CH₄)

Measuring range

1 ppm to 2.5 Vol.% CH₄

Resolution

1 ppm / 0.1 Vol.%

Lower response threshold

1 ppm
Propane (C₃H₈)

Measuring range

1 to 1.0 Vol.% C₃H₈

Resolution

1 ppm / 0.1 Vol.%

Lower response threshold

1 ppm
Leak detection H₂

Measuring range

1 ppm to 2.0 Vol.% H₂

Resolution

1 ppm / 0.1 Vol.%

Lower response threshold

1 ppm
