testo 317-1 - Gas spillage detector

Order-Nr. 0632 3170

Where to buy

Reliable detection of escaping flue gases
Flexible probe for inaccessible areas
Acoustic and visual alarm

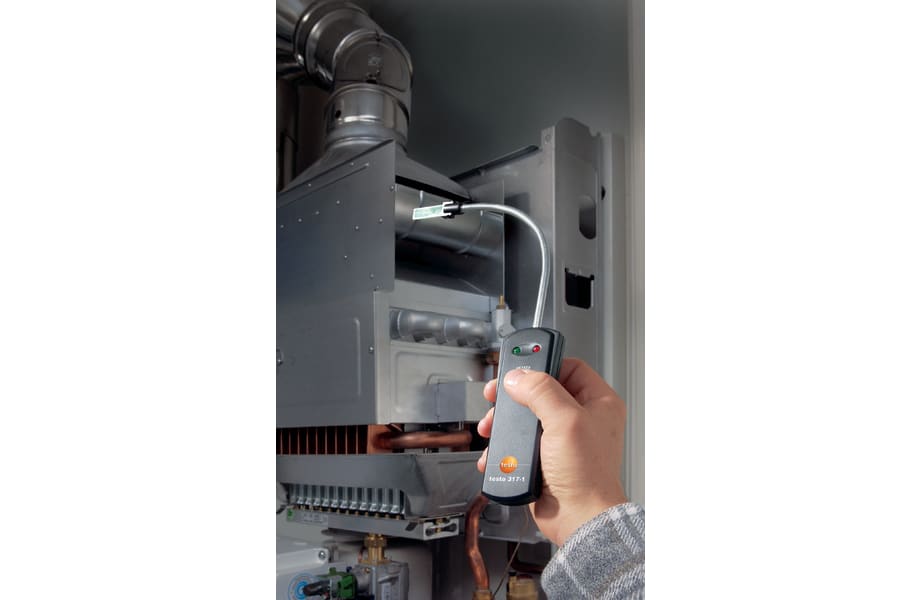

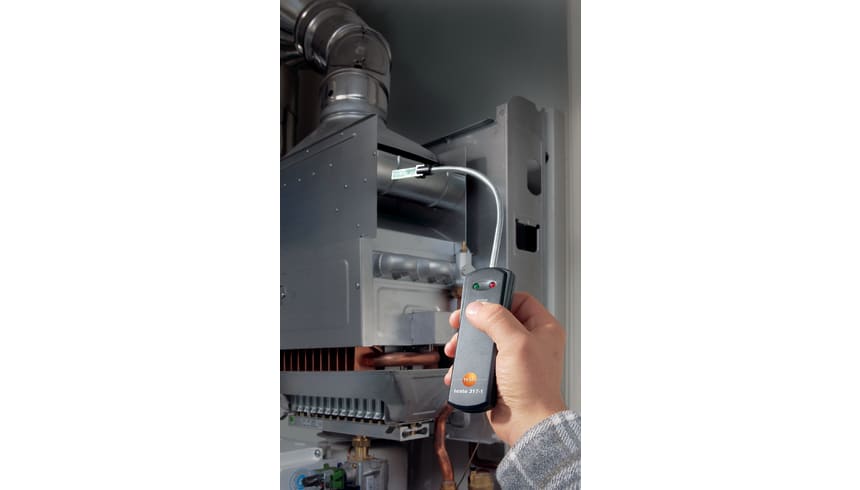

Gas leaks on heating systems can quickly become a problem, because breathing in poisonous gases leads to health risks or even a risk of death. With the testo 317-1 back pressure indicator, you have a handy measuring instrument which detects escaping heating flue gases quickly and reliably.

Details

Product Description

The testo 317-1 quickly and efficiently detects escaping flue gases at the source. Flue gas escaping from a burner is caused by equipment failure and is an indicator of CO in the living space; this will trigger an audible and optical alarm.

Delivery Scope

testo 317-1 back pressure indicator, including battery

Technical Data

General technical data
Weight	11 oz. / 300 g
Reaction time	2 sec
Dimensions	5 x 2 x 1 in. / 128 x 46 x 18 mm
Measuring medium	Ambient air
Alarmsignal	audible; rpm - Optical
Battery type	3 x AAA
Length probe shaft	7.874 in. / 200 mm
Length probe shaft tip	1.378 in. / 35 mm
Diameter probe shaft tip	0.394 in. / 10 mm

Downloads

Product Brochures

Data Sheet for testo 315-4, testo 317-1, and testo 317-3 (application/pdf, 420 KB)

Manuals

instruction manual testo 317-1 (PDF, 200.5 kB)
