testo 830-T2 kit - Infrared thermometer

Order-Nr. 0563 8312

Where to buy

Laser marking
12:1 optics and high resolution processor for accurate measurement results
Quick response surface temperature sensor with spring-mounted cross-strip
Precision with 0.1 °C resolution
Easy to use thanks to the gun-style design
Adjustable emissivity

The testo 830-T2 IR temperature meter can be used for carrying out non-contact temperature measurements. The kit includes a cross-strip/surface temperature sensor for measuring materials with low degrees of emission and control measurements.

Details

Product Description

The testo 830-T2 kit with infrared thermometer provides you with just the equipment you need to carry out quick and precise temperature measurements in trade and industry.

The testo 830-T2 has a 2-point laser measuring spot marking, 12:1 optics and a new processor for even more precise temperature measurements. The surface temperature sensor included is ideal for carrying out control measurements on materials with a low degree of emission.

The kit includes a testo 830-T2 infrared thermometer

For non-contact, high-precision surface temperature measurements in trade and industry:

Processor for high-precision readings
Precision 12:1 optics/measuring spot marking - including over greater distances
2-point laser measuring spot marking
Two adjustable, user-defined thresholds
Visual/audible alarm alert user when thresholds are exceeded
Min/max values
Connecting port for one external temperature sensor
Comfortable, easy-to-use pistol grip design
Crisp, clear, easy-to-read display

Surface temperature sensor with spring-mounted cross-strip

Ideal for control measurements that are needed in addition to non-contact measurements
Increases the measuring range - measures objects with low degrees of emission
Quick response time
Spring-mounted cross-strip – also suitable for uneven surfaces. Measures in seconds
Measuring range from –76 °F to +572 °F (for shorter periods up to +932 °F)

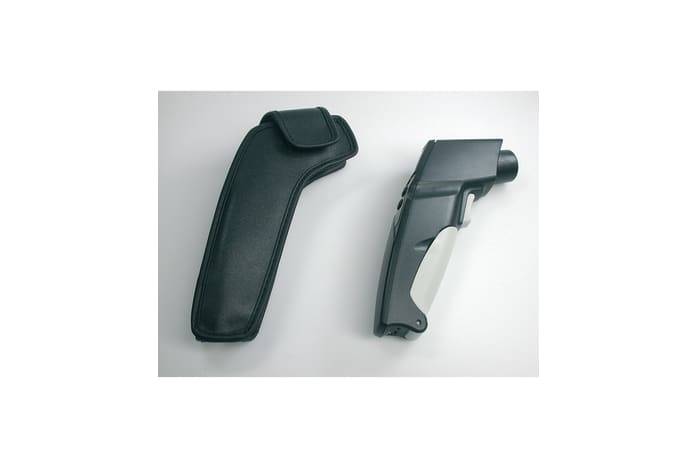

Protective case for the infrared thermometer

Leather case
Protects meter
Belt clip

Delivery Scope

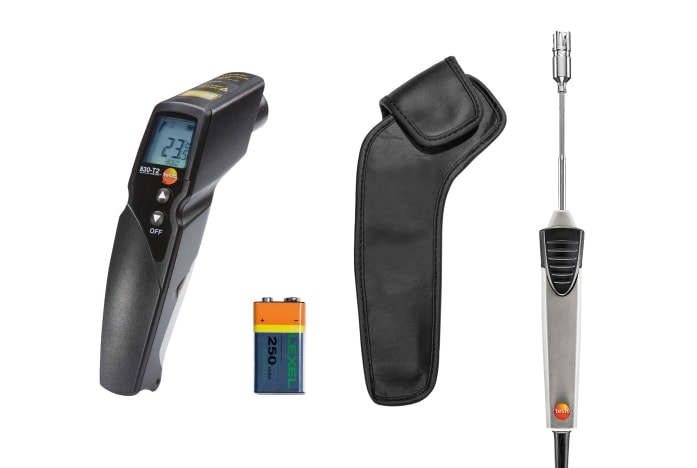

testo 830-T2 infrared thermometer, leather protective case, cross-strip/surface temperature sensor, batteries, workshop calibration certificate.

Technical Data

Temperature - Type K TC
Measuring range	-58.0° to 932.0 °F / -50 to +500 °C
Accuracy	±0.9 °F + 0.5 % of mv / ±0.5 °C + 0.5 % of mv
Resolution	0.1 °F / 0.1 °C
Measuring rate	1.75 sec

Temperature - Infrared
Measuring range	-22.0° to 752.0 °F / -30 to +400 °C
Accuracy	±2.7 °F or ±1.5 % of mv (+32.2° to +752 °F) / ±1.5 °C or ±1.5 % of mv (+0.1 to +400 °C) ±3.6 °F or ±2 % of mv (-22.0° to 32.0 °F) (the higher value applies) / ±2 °C or ±2 % of mv (-30 to 0 °C) (the higher value applies)
Resolution	0.1 °F / 0.1 °C
Measuring rate	0.5 sec

General technical data
Weight	7 oz. / 200 g
Dimensions	7 x 3 x 1 in. / 190 x 75 x 38 mm
Operating temperature	-4.0° to 122.0 °F / -20 to +50 °C
Housing	ABS
Battery type	9V block battery
Battery life	15 h
Storage temperature	-40.0° to 158.0 °F / -40 to +70 °C
