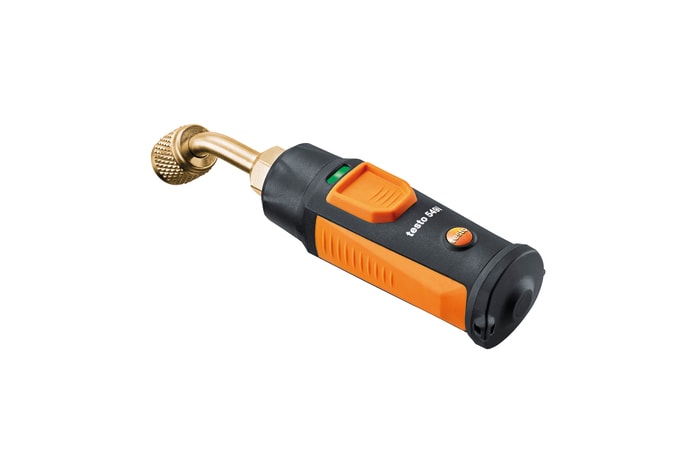

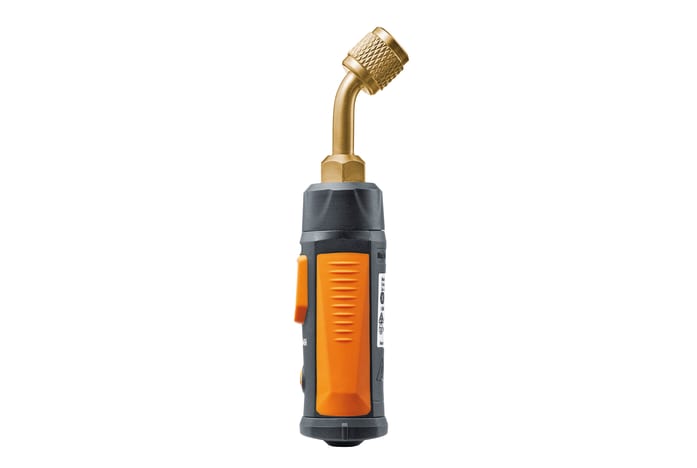

testo 549i high-pressure gauge operated via smartphone

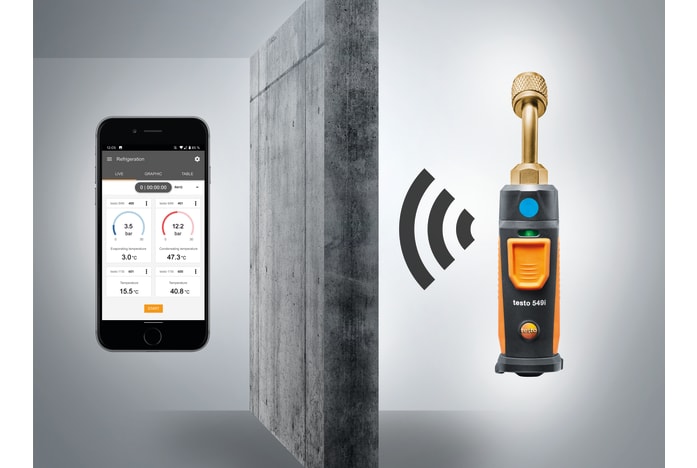

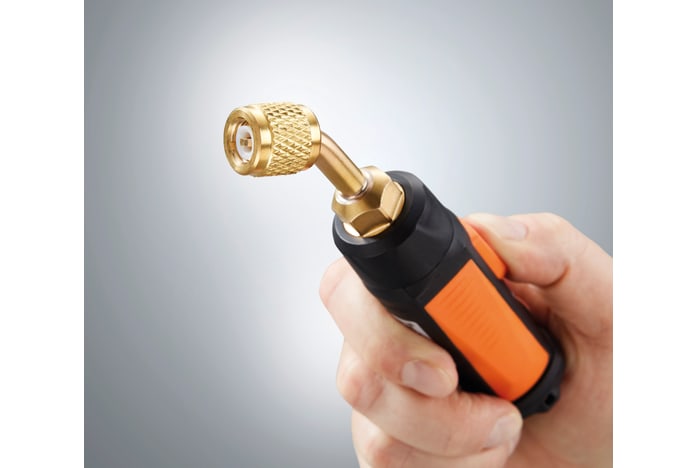

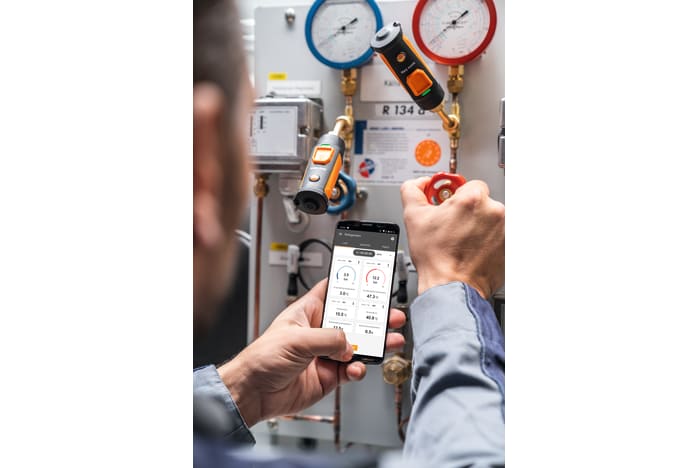

Testo offers you greater mobility when measuring: used in conjunction with your smartphone or tablet, the handy testo 549i high-pressure gauge is suitable for carrying out wireless servicing and troubleshooting on air conditioning and refrigeration systems, as well as for installing them. The measuring instrument can be quickly and easily attached directly to the pressure connection. The testo 549i makes it considerably easier to work on pressure connections that are a long distance apart, thanks to wireless connection to a smartphone or tablet.

Also practical: since no hoses are needed for the measurements, no refrigerant is lost, or only a very small quantity. When used in conjunction with the testo 115i clamp thermometer, individual refrigeration system parameters can also be calculated.

More measuring convenience thanks to the App

Readings can be viewed conveniently on your terminal device via the testo Smart App. In addition, the App enables automatic calculation of evaporation and condensation temperatures. All measurement data are presented either as a diagram or a table. Finally, the measurement data report can be e-mailed directly as a pdf or Excel file.

*Our tip: Use the testo 549i as a probe in conjunction with the appropriate IAQ measuring instrument from Testo.

Measuring range	-1 to +60 bar
Accuracy	±0,5 % of fsv
Resolution	0,01 bar
Probe connection	7 / 16 " - UNF
Overload rel. (high pressure)	+65 bar

Measuring range

-1 to +60 bar

Accuracy

±0,5 % of fsv

Resolution

0,01 bar

Probe connection

7 / 16 " - UNF

Overload rel. (high pressure)

+65 bar

Weight	156,6 g
Dimensions	125 x 32 x 31 mm
Operating temperature	-20 to +50 °C
Product-/housing material	Plastic
System requirements	requires iOS 13.0 or newer; requires Android 8.0 or newer; requires mobile end device with Bluetooth 4.2
Product colour	black/orange
Battery life	130 h
Battery type	3 AAA micro batteries
Data transfer	Bluetooth®
Radio range	100 m
Pressure media	CFC, HFC, HCFC, N, H₂O, CO₂
Storage temperature	-20 to +60 °C

Weight

156,6 g

Dimensions

125 x 32 x 31 mm

Operating temperature

-20 to +50 °C

Product-/housing material

Plastic

System requirements

requires iOS 13.0 or newer; requires Android 8.0 or newer; requires mobile end device with Bluetooth 4.2

Product colour

black/orange
