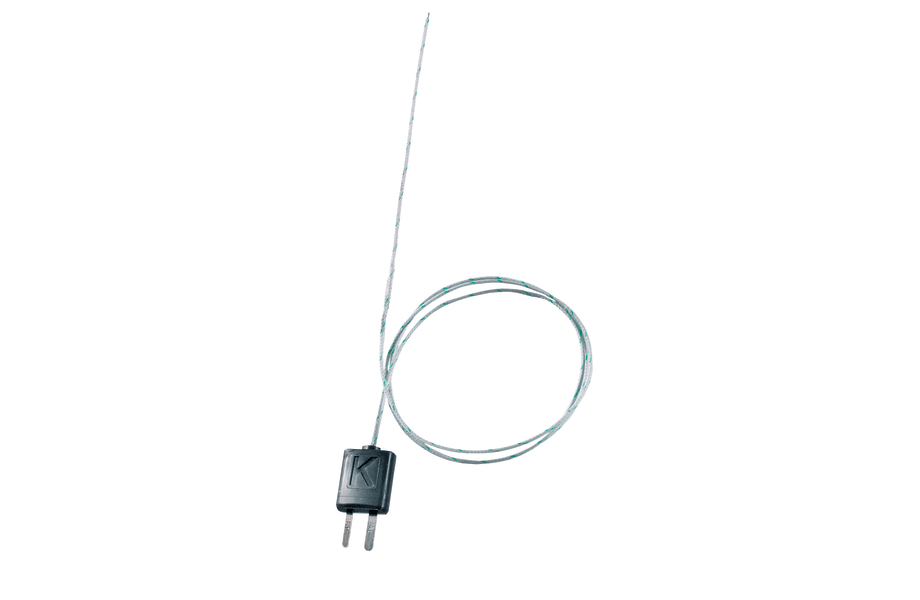

Flexible thermoelectric couple - with TC type K temperature sensor (glass fibre)

Order-Nr. 0602 0644

With glass fibre coating
Flexible cable
Thermocouple type K

Flexible thermoelectric couple with TC plug and glass fibre insulation for fast and easy temperature measurement (with the appropriate measuring instrument).

kn 115,50

kn 144,38 incl. VAT

E-Mail

Vaš zahtjev za narudžbu

Distributeri

Product Description

Delivery Scope

1 x flexible thermoelectric couple (TC type K temperature sensor) with glass fibre insulation and TC plug.

Temperature - TC Type K (NiCr-Ni)
Measuring range	-50 to +400 °C
Accuracy	Class 2 ¹⁾
Reaction time	5 s

1) According to standard EN 60584-2, the accuracy of Class 2 refers to -40 to +1200 °C.

General technical data
Weight	10 g
Length probe shaft	800 mm
Diameter probe shaft	1,5 mm
Product colour	silver
Interface	plug thermocouple

Certificates

ISO temperature calibration certificate for air/immersion probes; with 3 measuring points: -18 / 0 / +60 °C

Order Number: 0520 0001

Details

ISO temperature calibration certificate for air/immersion probes; with 3 measuring points: 0 / +150 / +300 °C

Order Number: 0520 0021

Details

DAkkS temperature calibration certificate for air/immersion probes; with 3 measuring points: -20 / 0 / +60 °C

Order Number: 0520 0211

Details

DAkkS calibration certificate for temperature for air/immersion and penetration temperature probes; calibration at 3 measuring points: 0 / +100 / +200 °C

Order Number: 0520 0221

Details
