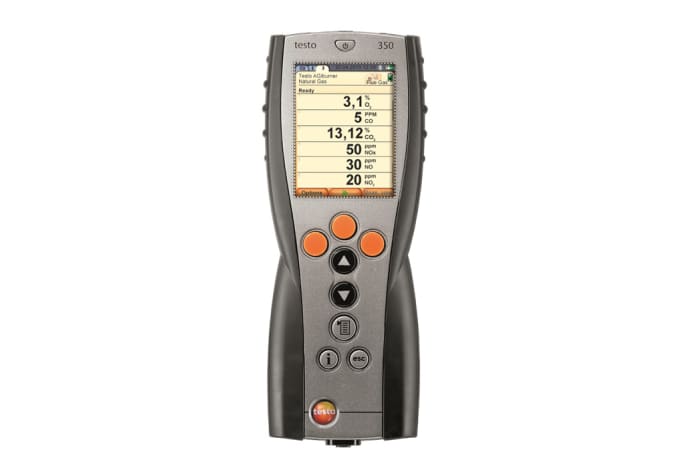

testo 350 - Control Unit for exhaust gas analysis systems

Order-Nr.  0632 3511

  • testo 350 Analysis Box just as easy to use when not positioned at measurement site

  • Internal memory for receiving measurement data from the Analysis Box

  • Large graphic color display, robust, industrial-type housing

  • User-friendly application-specific menu guide

The testo 350 flue gas analyzer fulfils the highest requirements in industrial emission measurement: easy handling, accurate measuring technology and robust design are practical features which impress on a daily basis. The Control Unit is the supplement to the testo 350 analyzer unit (please order separately) – it enables you to control emission measurement.

This meter uses a sensor to start up.

Click here for filter selection.

Product Description

Ideal for professional flue gas analysis and industrial emission measurement: the testo 350 flue gas analyzer performs a variety of measuring and analysis tasks, impresses over the long term thanks to its heavy-duty industrial design and is also suitable for complex data acquisition.



The testo 350 flue gas analyzer comprises two units

  • The testo 350 Control Unit with a clear graphic display enables you to control emission measurement. Operation is really easy: burner, gas turbine, engine and user-defined applications are the applications available for selection in the menu. The analyzer unit can be controlled using the Control Unit and it can also be operated in direct combination with a PC/notebook and the easyEmission software (via USB, Bluetooth® 2.0 or CANCase). After programming, the analyzer unit can carry out measurements and save the results autonomously. The Control Unit also enables remote control of the analyzer unit, even when there is a spatial separation of the flue gas pipe and the setting location – particularly recommended for emission measurements on large systems.
  • The testo 350 analyzer unit (separate product) is just what you need for carrying out emission measurement, because it contains all the sensor technology and electronics. The testo 350 analyzer unit includes an O2 gas sensor as standard, but at least one additional sensor must be connected for commissioning (can be used with a maximum of 6 sensors). When connecting the optional sensors, you can choose between gas sensors for CO, CO2, NO, NO2, SO2, H2S or CxHy.


The measuring range extension enables unrestricted measurements to be carried out, even when there are high gas concentrations. In order to protect the sensor technology, the measuring range extension (dilution) is automatically activated when there are unexpectedly high gas concentrations. The measuring range of a selected sensor can be extended by a specific factor. The service opening on the underside of the instrument allows fast access to all relevant serviceable and wearing parts, such as pumps and filters, enabling users to clean or replace these. In addition, the testo 350 has numerous instrument diagnosis functions. Instrument notifications are output in cleartext, making them easy to understand. The current status of the flue gas analyzer is constantly displayed.



Industrial emission measurement with the testo 350 flue gas analyzer

The testo 350 flue gas analyzer has been specially developed for the practical requirements in industrial emission measurement. You will find out more about the following in the Applications tab:
  • Emission measurement on industrial engines
  • Emission measurement on burners
  • Emission measurement on gas turbines
  • Emission measurement in thermal processes



Delivery Scope

testo 350 Control Unit, rechargeable battery, data memory, USB interface, testo data bus port.

General technical data

Weight

440 g

Dimensions

88 x 38 x 220 mm

Operating temperature

-5 to +45 °C

Product-/housing material

TPE PC

Protection class

IP40

Product colour

Black

Battery type

Lithium-Ion rechargeable battery pack, 2600 mAh, 3.7 V

Battery life

5 h (without wireless connection)

Display type

graphic Display

Display size

240 x 320 pixels

Display function

Colour graphic display

Maximum memory

2 MB (250,000 meas. values)

Interface

Bluetooth®; IR/IRDA interface; USB 2.0; data bus; Mains connection

Storage temperature

-20 to +50 °C

Accessories

International mains unit

Order Number: 0554 1096

kn 308,00
kn 385,00 incl. VAT

Service measurement on gas turbines

Gas turbines are subject to flue gas limit values which are to be adhered to during operation and regularly checked depending on the size of the system. After commissioning and maintenance work, the system's emission values are checked for adherence to limit values and also the manufacturer's specifications, and documented if necessary.

Due to the low NO concentrations, emission measurements during inspection and adjustment work on LowNOx gas turbines need to be extremely accurate. The portable flue gas analyzer testo 350 featuring the combination of NO2 sensor and special NOlow sensor with a resolution of 0.1 ppm enables precisely these requirements to be met. In addition, the integrated gas preparation and special flue gas probe with patented special hose provide protection against NO2 absorption and allow measured values to be compared, irrespective of date and ambient conditions.

Service measurement on industrial engines

The flue (exhaust) gas analyzer testo 350 is an important tool for adjusting a gas or diesel engine to optimum effect. The testo 350 is used, for example, during commissioning, at regular maintenance intervals, or for troubleshooting unstable operational processes. Exhaust gas measurement is necessary to adjust the engine to optimum operating parameters while complying with the limit value regulations in force - this often entails measurements being taken over several hours. In particular, the high and fluctuating proportion of NO2 in the engine exhaust gas makes the separate measurement of NO and NO2 necessary to provide a highly accurate indication of the real NOx value of the engine. The integrated gas preparation and the special exhaust gas probe for industrial engines with patented special hose provide protection against NO2 and SO2 absorption and allow measured values to be compared, irrespective of date and ambient conditions.

Service measurement on after treatment systems

Restrictive limit values necessitate the use of a portable flue/exhaust gas analyzer to reliably determine the exhaust gas parameters in front of and after the after treatment system. In addition to the regular inspections for mechanical damage and contamination, the flue gas measurement provides information about the efficiency and functional reliability of a system. The bus function of the flue gas analyzer testo 350 allows flue/exhaust gas to be measured simultaneously in front of and after an exhaust after treatment system; this enables fast and easy assessment of the system. Any system modifications can be obtained from the measurement protocol.

Analysis of the gas atmosphere (thermal processes)

The flue gas analysis is used for thermal process monitoring in process combustion systems, such as in continuous furnaces for the glass, ceramics and construction material sector, or in steel melting and hardening furnaces, etc. In processes of this kind, substances may pass from the product being processed into the flue gas, increasing the usual emissions produced by the combustion system;

vice versa, pollutants may pass from the gas and become part of the product being processed. The flue gas analyzer testo 350 can be used to pursue two main goals: monitoring of the process-related gas atmosphere to ensure the optimum quality of the processed products. The gas analysis provides information for process-related measures, such as the design of the furnace interior, flame control, fired product and furnace temperature, or the combustion air supply. At the same time, the gas analysis contributes to optimum operation of the system in terms of operating costs and safety.

Service measurement on industrial burners

For whichever purpose combustion systems are used, whether for heating, generating electrical power, steam or hot water, for the production or surface treatment of certain materials, or to incinerate waste and scrap materials, the best possible way of managing combustion and incineration definitely includes the right knowledge about the compositions of fuels and combustion air, and their relationship to one another. Even how they are combined is crucial. Mobile measuring technology allows all relevant gases to be analyzed and optimum combustion processes therefore to be achieved.

The purpose of using a portable flue gas analyzer is to test the environmentally sound operation of combustion systems and optimum utilisation of the system. This means that a combustion system can be adjusted to its optimum working range to enable it to meet or come within stipulated emission limit values, while achieving a maximum level of efficiency in terms of combustion. The accurate flue gas analyzer testo 350, suited to tough practical conditions, is not only used for commissioning purposes, but also for repeat gas analyses during operation.

Official emissions measurement (compliance testing)

In most countries, operation of all types of industrial plants (e.g. large power stations, steelworks. cement works, glass works, and chemical plants), and local authority facilities, right through to small production sites is subject to strict regulations governing exhaust gas emissions into the atmosphere. Suitable measures are be taken to ensure and regularly verify that the components defined as pollutants do not exceed certain limit values in the flue gas.

The flue gas analyzer testo 350 can be used to carry out a preliminary analysis before an official emissions reading, or, depending on the country and directive, the actual official compliance testing.
