testo Smart Probes VAC set - with smartphone operation

제품 번호  0563 0003

  • Easy parametrization of the outlet/duct cross-section for measuring the volume flow

  • List of multiple volume flows and calculation of the total volume flow (in the log)

  • Identification of mould risk thanks to the combined utilization of testo 605i and testo 805i

  • Rapid image documentation with IR temperature readings and measuring spot marking

With the Testo Smart Probes VAC set, you can check air velocities, humidity, volume flows and temperatures in, on and around air conditioning systems. The robust testo Smart Case enables the measuring instruments to be conveniently transported and ensures that they are always to hand when needed.

제품 설명

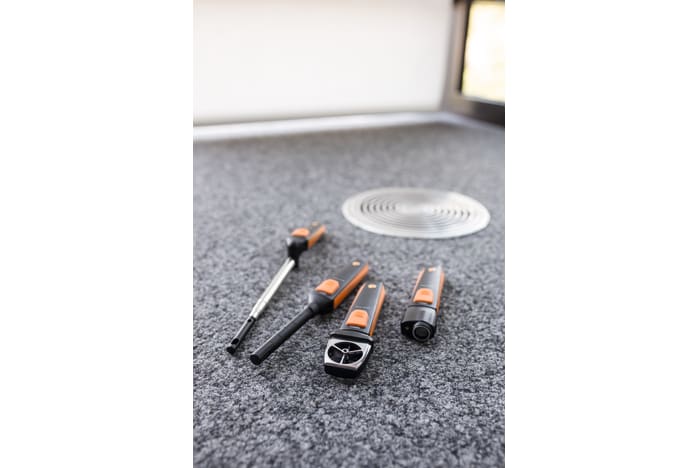

The compact testo Smart Probes VAC set includes four measuring instruments that can be used with your smartphone/tablet for key measuring tasks carried out by VAC engineers: the testo 405i thermal anemometer. the testo 410i vane anemometer, the testo 605i thermohygrometer and the testo 805i infrared thermometer.

Advantages of the testo Smart Probes VAC set

The measuring instruments in the testo Smart Probes VAC set can be connected quickly and easily to your smartphone or tablet via Bluetooth. You can therefore measure air velocities, humidity, volume flows and temperatures with intuitive ease using the testo Smart Probes App. The measuring instruments are easy to transport in the handy testo Smart Case and always to hand when needed.

Advantages and applications of the individual measuring instruments:

testo 405i: thermal anemometer with smartphone operation
  • Measurement of air velocity, volume flow and temperature
  • Simple configuration of the dimension and geometry of the duct cross-section for measuring the volume flow
  • Telescopic tube which can be extended to 400 mm

testo 410i: vane anemometer with smartphone operation
  • Measurement of air velocity, volume flow and temperature
  • Display of the volume flow of multiple outlets in order to adjust systems
  • Easy parametrization of the outlet (dimension and geometry)

testo 605i: Thermohygrometer with smartphone operation
  • Measurement of air humidity and temperature in rooms and ducts
  • Automatic calculation of the dew point and wet-bulb temperature

testo 805i: infrared thermometer with smartphone operation
  • Non-contact infrared measurement of surface temperature
  • Measuring spot marking via highly visible 8-point laser circle
  • Easy selection of emission level via stored materials list
  • Image documentation with readings and measuring spot marking


Practical App with special functions for measurement data analysis on your smartphone or tablet

Measurement data is transmitted wirelessly from the relevant measuring instrument to the testo Smart Probes App and can be viewed conveniently on mobile terminal devices – either as a chart or in table form. The App also offers practical functions such as timed and multi-point mean calculation, volume flow configuration, comparison of several volume flows at various outlets, automatic calculation of the dew point and wet-bulb temperature and identification of areas susceptible to mould via a clear traffic light system. The measurement data log can be emailed directly as a PDF or Excel file. This saves you time, allowing you to further increase your efficiency.

System requirements:
  • iOS 8.3 or later
  • Android 4.3 or later
  • Bluetooth 4.0



상품 제공 시 포함

  • testo 405i thermal anemometer with smartphone operation, including extendible (400 mm) telescope, batteries and calibration protocol.
  • testo 410i vane anemometer with smartphone operation, including protective cap, batteries and calibration protocol.
  • testo 605i thermohygrometer with smartphone operation, including batteries and calibration protocol.
  • testo 805i infrared thermometer with smartphone operation, including batteries and calibration protocol.
  • testo Smart Case “VAC”, including foam insert.
NTC

NTC 센서 측정 범위

-20 ~ +60 °C (testo 405i + testo 410i + testo 605i)

NTC 센서 정확도

±0.5 °C (testo 405i + testo 410i)

±0.8 °C (-20 ~ 0 °C) (testo 605i)

±0.5 °C (0 ~ +60 °C) (testo 605i)

NTC 센서 분해능

0.1 °C (testo 405i + testo 410i + testo 605i)

적외선

적외선 측정 범위

-30 ~ +250 °C

적외선 정확도

±1.5 °C 또는 ±1.5 측정값의 % (0 ~ +250 °C)

±2 °C (-20 ~ -0.1 °C)

±2.5 °C (-30 ~ -20.1 °C)

적외선 분해능

0.1 °C

정전용량형 습도센서

습도 측정범위

0 ~ 100 %RH

정전용량형 습도센서 정확도

5 ~ 80 %RH: ±(1.8 %RH + 3 측정값의 %) at +25 °C

습도 분해능

0.1 %RH

핫 와이어

열선 측정범위

0 ~ 30 m/s

핫 와이어 정확도

±(0.1 m/s + 5 측정값의 %) (0 ~ 2 m/s)

±(0.3 m/s + 5 측정값의 %) (2 ~ 15 m/s)

분해능

0.01 m/s

기술 데이터

크기

200 x 30 x 41 mm (testo 405i)

140 x 36 x 25 mm (testo 805i)

154 x 43 x 21 mm (testo 410i)

243 x 30 x 24 mm (testo 605i)

작동 온도

-20 ~ +50 °C (testo 405i + testo 410i + testo 605i)

-10 ~ +50 °C (testo 805i)

시스템 요구

안드로이드_4.3; bluetooth_4.0

배터리 종류

AAA 배터리 3개 스마트 프로브

배터리 수명

15시간 (testo 405i), 130시간(testo 410i), 150시간 (testo 605i), 30시간 (testo 805i)

보관 온도

-20 ~ +60 °C

베인 직경

40 mm (testo 410i)
