testo 206-pH1 - pH/temperature measuring instrument for liquids

0563 2065
€ 251,00 € 303,71
1
  • Ideal for measuring the pH value of liquids
  • Temperature measurement is feasible thanks to the integrated temperature probe
  • The TopSafe protective case ensures that the pH/temperature measuring instrument is robust and waterproof
  • The set contains essential accessories, which you will always have to hand: calibration dosing bottles, TopSafe protective case, aluminium case, etc.
  • testo 206-pH1, TopSafe, lekvrije gelbewaringskap, gordel-/wandhouder , 250ml bufferoplossing met doseerkamer (pH 4.0 en pH 7.0) en hoogwaardige aluminium koffer
    pH value and temperature are key parameters for guaranteeing the quality assurance of products in the food sector, in the cosmetics industry, in the sanitary and HVAC sector, etc. With the testo 206-pH1 starter set, you can get started straight away with measuring the temperature and pH value in liquids (e.g. in drinking or heating water).


    Benefits of the pH/temperature measuring instrument set at a glance

    The testo 206-pH1 temperature and pH measuring instrument boasts the following features:

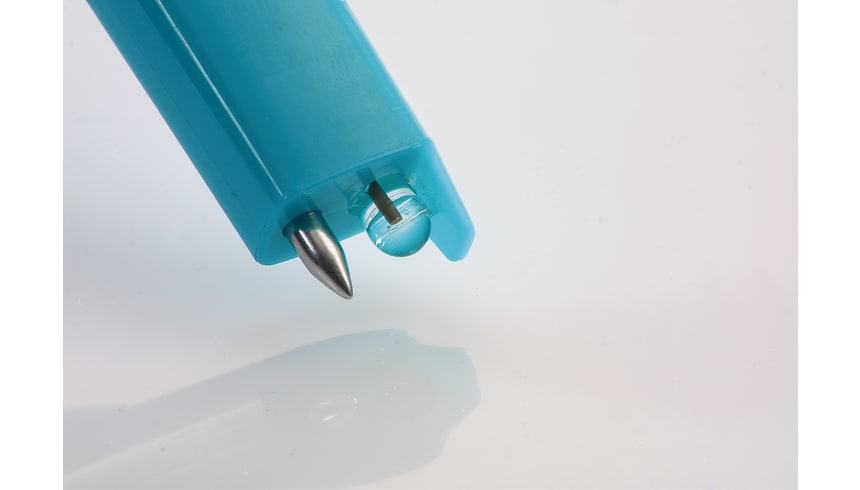

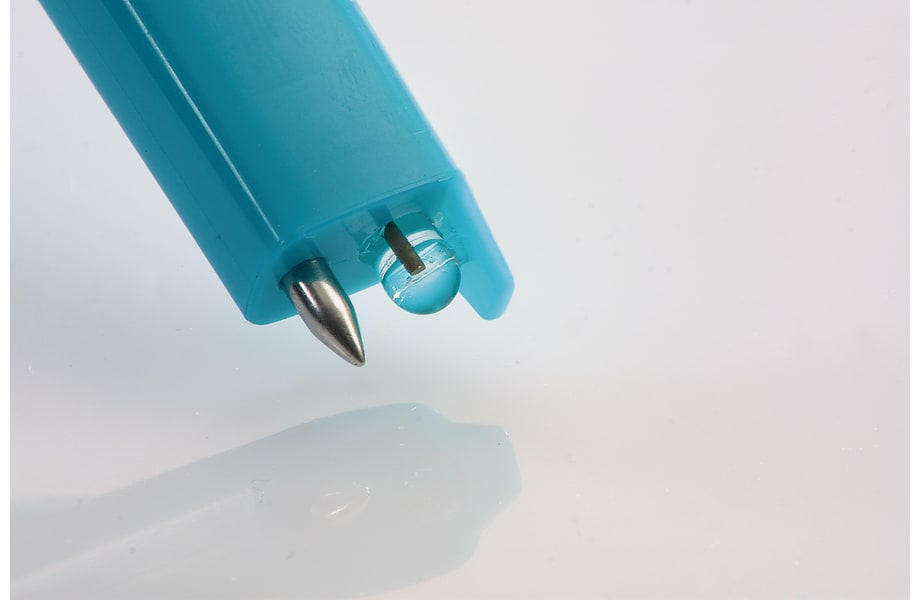

    • The pH probe is ideal for measurements in liquids. The temperature sensor ensures precise, fast temperature compensation, and therefore precise pH measurement
    • The pH probe is maintenance-free, leak-proof and insensitive to dirt thanks to the gel electrolyte in the probe
    • The dual wall diaphragm of the pH probe guarantees quick, reliable pH measurement
    • Simultaneous display of pH value and temperature on the clear display
    • Automatic final value recognition (auto hold): the reading is automatically held once it is stable
    • The measuring instrument enables 1-, 2-, or 3-point calibration – calibration dosing bottles for pH 4.01 and 7 are included in the set
    With the included accessories, you are ideally equipped for measuring pH:
    • TopSafe protective case: this is dishwasher-safe, hygienic and protects the measuring instrument from dirt, water and shock. Safely stored in the protective case, the pH measuring instrument is waterproof in accordance with protection class IP 68
    • Storage cap with gel: the storage cap, which is filled with gel electrolyte and attached to the pH probe, is used to store the probe between measurements
    • Calibration dosing bottles: both pH calibration solutions, pH 4.01 and 7, are DAkkS-certified and facilitate calibration of the pH probe. The pH probe is calibrated in the integrated dosing aperture of the calibration dosing bottle. This guarantees economical use of the calibration solution
    • Belt/wall bracket: used for storing the measuring instrument on the wall or on a belt
    • Robust aluminium case: this ensures safe transport of all the measuring equipment

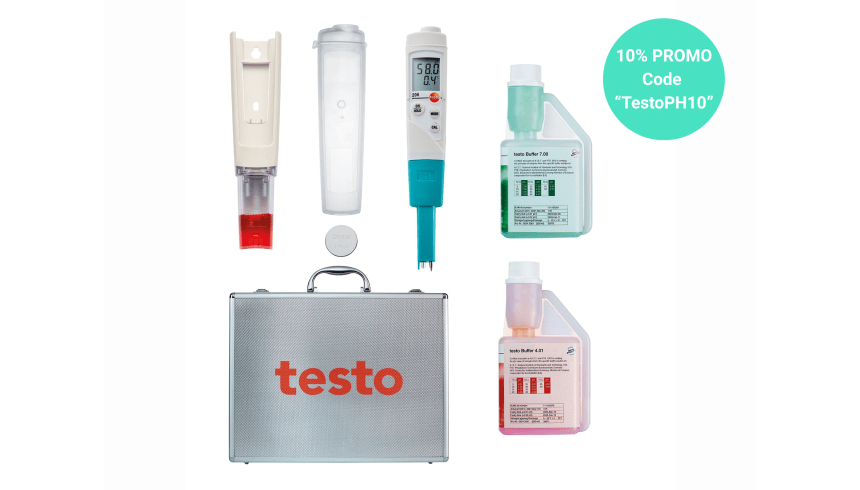

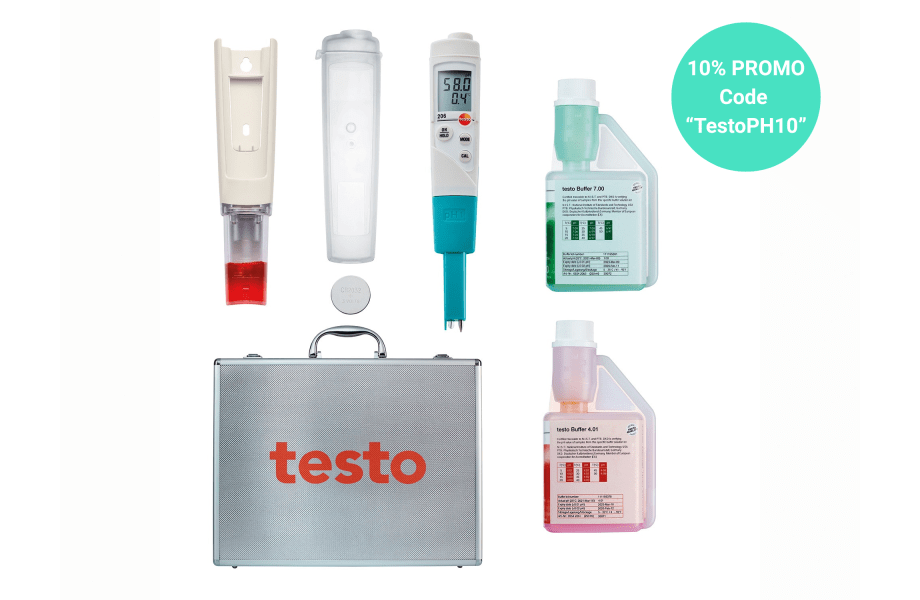

    •    testo 206 pH1 pH/temperature measuring instrument with pH1 probe for liquid media
    •    Storage cap with gel
    •    2 calibration dosing bottles, each 250 ml, pH 4.01 and 7
    •    TopSafe protective case
    •    Belt/wall bracket
    •    Aluminium case

    NTC

    Meetbereik
    0 tot +60 °C (Short-term to +80 °C max. 5 min)
    Nauwkeurigheid
    ±0,4 °C
    Resolutie
    0,1 °C

    pH - elektrode

    Meetbereik
    0 tot 14 pH
    Nauwkeurigheid
    ±0,02 pH
    Resolutie
    0,01 pH

    Algemene technische gegevens

    Gewicht
    69 g
    Afmetingen
    110 x 33 x 20 mm (without probe and TopSafe)
    197 x 33 x 20 mm ((L x B x H))
    Bedrijfstemperatuur
    0 tot +60 °C
    behuizing
    kunststof (ABS)
    beschermklasse
    IP68
    productkleur
    wit
    diameter pitotbuis
    15 mm
    lengte voerlerbuis
    3,5 mm
    Autorisatie
    CE 2014/30/EU
    batterijtype
    1 x knoopcel (CR 2032)
    levensduur batterij
    80 h (Auto Off 10 min)
    display type
    LCD
    display formaat
    2 regels
    aantal kanalen
    2-kanaals
    meetinterval
    2 metingen per seconde
    temperatuurcompensatie
    automatic
    Opslagtemperatuur
    -20 tot +70 °C

    pH-meting voor de kwaliteit in de voedingssector

    De pH-waarde is een belangrijke kwaliteitswaarde in de voedingssector. Het heeft vooral een effect op de eigenschappen van vlees en de daaruit afgeleide producten. In het bijzonder het waterbindend vermogen, de smaak, de kleur, de structuur en de houdbaarheid. In de bakkerijwereld kan de zuurgraad van de zuurdesem worden bepaald door middel van de pH-waarde. Voor producten zoals dressings, helpt de pH waarde ook bij de kwaliteit en de zuurgraad van het product.

    De voordelen van de pH-tester testo 206:

    - Snel meten van de pH-waarde

    - Verkrijgbaar in 3 verschillende versies – afhankelijk van het medium waarin gemeten wordt

    - Robuuste, waterdichte en vaatwasbestendige TopSafe beschermhuls (IP68)

    - Temperatuurcompensatie

    - Onderhoudsvrij gel-electrolyt

    - 1-, 2- of 3-puntskalibratie mogelijk

    testo-206

    pH-meting in de cosmetische industrie

    De pH-waarde van cosmetische producten moeten hiervoor gecontrolleerd en indien nodig aangepast worden tijdens het gehele productieproces zodat de kwaliteit gegarandeerd kan worden. De pH-tester testo 206 helpt u hierbij:

    - Snel meten van de pH-waarde

    - Verkrijgbaar in 3 verschillende versies – afhankelijk van het medium waarin gemeten wordt

    - Robuuste, waterdichte en vaatwasbestendige TopSafe beschermhuls (IP68)

    - Temperatuurcompensatie

    - Onderhoudsvrij gel-electrolyt

    - 1-, 2- of 3-puntskalibratie mogelijk

    testo-206
