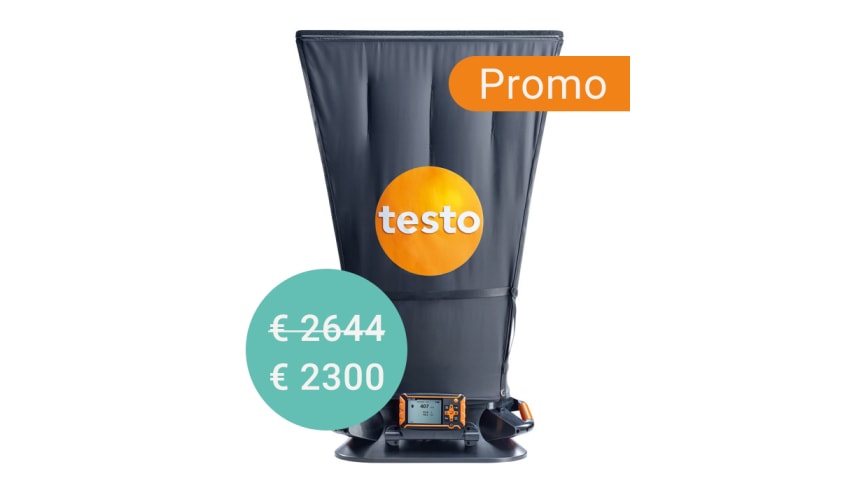

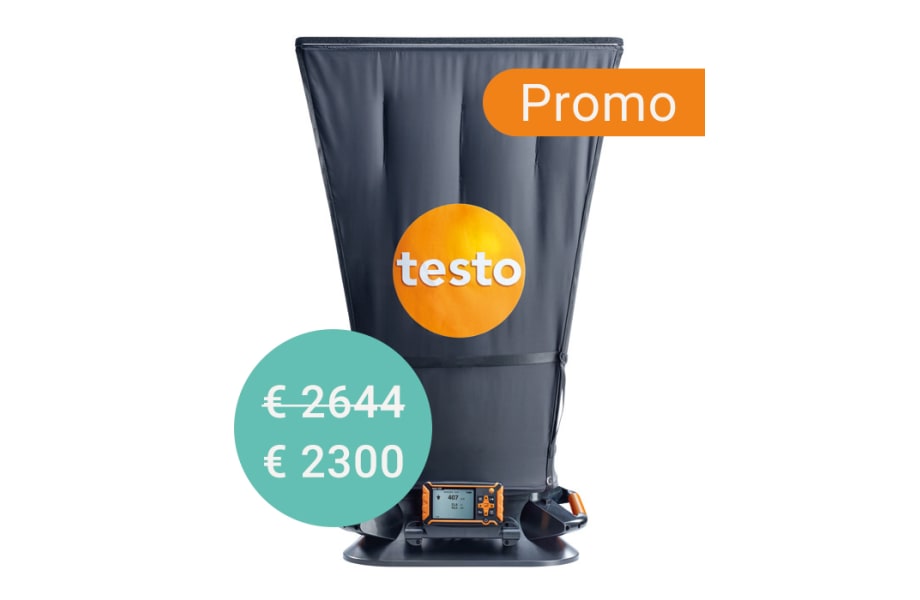

testo 420 - Luchtdebietsmeter voor grote luchtroosters



Artikelnummer  0563 4200

  • Debietsmeting van grotere roosters maar ook meting van temperatuur en relatieve vochtigheid

  • Uniek lichtgewicht van slechts 2,9 kg

  • Nauwkeurige meetresultaten aan wevelroosters dankzij de geïntegreerde stabilisator

  • Snelle installatie, comfortabele bediening en ter plaatse opmaken van meetrapporten met de speciale App

Voor een debietsmeting aan grotere roosters (600 x 600mm) is de luchtdebietsmeter testo 420 bijzonder geschikt. De meetkap met het afneembare meettoestel is niet enkel een lichtgewicht, hij levert ook nauwkeurige meetresultaten zelfs aan wervelroosters.

Productomschrijving

The testo 420 volume flow hood for larger air inlets and outlets enables fast and precise compliance with hygiene guidelines and requirements concerning room air quality. It provides reliable support with the calculation of the overall volume flow on HVAC systems, for instance in hospitals, office buildings or commercial buildings.

High measuring accuracy at swirl outlets thanks to volume flow straightener

Volume flow is frequently measured at swirl outlets. Air flows are often incorrectly measured due to the turbulent air at these outlets.

The testo 420 volume flow hood means you can significantly reduce these measurement errors. The integrated volume flow straightener calms the turbulence and converts it into a virtually uniform air flow. This enables accurate calculation of volume flow in the 80 to 3,500 m3/h range.

Exceptionally light volume flow hood with fast set-up

The volume flow hood with ergonomic handles and tiltable display has an exceptional weight of less than 2.9 kg. This means that frequent volume flow calculations in large rooms and measurements above head height can also be carried out reliably and comfortably. In the process, a large measuring button on the volume flow hood ensures easy recording of the readings.

The dimensions of the hood are 610 x 610 mm. We offer additional hoods as accessories for further ceiling outlets. The use of our optional tripod arm is a great help for air inlets and outlets which are located very high up. It can be extended up to 4 metres.

The volume flow hood is quick and easy to set up thanks to tension rods. The trolley which is included in the scope of delivery ensures safe transport.

Create protocols directly on site and mail them using the App connection

Take advantage of further practical functions and download our free App. Because the App connection enables mobile devices such as smartphones and tablets to be used as a secondary display and remote control via Bluetooth. This is particularly practical for using a tripod arm for high ceilings.

The App enables live measurement on HVAC systems using a start and stop function and the saving of measurement data in txt format. You can create the measurement protocol directly on site using the App. Measurement results, such as the overall volume flow and the air exchange rate, can be directly assigned to customer-specific protocol templates. You can then send your readings and protocols via the e-mail function. This means you save a considerable amount of time and increase efficiency.

Volume flow hood with removable measuring instrument - performance overview

The volume flow hood for HVAC systems is equipped with a measuring instrument for displaying measurement data. The device can be tilted and removed for user-friendly reading of measuring values.

The testo 420 measuring instrument enables you to measure flow velocity, volume flow, absolute pressure, temperature and relative humidity. The automatic zeroing ensures higher accuracy for low pressures.

All measuring values are easy to read on the large display which has an illumination function. For analyses and documentation, measurement data can be saved and measurement protocols created directly on site using the App connection. Administration of the measurement data is very easy on the PC without any additional software via the plug & play function.

The testo 420 volume flow hood with its integrated measuring instrument was not just developed for volume flow measurement at larger ceiling outlets. The measuring instrument can also be taken off the hood and used for pressure, flow and volume flow measurements in the duct. This means you can save on the purchase of an additional measuring instrument.

You merely have to attach a Pitot tube and connection hoses (both optional) for measurements in ducts. Timed and multi-point mean calculation, as well as the combination of the two, together with simple input of the duct geometry provide you with support for measurements in ducts.



Wat wordt er geleverd?

testo 420 incl.  5 steunstaven, USB-kabel, batterijen en trolley.
NTC

Meetbereik

-20 … +70 °C

Nauwkeurigheid

±0,5 °C (0 … +70 °C)

±0,8 °C (-20 … +0 °C)

Resolutie

0,1 °C

Reactietijd t₉₀

45 s (t90)

Capacitieve luchtvochtigheid

Meetbereik

0 … 100 %rF

Nauwkeurigheid

±1,8 %rF + 3 % v. Mw. at +25 °C

(5 … 80 %rF)

Resolutie

0,1 %rF

Verschildruk

Meetbereik

-120 … +120 Pa

Nauwkeurigheid

±2 % v. Mw. + 0,5 Pa at +22 °C, 1013 hPa

Resolutie

0,001 Pa

Reactietijd t₉₀

1 s (t90)

Absolute druk

Meetbereik

700 … 1100 hPa

Nauwkeurigheid

±3 hPa

Resolutie

0,1 hPa

Reactietijd t₉₀

1 s

Volumestroom

Meetbereik

40 … 4000 m³/h

Nauwkeurigheid

±3 % v. Mw. + 12 m³/h at +22 °C

1013 hPa (85 … 3500 m³/h)

Reactietijd t₉₀

1 s (t90)

Resolutie

1 m³/h

Algemene technische gegevens

Afmetingen

610 x 610 mm (Standard hood)

Operating temperature

-5 … +50 °C

EU-/EG-richtlijnen

EU-richtlijnen 2014/30/EU

batterijtype

Alkaline mangaan, mignon, type AA

levensduur batterij

40 h

display formaat

3.5"

display functies

Dot matrix

display verlichting

with illumination

interface

micro USB; Bluetooth® 4.0 wireless technology

opslag

2 GB (internal)

Opslagtemperatuur

-20 … +60 °C

Gewicht

2900 g
