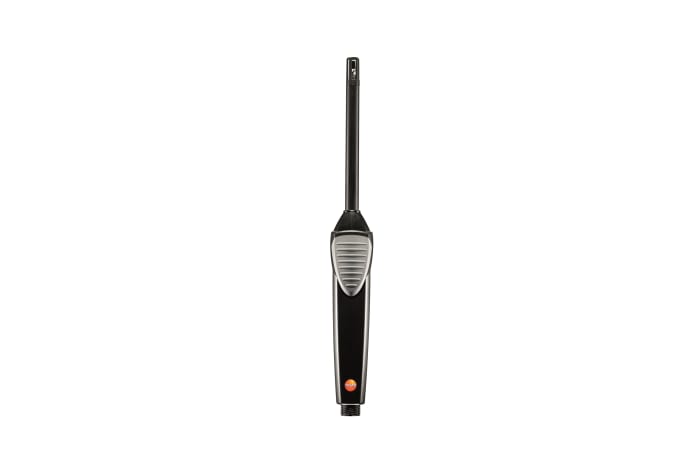

%RV en temperatuursonde Ø 12 mm

Bestelnr.  0636 9743

  • High-precision humidity measurement: accuracy of up to ±1% RH

  • Intelligent calibration concept

  • Temperature measuring range: -20 to +70 °C

%RV en temperatuursonde Ø 12 mm

€ 386,00
€ 467,06 inclusief btw

Productbeschrijving

Use the high-precision humidity and temperature probe (with an appropriate measuring instrument) for the following applications:
  • Measuring the relative humidity and temperature in storage, refrigerated and work areas or in air conditioning/ventilation ducts
  • Assessing thermal comfort
  • Ensuring the process climate in clean rooms
  • Checking the correct ambient conditions in production facilities to comply with quality standards

Intelligent calibration concept

The probe offers maximum digital measurement reliability. The digital probe allows readings to be processed directly in the probe. This technology eliminates instrument measurement uncertainty. The probe can be sent in for calibration on its own (without the measuring instrument). Calculating the determined calibration data in the probe generates a zero-error display.



Leveringsomvang

High-precision humidity/temperature probe (Ø 12 mm).
Note: You need a plug-in head cable (0430 0100) for this probe.


NTC

Meetbereik

-20 … +70 °C

Nauwkeurigheid

±0,2 °C (+15 … +30 °C)

±0,5 °C (overig meetbereik)

Resolutie

0,1 °C

Capacitieve luchtvochtigheid

Meetbereik

0 … 100 %rF

Nauwkeurigheid

±(1,0 %rF + 0,7 % v. Mw.) (0 … 90 %rF)

±(1,4 %rF + 0,7 % v. Mw.) (90 … 100 %rF)

Resolutie

0,1 %rF

Algemene technische gegevens

diameter pitotbuis

12 mm

Accessoires

Telescoop testo 480

Artikelnummer 0430 0946

€ 166,80
€ 201,83 inclusief btw
€ 290,00
€ 350,90 inclusief btw
Aansluitkabel

Artikelnummer 0430 0100

€ 53,00
€ 64,13 inclusief btw
Aansluitkabel 5 meter

Artikelnummer 0430 0101

€ 94,00
€ 113,74 inclusief btw

Certificaten

DAkkS-kalibratiecertificaat vochtigheid

Artikelnummer 0520 0206

€ 306,00
€ 370,26 inclusief btw
