Bestelnr. 0632 0336
ATEX approval (94/9/EC)
ppm and vol.% display
Flexible probe for inaccessible areas
3 different types of gas can be detected: methane, propane and hydrogen
Dankzij de ATEX bescherming, helpt de testo 316-EX gaslekdetector u om gaslekken op te sporen in gebieden met potentieel explosiegevaar.
| Algemene technische gegevens | |
|---|---|
Relatieve luchtvochtigheid |
20 tot 80 %RV (niet gecondenseerd) |
Gewicht |
Ca. 200 g |
Reactietijd |
14 s t₉₀ |
Afmetingen |
135 x 45 x 25 mm |
Bedrijfstemperatuur |
-10 tot +40 °C |
beschermklasse |
IP54 |
EU-/EG-richtlijnen |
94/9/EG (ATEX); EU-richtlijnen 2014/30/EU |
batterijtype |
2 x AA mignon-batterij |
levensduur batterij |
to 10 h |
batterij eigenschappen |
Uitsluitend gebruik maken van batterijen die toegestaan zijn voor het gebruik in gebieden met explosiegevaar: Camelion Plus Alkaline LR6 (zie bestelgegevens, bestelnr. 0515 0316) |
Opslagtemperatuur |
-10 tot +50 °C |
EX-bescherming |
II 2G EEx ib IIC T1 (Ex Zone 1) |
| Methaan | |
|---|---|
Meetbereik |
1 ppm tot 2,5 vol.% CH₄ |
Resolutie |
1 ppm / 0,1 vol.% |
ondergrens alarm |
1 ppm |
| Propaan | |
|---|---|
Meetbereik |
1 tot 1,0 vol.% C₃H₈ |
Resolutie |
1 ppm / 0,1 vol.% |
ondergrens alarm |
1 ppm |
| Waterstof-meting (H₂) | |
|---|---|
Meetbereik |
1 ppm tot 2,0 vol.% H₂ |
Resolutie |
1 ppm / 0,1 vol.% |
ondergrens alarm |
1 ppm |

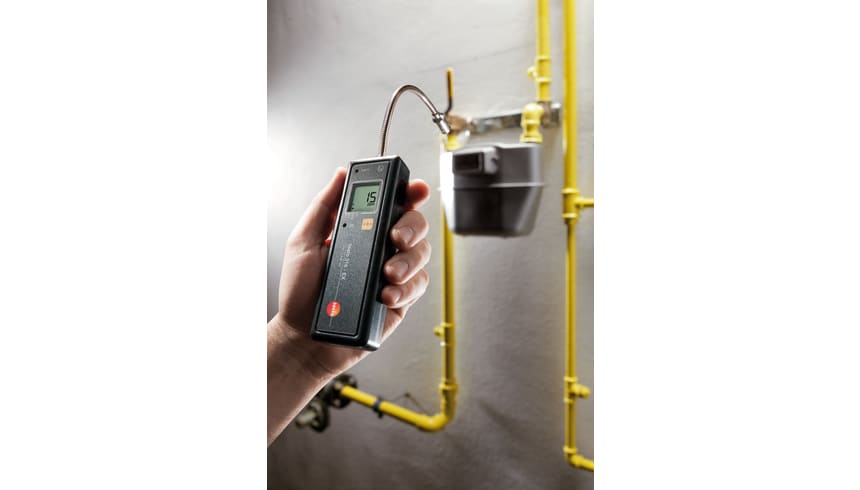

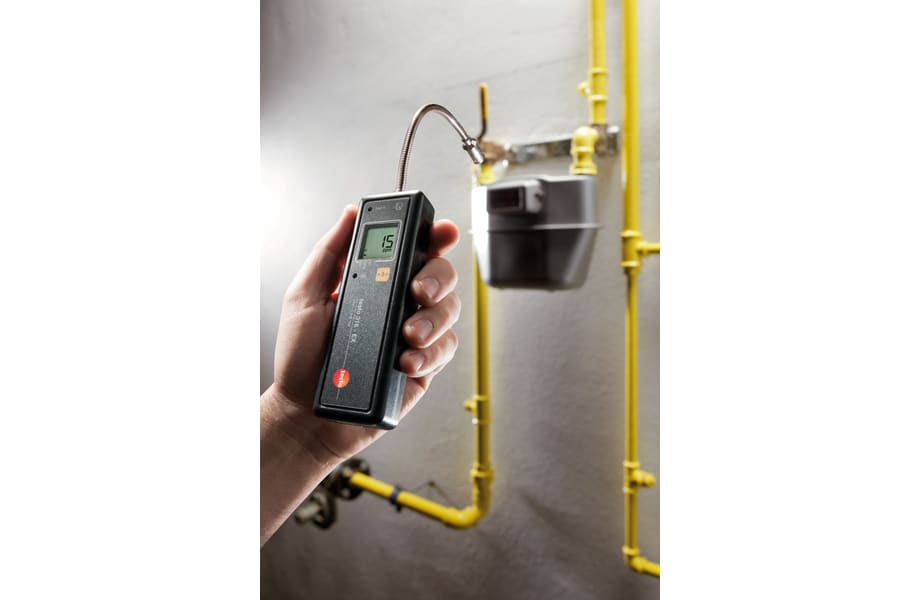

When there is a smell of gas in a house, the network operator and/or installer is alerted by the occupant. If the smell of gas is detectable by the nose, a highly explosive concentration of gas (4 % - 17 %) may already be present. The installer now undertakes a basic check of gas pipe parts for leak-tightness or to locate the leak. However, the gas leak detector must have an ATEX protection in this hazardous situation. The term ATEX comes from the French abbreviation for “ATmosphère Explosive”. This is a directive which includes the specification of which structural requirements must be met by measurement systems which have their own potential ignition sources and so could cause an explosion.
