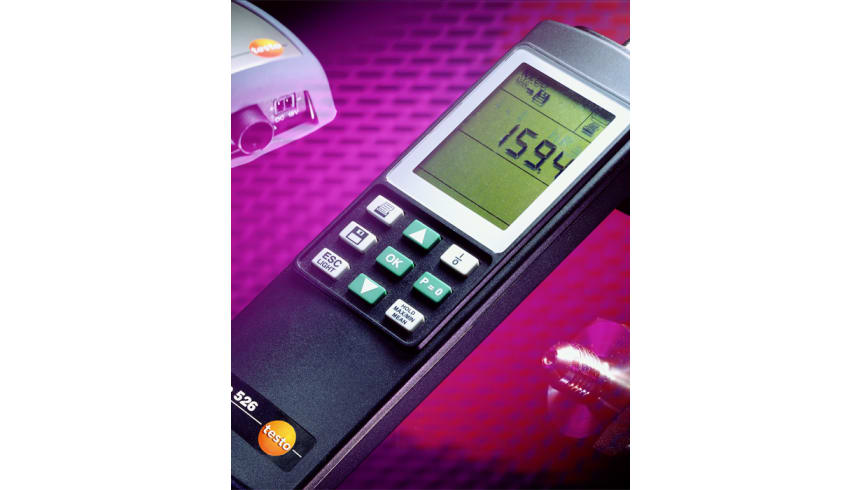

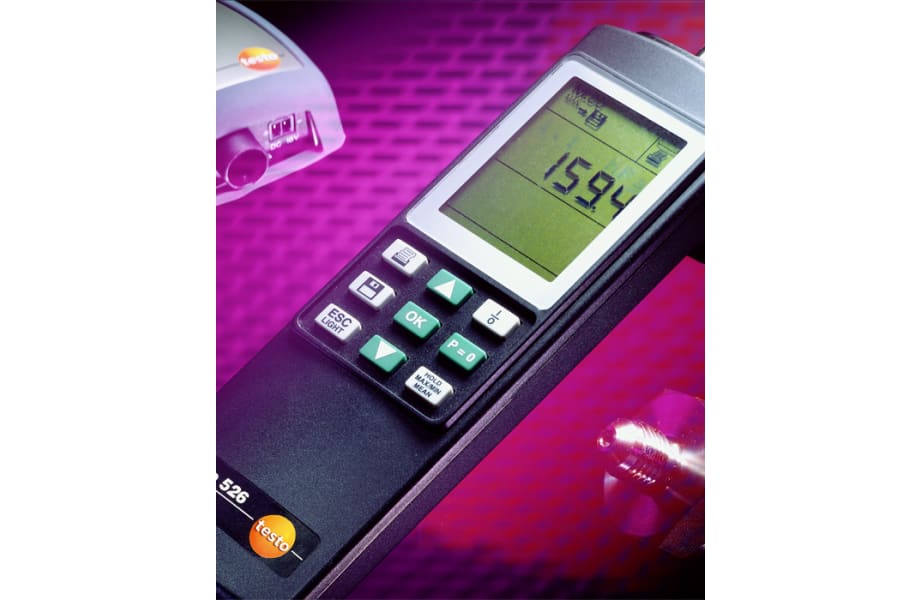

    testo 526-1 - High-precision differential pressure measuring instrument

    0560 5280
  1. Temperature-compensated differential pressure sensor
  2. Multi-point and timed mean calculation
  3. Recording of measurement data with freely selectable measuring rate
  4. 2 probe inputs for pressure and temperature
  5. Product no longer available. Are you familiar with the alternative?
    Why not enjoy the benefits that it has to offer:
    >> To the product
    The testo 526-1 is a high-precision differential pressure measuring instrument with an internal sensor and a measuring range from 0 to +2,000 hPa. It can calculate the differential pressure to an accuracy of ± 0.1% of final value.


    Additional probe inputs for versatile measurements with the differential pressure measuring instrument


    Up to two probes (optional) can also be attached via freely assignable probe inputs. You have the choice of a comprehensive range of probes for this:
    • Differential pressure probes
    • Absolute pressure probes
    • Relative pressure probes
    • Temperature probes, such as surface, immersion and penetration probes

    Further advantages of the testo 526-1 high-precision differential pressure measuring instrument

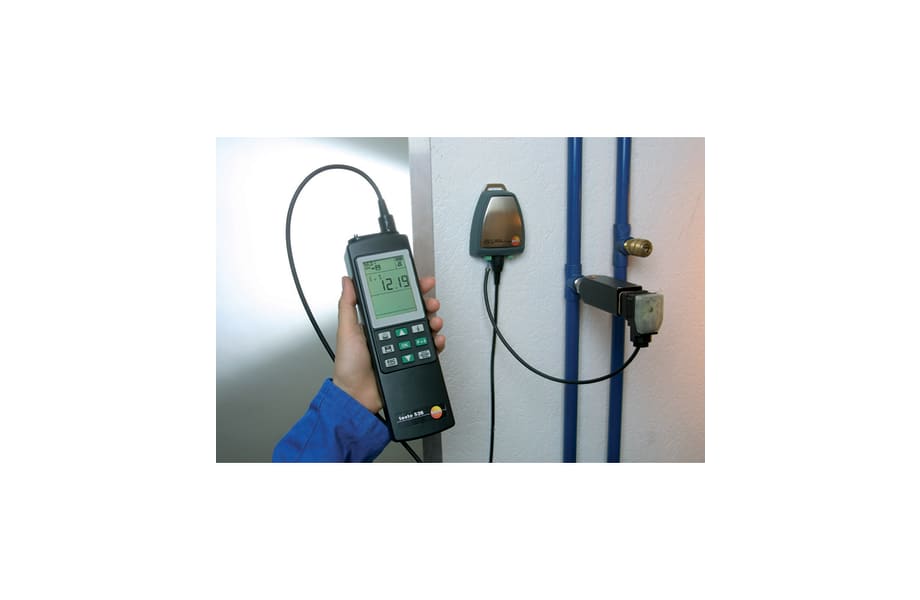

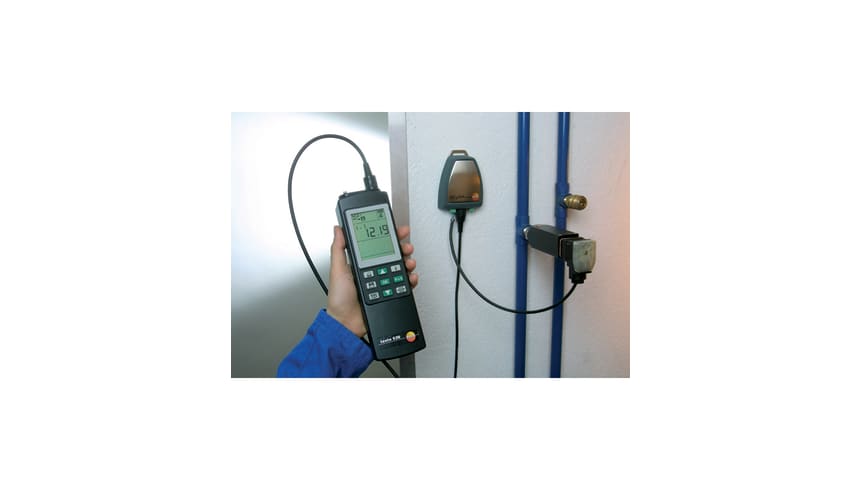

    The integrated test menu in the testo 526 enables seamless recording, especially for tightness testing on containers. To document the pressure test, there is an option enabling the measurement data to be processed and archived using software and/or printed out via the testo fast printer directly on site (software and printer available to order separately).

    The memory can record up to 25,000 readings. These are stored under their individually designated measuring locations (max. 99 measuring locations) which means they can be quickly found again. Measurement data can be saved individually or as a series of measurements. The measuring rate (0.04 seconds, 1 second to 24 hours) and the number of values to be stored can be freely selected.

    testo 526-1 high-precision differential pressure measuring instrument, including quick-release connections, calibration protocol and batteries.

    General technical data

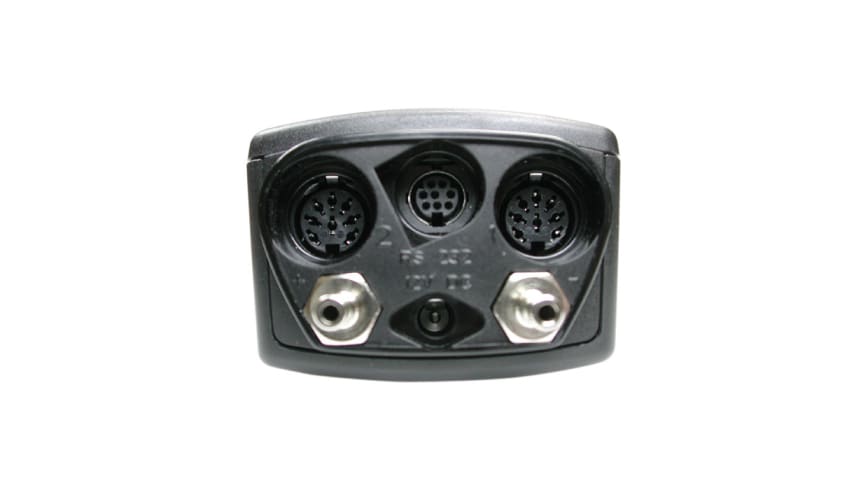

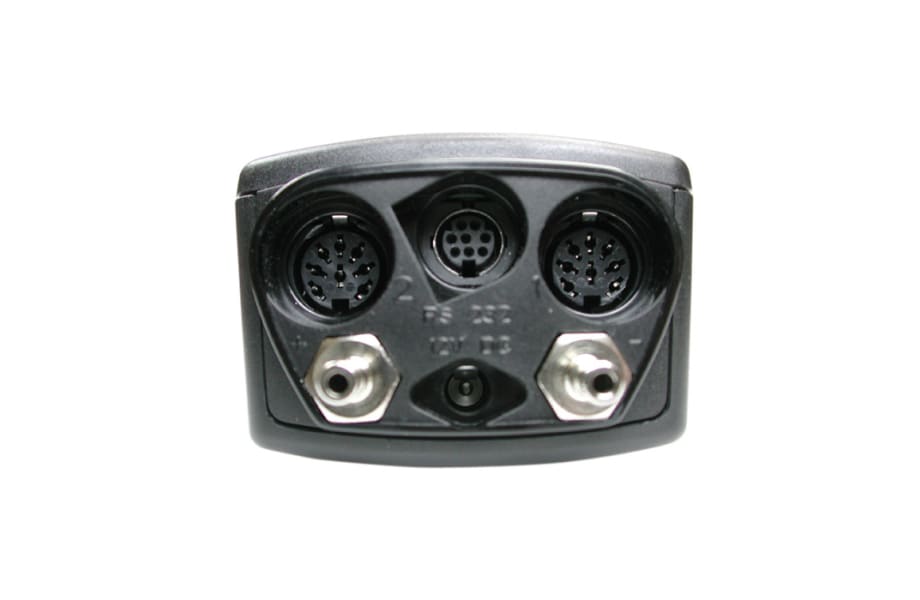

    Connection
    Hose: inner Ø 4 mm outer Ø 6 mm
    Display type
    LCD (Liquid Crystal Display)
    Display function
    with symbol, 7 segment display and point matrix
    Display update
    2x per second, in fast measurement 4x per second
    Power supply
    Battery/Rechargeable battery,Mains unit 12 V
    Interface
    RS232
    Memory
    100 kB; 25,000 measuring values

    Accessories for probes

    Additional accessories and Spare parts

  6. Additional accessories and Spare parts
    Desk-top power supply
    Desktop mains unit with international connection option
      :
      0554 1143
    • Certificates

      Printer and accessories

      Transport and Protection

    • Transport and Protection
      TopSafe
      TopSafe (protection case)
        :
        0516 0446
