testo 570s Smart Vacuum Kit

testo 570s Smart Vacuum Kit - Smart digital manifold with wireless vacuum and clamp temperature probes

0564 5702

testo 570s Smart Vacuum Kit - Smart digital manifold with wireless vacuum and clamp temperature probes

Start your wireless measurements on refrigeration and air conditioning systems and heat pumps straight away. The practical kit containing the testo 570s digital manifold with Bluetooth and 4-way valve block together with the wireless temperature and vacuum probes is ideal for long-term and standard measurements. The intelligent error analysis in the testo Smart App ensures reliable diagnostics following a long-term measurement, eliminating the need for lengthy searches. And with the world's longest battery life of 360 hours, testo 570s is ideal for long-term measurements, but also for all kinds of short-term applications over the course of a working week. In addition, with a measuring accuracy of 0.25% fs, the manifolds offer maximum precision even at low pressure values.

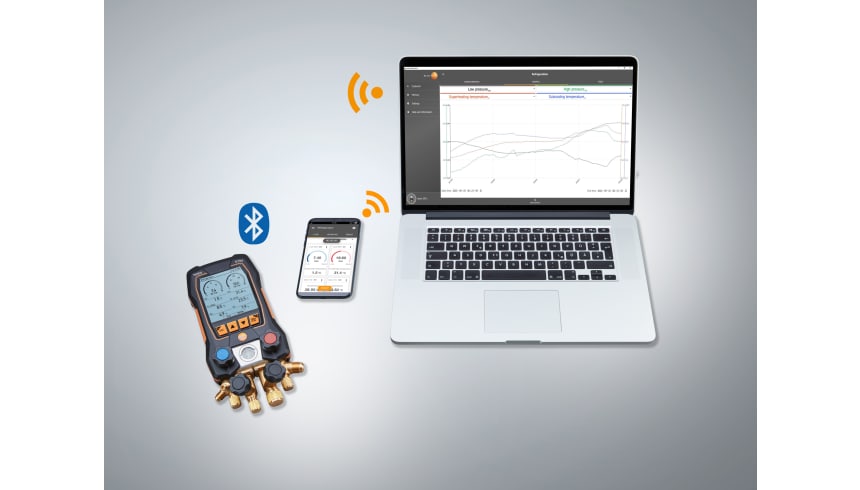

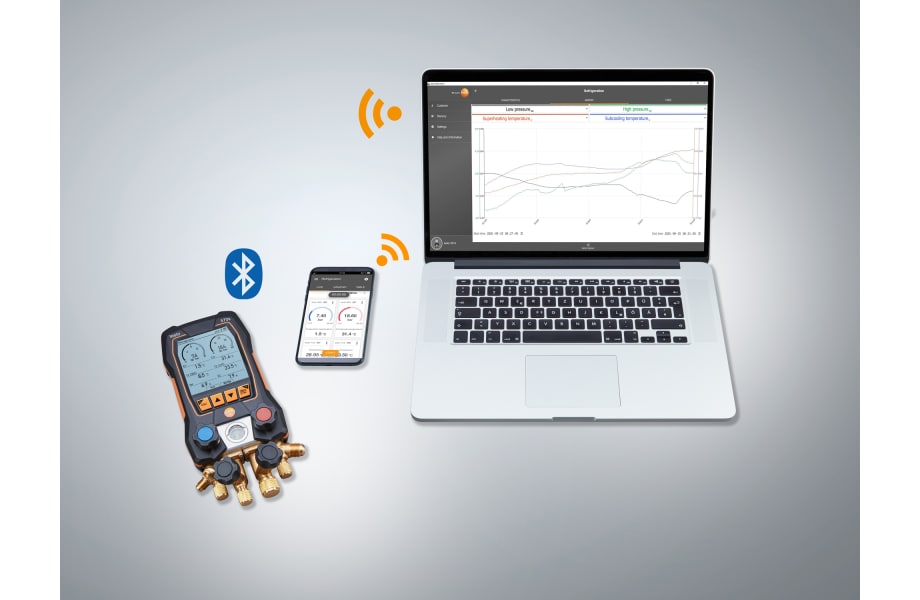

Long-term measurement with intelligent error analysis in the testo Smart App

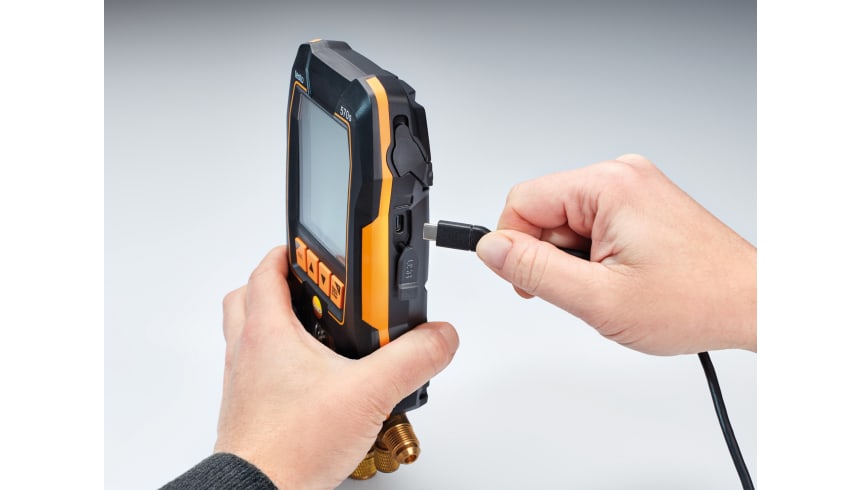

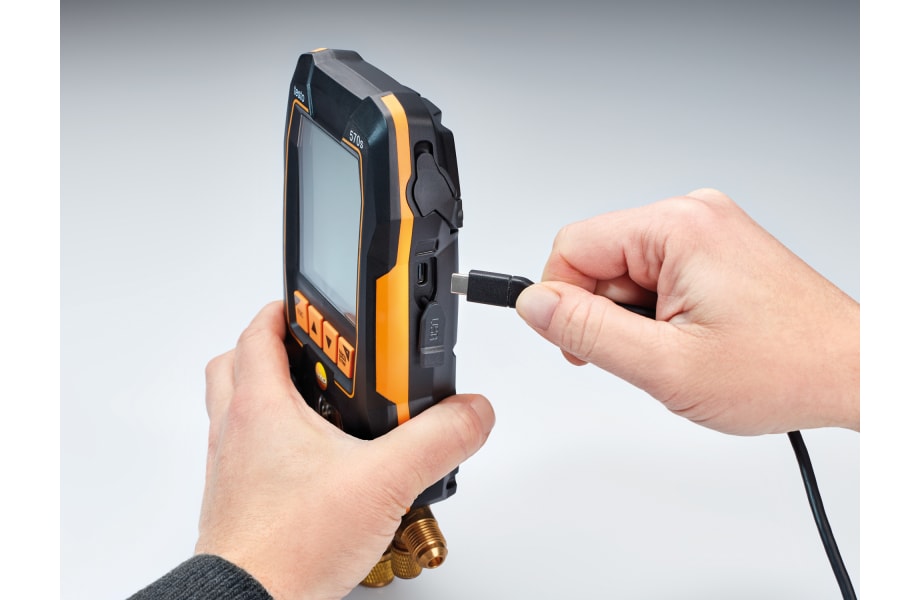

World's longest battery life of up to 360 hours with rechargeable battery (USB-C) and batteries
Suitable for use with A3 and A2L refrigerants

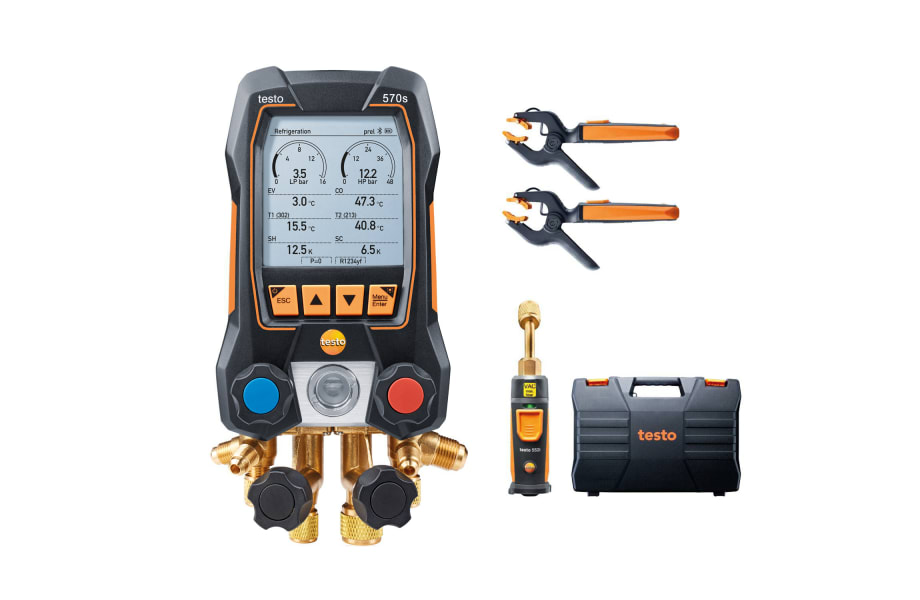

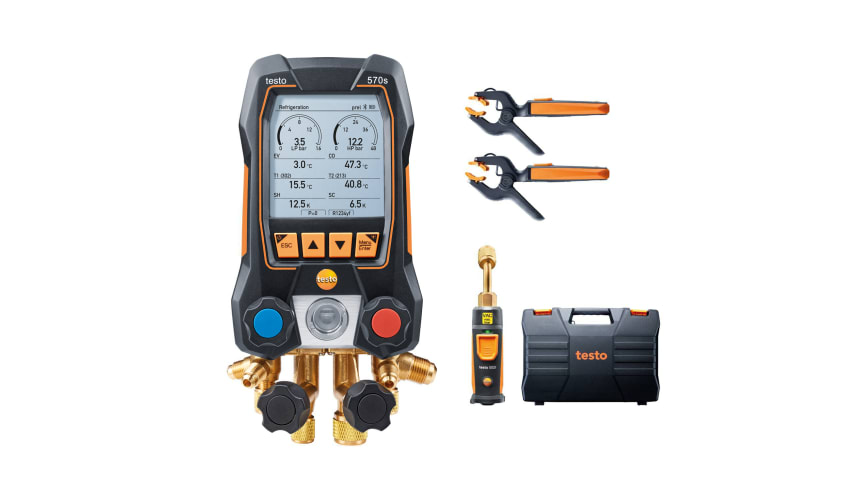

In the kit: testo 570s digital manifold, 2x testo 115i wireless clamp temperature probes, 1x testo 552i wireless vacuum probe and case

: 0564 5701

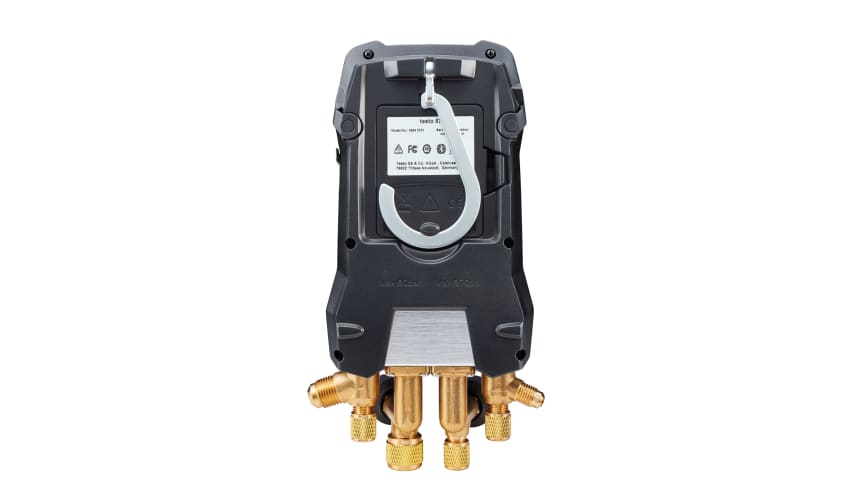

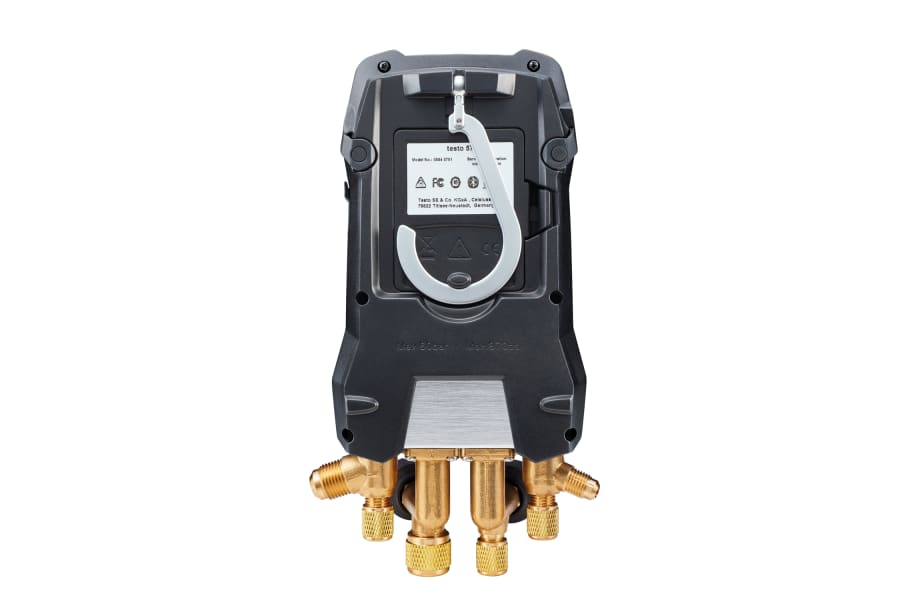

testo 570s - Digital manifold with 4-way valve block, Bluetooth and intelligent error analysis

40 refrigerants are stored in the instrument

: 0560 2115 02

testo 115i - Clamp thermometer operated via smartphone

Convenient temperature measurement on refrigeration, air conditioning and heating systems – thanks to wireless connection to your smartphone or tablet

: 0564 2552

testo 552i - App-controlled wireless vacuum probe

Identify vacuum quickly and easily by means of the graphical display in the App or on the digital manifold screen

: 0516 0012

Transport case - for manifolds

Robust case for the secure transport of your equipment

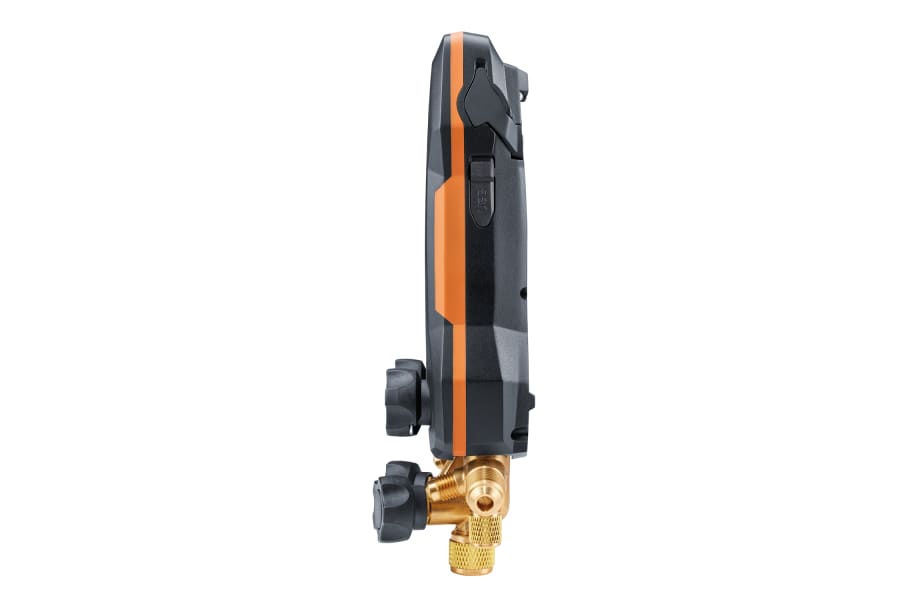

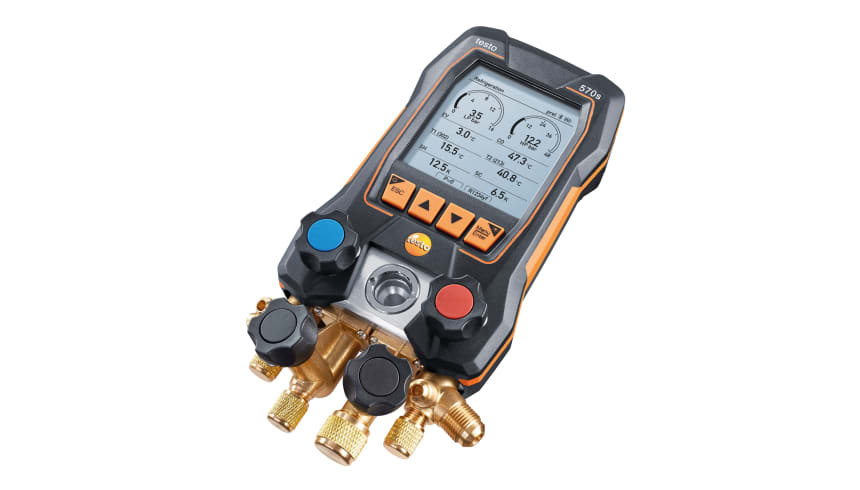

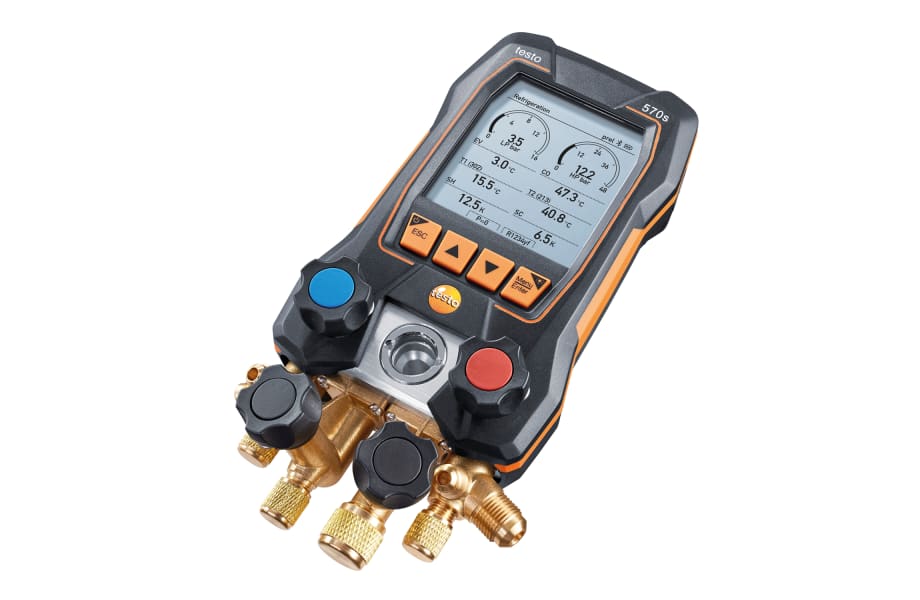

testo 570s - Digital manifold with 4-way valve block, Bluetooth and intelligent error analysis

0564 5701

Temperature

Temperature	Measuring range -50 to +150 °C
	Accuracy ±0.5 °C
	Resolution 0.1 °C

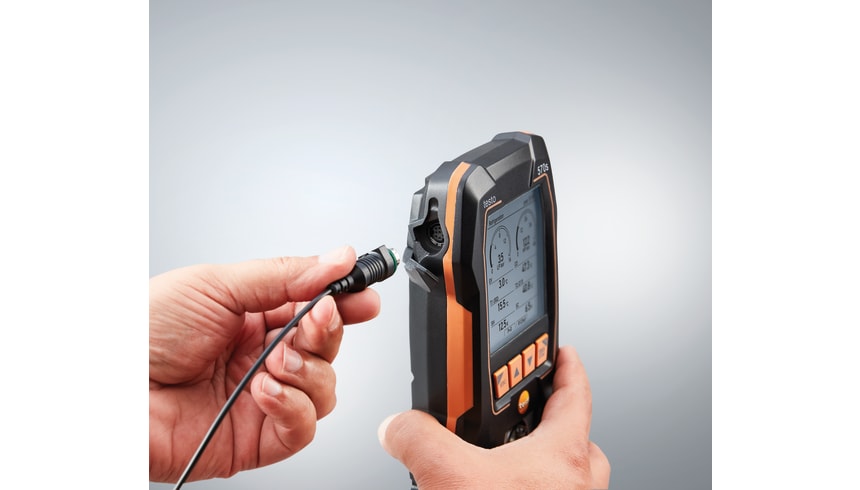

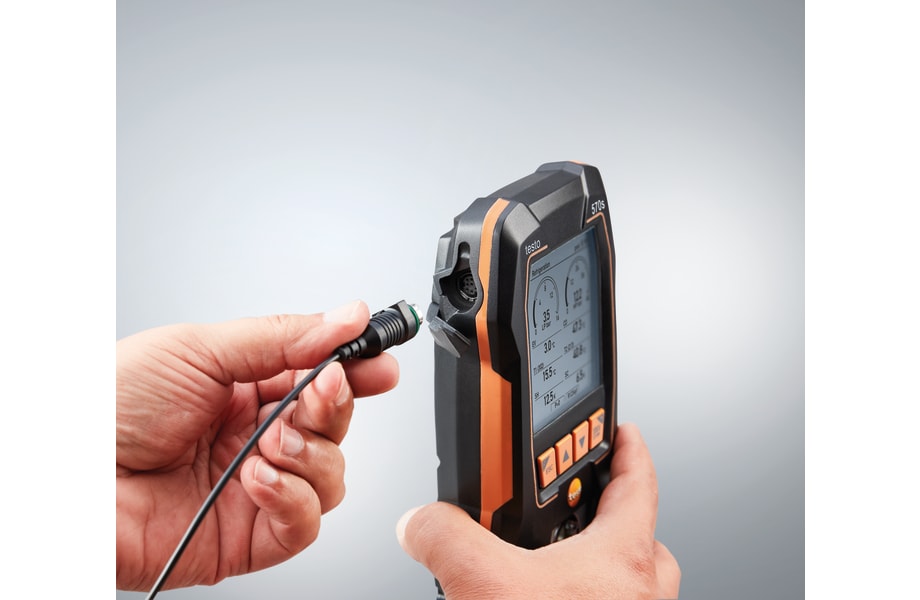

	Probe connection 2 x Plug-in (NTC)

Pressure measurement

Pressure measurement	Measuring range -1 to 60 bar
	Accuracy ±0.25 % fs
	Resolution 0.01 bar
	Probe connection 3 x 7/16" – UNF + 1 x 5/8'' – UNF
	Overload rel. (low pressure) 65 bar
	Overload rel. (high pressure) 65 bar

General technical data

General technical data	Weight 1.3 kg
	Dimensions 229 x 112.5 x 71 mm
	Operating temperature -20 to +50 °C
	Protection class IP54
	System requirements requires iOS 11.0 or newer; requires Android 6.0 or newer; requires mobile end device with Bluetooth 4.0
	Auto-off instrument 10 min

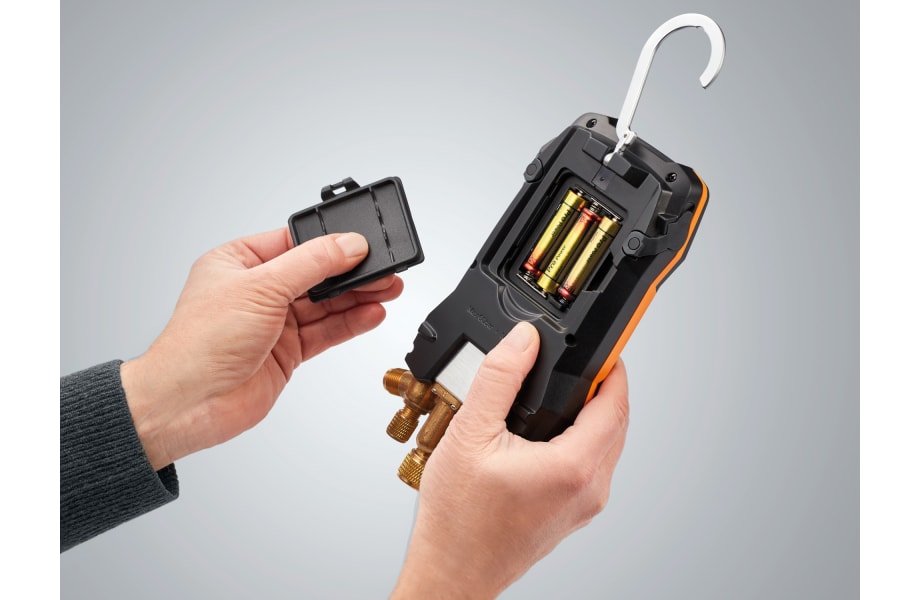

	Battery life With built-in rechargeable battery:; ≥220 h without Bluetooth®, without illumination; ≥120 h with Bluetooth® and illumination; With 3 AA batteries:; ≥145 h without Bluetooth®, without illumination; ≥75 h with Bluetooth® and illumination

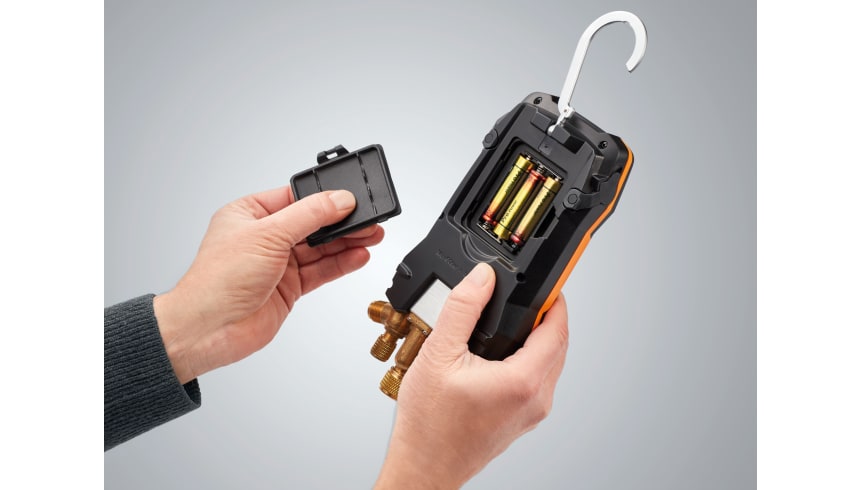

	Battery type Built-in rechargeable battery: LI batttery 18650; Replaceable battery: 3 alkaline batteries AA
	Radio range 150 m
	Storage temperature -20 to +60 °C

testo 115i - Clamp thermometer operated via smartphone

0560 2115 02

Temperature - NTC

Temperature - NTC	Measuring range -40 to +150 °C
	Accuracy ±1.3 °C (-20 to +85 °C)
	Resolution 0.1 °C

General technical data

General technical data	Weight 127.4 g
	Dimensions 183 x 90 x 30 mm
	Operating temperature -20 to +50 °C
	Product-/housing material Plastic
	System requirements requires iOS 13.0 or newer; requires Android 8.0 or newer; requires mobile end device with Bluetooth 4.0
	Product colour black/orange
	Battery life 150 h
	Battery type 3 AAA micro batteries
	Data transfer Bluetooth®
	Radio range 100 m
	Refrigerant A2L / A3 compatibel
	Storage temperature -20 to +60 °C

testo 552i - App-controlled wireless vacuum probe

0564 2552

Absolute Pressure

Absolute Pressure	Measuring range 0 to 26.66 mbar / 0 to 20000 micron
	Accuracy ±(1 ±10 micron + 10 % of mv (100 to 1000 micron)
	Resolution 100 micron (2000 to 5000 micron) / 1 micron (0 to 1000 micron) / 10 micron (1000 to 2000 micron) /
	Overload absolute: 6.0 bar / 87 psi (relative: 5.0 bar / 72 psi)

General technical data

General technical data	Weight 142 g
	Dimensions 150 x 32 x 31 mm (LxWxH)
	Operating temperature -10 to +50 °C
	Protection class IP54
	System requirements requires iOS 13.0 or newer; requires Android 8.0 or newer; requires mobile end device with Bluetooth 4.2
	Product colour black/orange
	Auto-off 10 min*
	Battery type 3 AAA micro batteries
	Battery life 39 h
	Connection 7/16“ UNF
	Interface Bluetooth® 4.2
	Storage temperature -20 to +50 °C
* when not connected via Bluetooth

Transport case - for manifolds

0516 0012

General technical data

General technical data	Weight 1200 g
	Dimensions 455 x 320 x 108 mm
	Product colour Black

testo 570s digital 4-way manifold with lithium-ion rechargeable battery
2x testo 115i wireless clamp thermometers
1x testo 552i wireless vacuum probe
Transport case
testo Smart App (free download)
Instruction manuals
